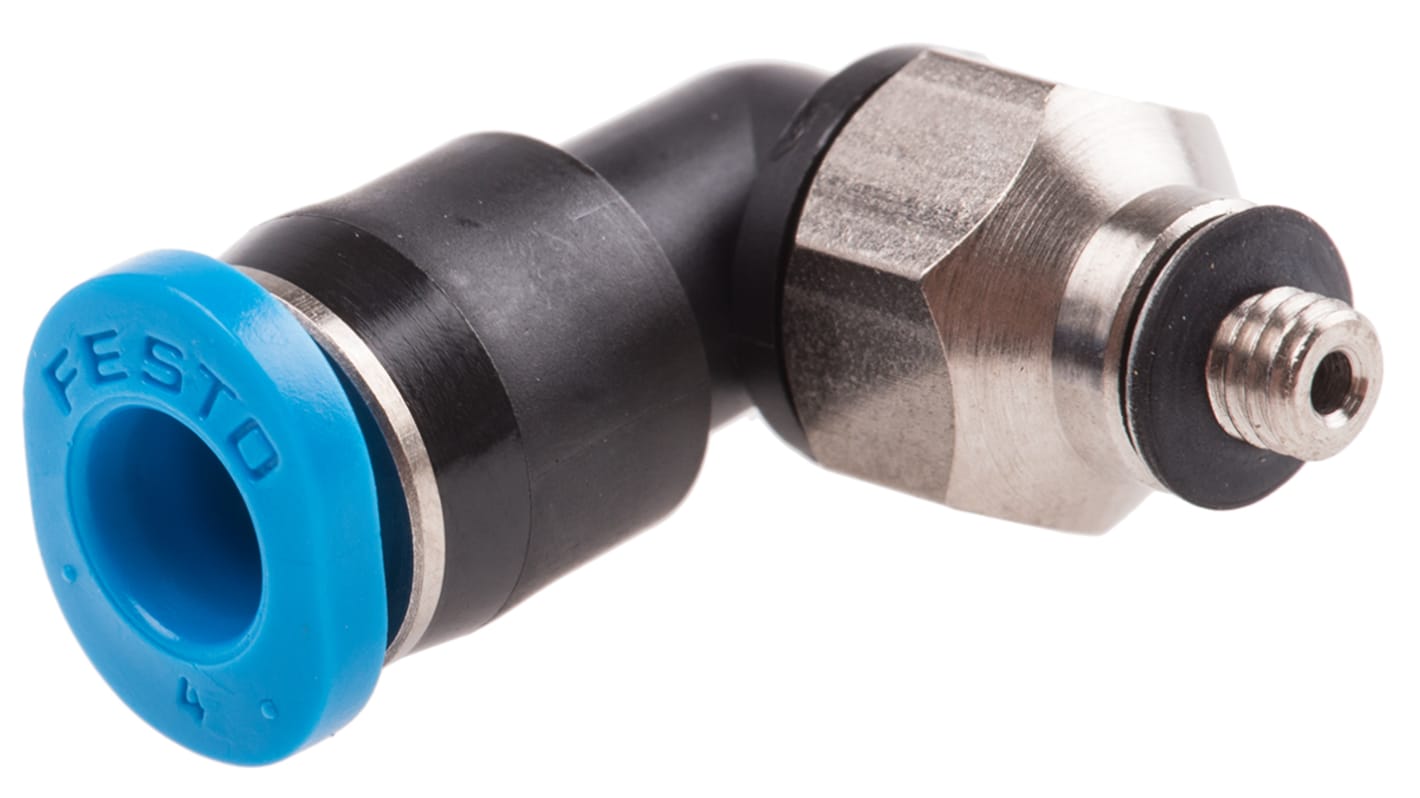

Festo QSML Series, 153332 Nickel Plated Brass Pneumatic Fitting, Male, M3, Metric, 4mm Push-in
- RS Stock No.:
- 121-6021
- Distrelec Article No.:
- 304-29-536
- Mfr. Part No.:
- QSML-M3-4
- Brand:
- Festo
Bulk discount available
View bulk pricing optionsSubtotal (1 bag of 10 units)*
£52.80
(exc. VAT)
£63.36
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 45 unit(s) shipping from 12 October 2026
- Plus 30 unit(s) shipping from 12 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 - 4 | £52.80 | £5.28 |
| 5 - 9 | £50.70 | £5.07 |
| 10 + | £48.58 | £4.858 |
*price indicative
- RS Stock No.:
- 121-6021
- Distrelec Article No.:
- 304-29-536
- Mfr. Part No.:
- QSML-M3-4
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Fitting | |
| Connection Thread Size | M3 | |
| Connection Size A | M3 Male | |
| Connection Thread Standard | Metric | |
| Connection Type | Threaded-to-Tube | |
| Tube Connection Type | Push-in | |
| Tube Connection Size | 4mm | |
| Connection Size B | Push In 4 mm | |
| Series | QSML | |
| Connection Gender | Male | |
| Material | Nickel Plated Brass | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | RoHS | |
| Chemical Resistant | Yes | |
| Angle | 90° | |
| Food Grade | No | |
| Maximum Operating Pressure | 14 bar | |
| Finish | Nickel | |
| Model Number | 153332 | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Fitting | ||
Connection Thread Size M3 | ||
Connection Size A M3 Male | ||
Connection Thread Standard Metric | ||
Connection Type Threaded-to-Tube | ||
Tube Connection Type Push-in | ||
Tube Connection Size 4mm | ||
Connection Size B Push In 4 mm | ||
Series QSML | ||
Connection Gender Male | ||
Material Nickel Plated Brass | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals RoHS | ||
Chemical Resistant Yes | ||
Angle 90° | ||
Food Grade No | ||
Maximum Operating Pressure 14 bar | ||
Finish Nickel | ||
Model Number 153332 | ||
- COO (Country of Origin):
- JP
Festo QSML Series Pneumatic Fitting, 4mm Tube Connection size, 90° Angle - QSML-M3-4, Numeric Part Number: 153332
This pneumatic fitting provides a Compact angled connection between a male metric thread and a push-in tube, designed for use in industrial automation and control systems. It offers a right-angle configuration to redirect airflow within confined assemblies while maintaining a nickel finish for environmental exposure in typical operating environments.
Features & Benefits
• 90° orientation enabling tight routing in Compact assemblies
• M3 male metric thread for secure threaded installations
• Push-in 4mm tube Interface for Rapid tube connection
• Polybutylene terephthalate body for chemical resistance trade-offs
• Rated to 80°C supporting elevated-temperature circuits
• RoHS conformity simplifying material selection for assemblies
• M3 male metric thread for secure threaded installations
• Push-in 4mm tube Interface for Rapid tube connection
• Polybutylene terephthalate body for chemical resistance trade-offs
• Rated to 80°C supporting elevated-temperature circuits
• RoHS conformity simplifying material selection for assemblies
**Applications**
• Suitable for Compact pneumatic valve manifolds in automation
• Ideal for sensor supply lines in electronics enclosures
• Used with Compact actuators requiring right-angle tubing
• Can be used for Air distribution in mechanical subassemblies
• Suitable for pneumatic tooling in confined manufacturing cells
• Ideal for sensor supply lines in electronics enclosures
• Used with Compact actuators requiring right-angle tubing
• Can be used for Air distribution in mechanical subassemblies
• Suitable for pneumatic tooling in confined manufacturing cells
What materials contact the medium inside the fitting?
The internal body is manufactured from polybutylene terephthalate, providing a thermoplastic pathway for the pneumatic medium.
How is the tubing secured and released during maintenance?
The tube uses a push-in connection type that locks a 4mm tube by axial insertion and permits removal when the release collar is depressed.
What surface finish interacts with external fittings and brackets?
The external surfaces are nickel-plated, which offers a Durable metallic finish for threaded connections and mounting interfaces.
What environmental temperature range can it withstand during operation?
The component is specified for continuous operation up to 80°C, suitable for elevated-temperature pneumatic circuits.
