Festo QS Series Straight Threaded Adaptor, G 1/2 Female to Push In 12 mm, Threaded-to-Tube Connection Style, 190653
- RS Stock No.:
- 121-5613
- Mfr. Part No.:
- QSF-1/2-12-B
- Brand:
- Festo
Bulk discount available
Subtotal (1 unit)*
£9.91
(exc. VAT)
£11.89
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 109 unit(s) ready to ship
- Plus 106 unit(s) ready to ship from another location
- Plus 12 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £9.91 |
5 - 9 | £9.51 |
10 + | £9.12 |
*price indicative
- RS Stock No.:
- 121-5613
- Mfr. Part No.:
- QSF-1/2-12-B
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Connector A | G 1/2 Female | |
Connector B | Push In 12 mm | |
Pneumatic Fitting Type | Straight Threaded Adaptor | |
Connection Style | Threaded-to-Tube | |
Threaded Connection | G 1/2 Female | |
Manufacturer Series | QS | |
Model Number p | 190653 | |
Number of Inlet Ports | 1 | |
Number of Outlet Ports | 1 | |
Thread Material | Nickel Plated Brass | |
Chemical Resistant | No | |
Finish | Nickel Plated | |
Maximum Operating Temperature | +80°C | |
Maximum Operating Pressure | 14 bar | |
Minimum Operating Temperature | -10°C | |
Food Grade | No | |
Mounting Type | Inline | |
Body Material | Brass | |
Angle | Straight | |
Select all | ||
---|---|---|
Brand Festo | ||
Connector A G 1/2 Female | ||
Connector B Push In 12 mm | ||
Pneumatic Fitting Type Straight Threaded Adaptor | ||
Connection Style Threaded-to-Tube | ||
Threaded Connection G 1/2 Female | ||
Manufacturer Series QS | ||
Model Number p 190653 | ||
Number of Inlet Ports 1 | ||
Number of Outlet Ports 1 | ||
Thread Material Nickel Plated Brass | ||
Chemical Resistant No | ||
Finish Nickel Plated | ||
Maximum Operating Temperature +80°C | ||
Maximum Operating Pressure 14 bar | ||
Minimum Operating Temperature -10°C | ||
Food Grade No | ||
Mounting Type Inline | ||
Body Material Brass | ||
Angle Straight | ||
- COO (Country of Origin):
- TW

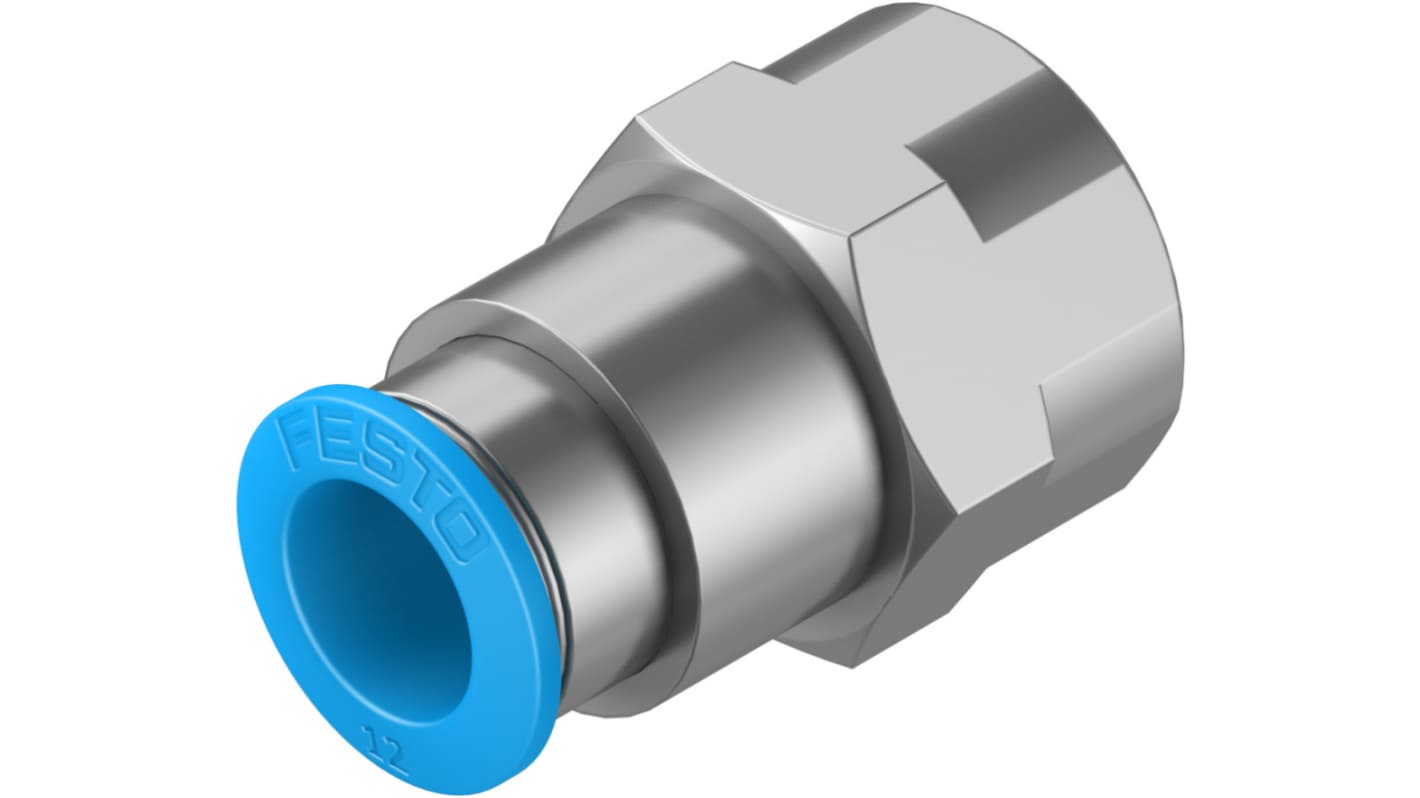

Festo Series QS Pneumatic Fitting, Straight Threaded Adaptor, Brass Body - QSF-1/2-12-B, Numeric Part Number: 190653
This pneumatic fitting is designed for efficient connection in various applications. It features a G 1/2 female connection on one end and a push-in connector for 12mm tubing on the other. Made from nickel-plated brass, it has a straight threaded adaptor design that ensures robust performance in various environments. Its compact dimensions and inline mounting style facilitate streamlined assembly in pneumatic systems.
Features & Benefits
• Nickel-plated brass construction offers durability and resistance to corrosion
• Push-in connector simplifies installation and maintenance
• Straight threaded adaptor provides versatile connection options
• Lightweight design (56g) helps to reduce system load
• Push-in connector simplifies installation and maintenance
• Straight threaded adaptor provides versatile connection options
• Lightweight design (56g) helps to reduce system load
Applications
• Connecting pneumatic tubing in machinery
• Automation systems requiring dependable connections
• Compressed air supply lines across different industries
• Equipment needing high-pressure fittings
• Automation systems requiring dependable connections
• Compressed air supply lines across different industries
• Equipment needing high-pressure fittings
Can it be used in low-temperature environments?
Yes, it operates well from -10°C to +80°C.
Will it withstand high-pressure applications?
Yes, it supports pressure up to 14 bar.
Is it suitable for use with lubrication?
Yes, it can operate with oil lubrication.
Can it connect to different tubing sizes?
No, it is specifically for 12mm tubing connections.
