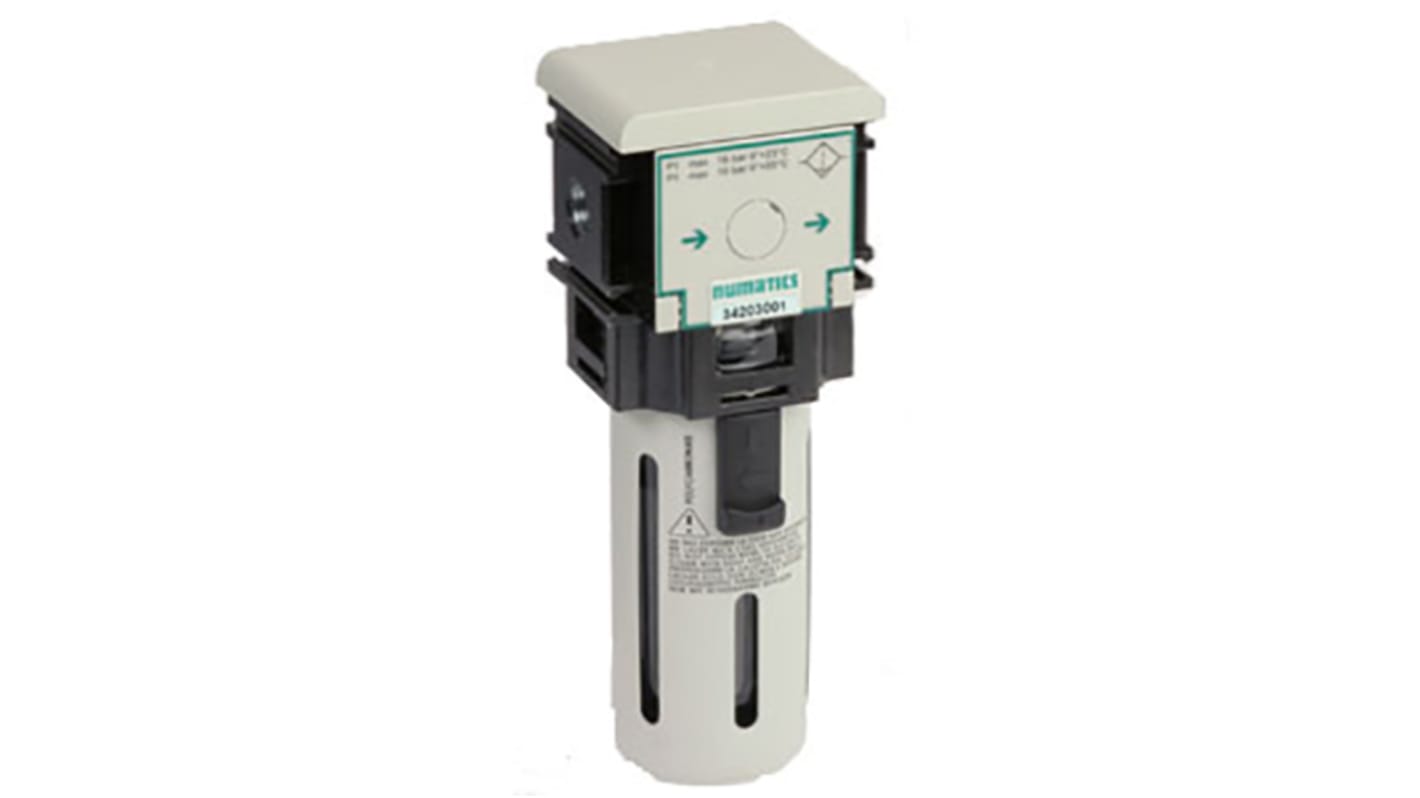

EMERSON ? ASCO 342 series 25μm G 1/8 1.2bar to 8bar Pneumatic Filter 890L/min max with Semi Automatic drain
- RS Stock No.:
- 478-4128
- Mfr. Part No.:
- 34225133
- Brand:
- Asco
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£42.06
(exc. VAT)
£50.47
(inc. VAT)
- RS Stock No.:
- 478-4128
- Mfr. Part No.:
- 34225133
- Brand:
- Asco
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Asco | |
| Filtration Size | 25µm | |
| Port Connection | G 1/8 | |
| Drain Type | Semi Automatic | |
| Manufacturer Series | 342 | |
| Maximum Flow Rate | 890L/min | |
| Minimum Operating Pressure | 1.2bar | |
| Maximum Operating Pressure | 8bar | |
| Maximum Operating Temperature | +50°C | |
| Port Connection Thread Standard | G | |
| Minimum Operating Temperature | 0°C | |
| Port Connection Thread Size | 1/8 in | |
Select all | ||
|---|---|---|
Brand Asco | ||
Filtration Size 25µm | ||
Port Connection G 1/8 | ||
Drain Type Semi Automatic | ||
Manufacturer Series 342 | ||
Maximum Flow Rate 890L/min | ||
Minimum Operating Pressure 1.2bar | ||
Maximum Operating Pressure 8bar | ||
Maximum Operating Temperature +50°C | ||
Port Connection Thread Standard G | ||
Minimum Operating Temperature 0°C | ||
Port Connection Thread Size 1/8 in | ||
- COO (Country of Origin):
- FR
Modulair FRL 105 series
Range of modular elements for air treatment from G1/8" → G 1/4"
Filters with polycarbonate tank, without protector and with a filtration threshold of 25 μm.
Regulators with 0.5 → 8 bar regulator button.
Filter regulator and filter regulator lubricator assemblies are also available.
Filters with polycarbonate tank, without protector and with a filtration threshold of 25 μm.
Regulators with 0.5 → 8 bar regulator button.
Filter regulator and filter regulator lubricator assemblies are also available.
