Festo LFMB series 1 μm 3/4 in G 12 bar Pneumatic Filter 2220 L/min max with Automatic drain
- RS Stock No.:
- 289-1676
- Mfr. Part No.:
- LFMB-3/4-D-MAXI-DA-A
- Brand:
- Festo
Subtotal (1 unit)*
£439.73
(exc. VAT)
£527.68
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £439.73 |
*price indicative
- RS Stock No.:
- 289-1676
- Mfr. Part No.:
- LFMB-3/4-D-MAXI-DA-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Filter | |
| Filtration Size | 1μm | |
| Port Size | 3/4 in G | |
| Drain Type | Automatic | |
| Connection Thread Standard | G | |
| Series | LFMB | |
| Maximum Flow Rate | 2220L/min | |
| Maximum Operating Pressure | 12 bar | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | No | |
| Filter Type | Fibre | |
| Bowl Material | Polycarbonate | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Filter | ||
Filtration Size 1μm | ||
Port Size 3/4 in G | ||
Drain Type Automatic | ||
Connection Thread Standard G | ||
Series LFMB | ||
Maximum Flow Rate 2220L/min | ||
Maximum Operating Pressure 12 bar | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals No | ||
Filter Type Fibre | ||
Bowl Material Polycarbonate | ||

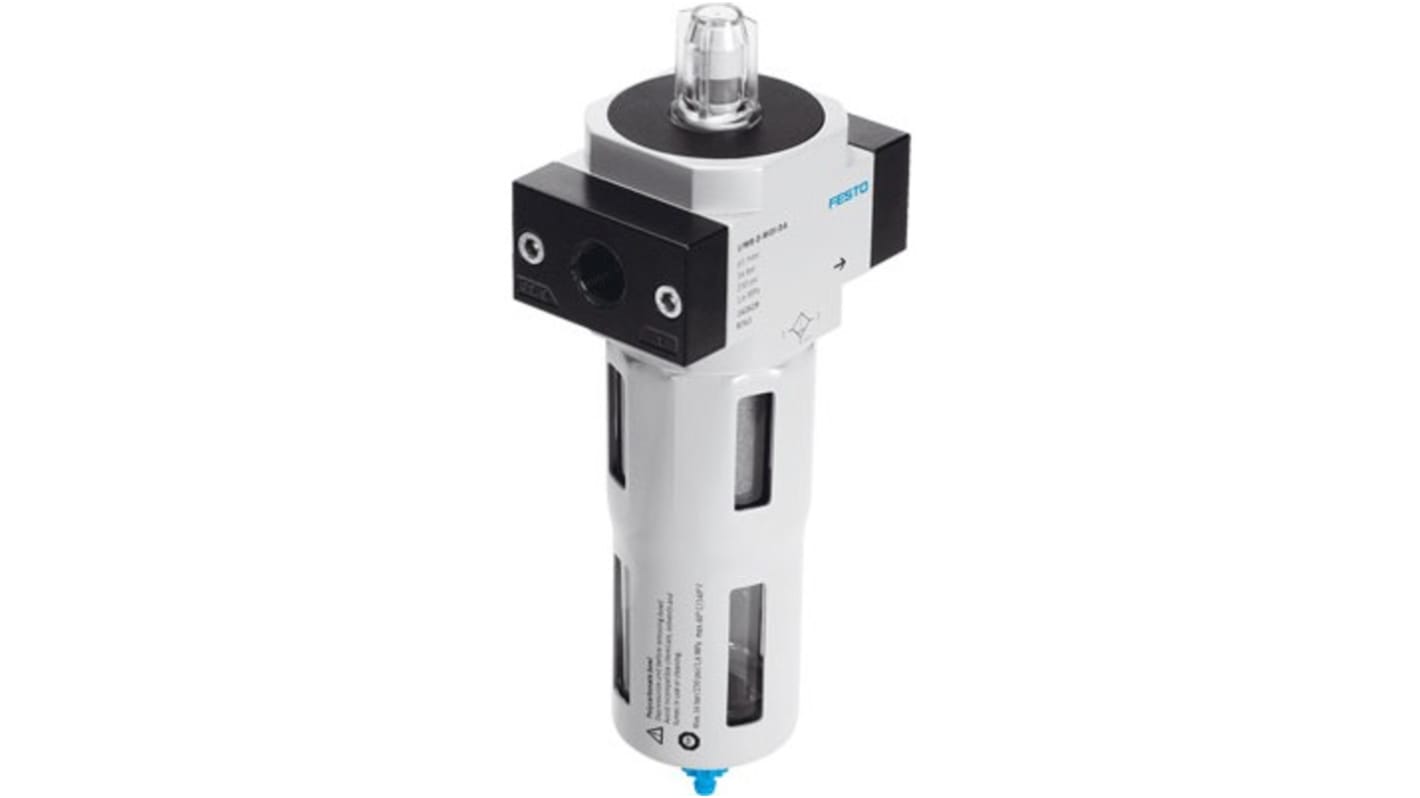

The Festo Fine filter offers a filtration grade of 1 μm and fully automatic condensate drain, ensuring high quality air output for various applications.
Equipped with a corrosion resistance class of CRC 2
Offers a visual display
Can handle an operating pressure range of 2 bar to 12 bar
Compliant with RoHS standards
