Festo MS series 1μm G 1 2bar to 12 bar Pneumatic Filter 10000L/min max with Automatic, Manual drain
- RS Stock No.:
- 288-2761
- Mfr. Part No.:
- MS9-LFM-1-BUV-HF
- Brand:
- Festo
Subtotal (1 unit)*
£530.63
(exc. VAT)
£636.76
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £530.63 |
*price indicative
- RS Stock No.:
- 288-2761
- Mfr. Part No.:
- MS9-LFM-1-BUV-HF
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Filtration Size | 1µm | |
| Port Connection | G 1 | |
| Drain Type | Automatic, Manual | |
| Manufacturer Series | MS | |
| Maximum Flow Rate | 10000L/min | |
| Minimum Operating Pressure | 2bar | |
| Maximum Operating Pressure | 12 bar | |
| Maximum Operating Temperature | +60°C | |
| Minimum Operating Temperature | -10°C | |
| Bowl Material | Aluminium | |
Select all | ||
|---|---|---|
Brand Festo | ||
Filtration Size 1µm | ||
Port Connection G 1 | ||
Drain Type Automatic, Manual | ||
Manufacturer Series MS | ||
Maximum Flow Rate 10000L/min | ||
Minimum Operating Pressure 2bar | ||
Maximum Operating Pressure 12 bar | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -10°C | ||
Bowl Material Aluminium | ||
- COO (Country of Origin):
- HU

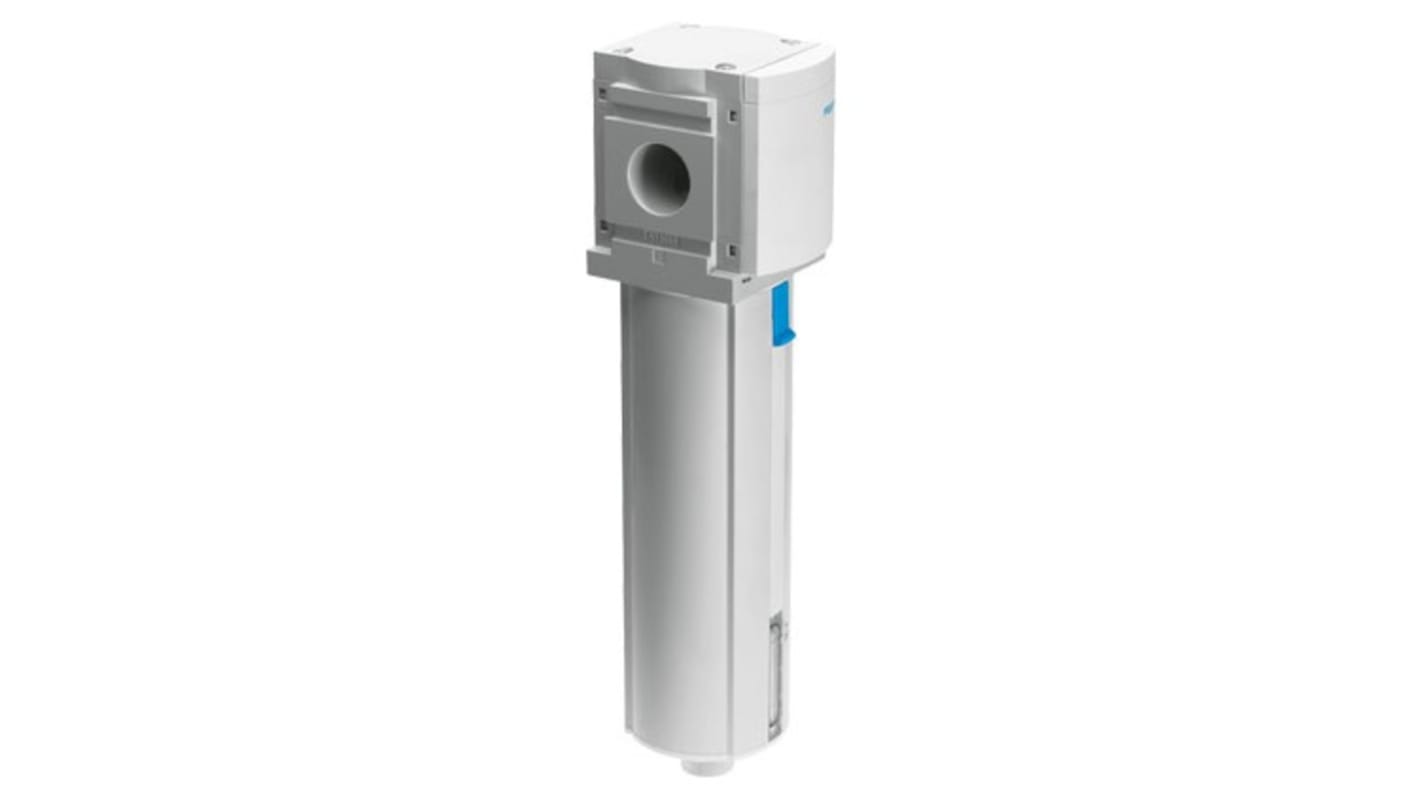

Festo Series MS Pneumatic Filter, 1 μm Filtration size, 12 Bar Maximum Operating Pressure - MS9-LFM-1-BUV-HF, Numeric Part Number: 553044
This pneumatic filter is an essential component for any air filtration system, effectively removing contaminants to ensure clean and efficient operation. Designed for high performance, the filter operates within a pressure range of 2 bar to 12 bar and can manage maximum flow rates of up to 10000 L/min. With an aluminium bowl, the unit is durable and resistant to moderate corrosion, making it suitable for various industrial applications.
Features & Benefits
• Exceptional filtration efficiency of 99.99% for clean air
• Automatic and manual drain options enhance usability
• Low residual oil content of 0.5 mg/m³ ensures air purity
• Compact design allows for convenient in-line installation
• Automatic and manual drain options enhance usability
• Low residual oil content of 0.5 mg/m³ ensures air purity
• Compact design allows for convenient in-line installation
Applications
• Used for maintaining air quality in pneumatic systems
• Suitable for process automation that relies on compressed air
• Ideal for industries where moisture and contaminants are critical
• Suitable for process automation that relies on compressed air
• Ideal for industries where moisture and contaminants are critical
What type of materials are used in the construction?
The housing is made from die-cast aluminium, while the bowl is a wrought aluminium alloy. The filter media consists of borosilicate fibre, providing high efficiency for fine particles.
How does the filter manage condensate?
It features a fully automatic condensate drain system, alongside a manual option, allowing for flexible operation depending on environmental needs.
What is the maximum capacity of condensate the unit can handle?
It can manage a maximum condensate volume of 225ml, ensuring effective moisture removal without compromising performance.
Can this filter be used in varying temperatures?
Yes, it operates effectively within an ambient temperature range of -10°C to +60°C, making it versatile for different industrial settings.
