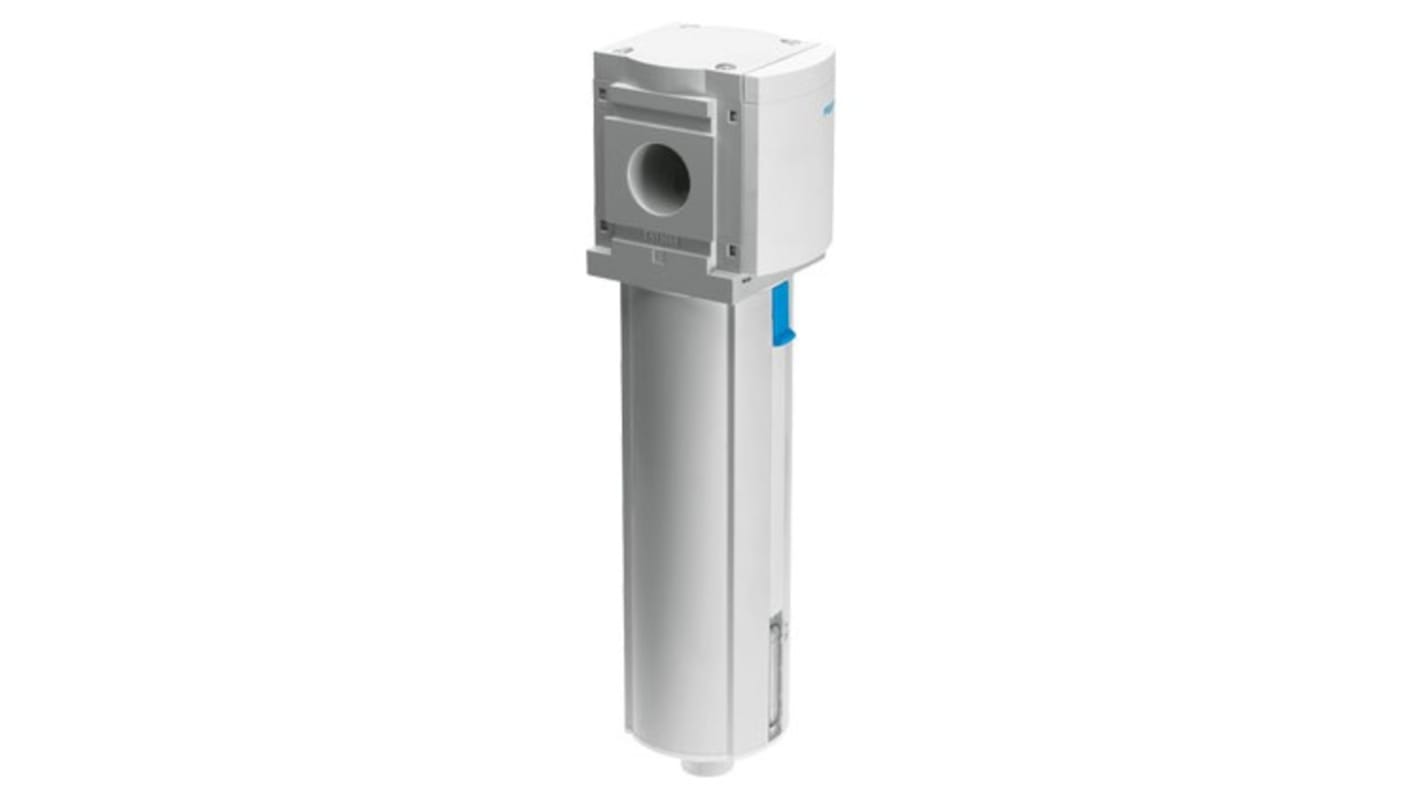

Festo MS series 0.01μm G 1 0bar to 20 bar Pneumatic Filter 6500L/min max with Manual drain
- RS Stock No.:
- 288-2748
- Mfr. Part No.:
- MS9-LFM-1-AUM
- Brand:
- Festo
Subtotal (1 unit)*
£429.94
(exc. VAT)
£515.93
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £429.94 |
*price indicative
- RS Stock No.:
- 288-2748
- Mfr. Part No.:
- MS9-LFM-1-AUM
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Filtration Size | 0.01µm | |
| Port Connection | G 1 | |
| Drain Type | Manual | |
| Manufacturer Series | MS | |
| Maximum Flow Rate | 6500L/min | |
| Minimum Operating Pressure | 0bar | |
| Maximum Operating Pressure | 20 bar | |
Select all | ||
|---|---|---|
Brand Festo | ||
Filtration Size 0.01µm | ||
Port Connection G 1 | ||
Drain Type Manual | ||
Manufacturer Series MS | ||
Maximum Flow Rate 6500L/min | ||
Minimum Operating Pressure 0bar | ||
Maximum Operating Pressure 20 bar | ||
- COO (Country of Origin):
- HU
The Festo Micro filter is designed for efficient filtration of compressed air, boasting a Grade of filtration of 0.01 μm and a high filter efficiency of 99.9999%. It is suitable for a wide range of operating conditions and provides clean air output accord
Grade of filtration of 0.01 μm for high-quality air filtration
Filter efficiency of 99.9999% ensures clean air output
Corrosion resistance class CRC 2 for durability in various environments
Mounting position flexibility with vertical installation up to +/-5°
Wide temperature range of -10 °C to 60 °C for versatile applications
Filter efficiency of 99.9999% ensures clean air output
Corrosion resistance class CRC 2 for durability in various environments
Mounting position flexibility with vertical installation up to +/-5°
Wide temperature range of -10 °C to 60 °C for versatile applications
