Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SMC
	Filtration Size	5μm
	Product Type	Pneumatic Filter
	Port Size	3/4 in
	Connection Thread Standard	G
	Series	AF50-D
	Maximum Flow Rate	14310L/min
	Maximum Operating Pressure	10 bar
	Minimum Operating Temperature	-5°C
	Maximum Operating Temperature	60°C
	Standards/Approvals	No
	Bowl Material	Polycarbonate
	Filter Type	Air Filter

	Select all
	Brand SMC
	Filtration Size 5μm
	Product Type Pneumatic Filter
	Port Size 3/4 in
	Connection Thread Standard G
	Series AF50-D
	Maximum Flow Rate 14310L/min
	Maximum Operating Pressure 10 bar
	Minimum Operating Temperature -5°C
	Maximum Operating Temperature 60°C
	Standards/Approvals No
	Bowl Material Polycarbonate
	Filter Type Air Filter

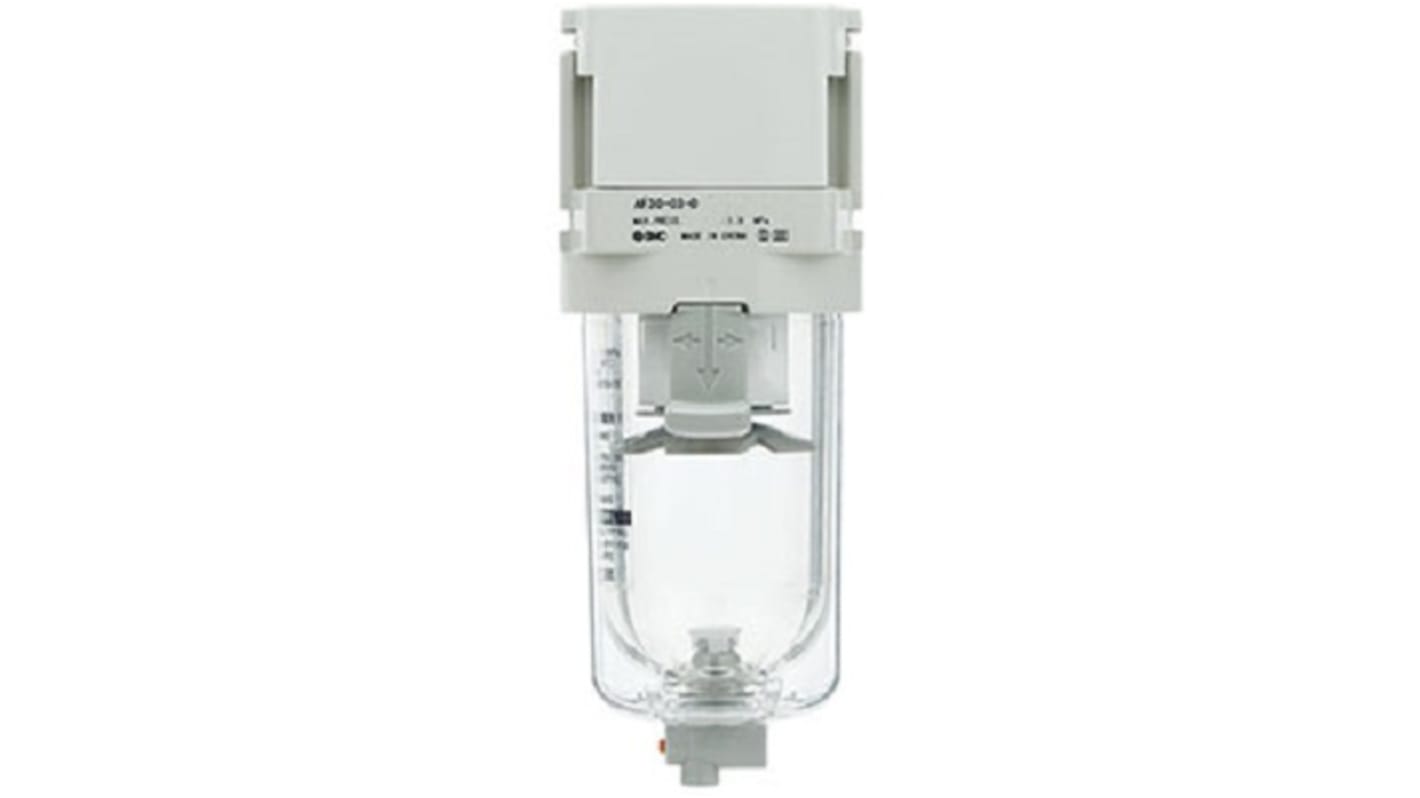

SMC AF50-D Series Pneumatic Filter, 5 μm Filtration size, 3/4in Port size - AF50-F06-D

This pneumatic filter is designed to remove particulates from compressed Air supplies in industrial control and automation systems. It provides a medium-grade separation of solids down to 5μm while maintaining high flow capacity and stable operation across typical plant temperature ranges. The unit is suited to inline mounting and accepts standard G-thread connections for integration with existing pneumatic networks.

Features & Benefits

• 5μm element delivers cleaner Air for sensitive actuators and valves
• Supports flow up to 14310L/min for high-throughput systems
• Rated for 10 bar to handle elevated supply pressures safely
• Polycarbonate replacement bowl offers Visual inspection of contamination
• Operating range from -5°C to 60°C enables diverse site use
• 3/4in port size simplifies connection to commonly used piping

Applications

• Suitable for instrument Air supplies feeding valves and cylinders
• Ideal for pneumatic control panels in automation lines
• used with Air-driven tools requiring particulate-free Air
• Can be used for pre-filtration ahead of lubricators or regulators

What sort of drain arrangement is available for routine maintenance?

The product comes with a float-type drain option enabling automatic condensate removal

a manual variant is also available where automatic drainage is not desired.

How does the bowl material affect maintenance routines?

The transparent polycarbonate bowl permits Visual monitoring of collected debris, reducing the need for frequent disassembly and allowing timely element replacement.

What pressure extremes can the unit withstand during system testing?

The component has a maximum operating pressure of 10 bar and a proof pressure rating of 15 bar for short-term pressure verification.

Is the product suitable for environments with low inlet pressures?

Yes, it functions down to a minimum operating pressure of 0.05MPa, making it compatible with lower-pressure pneumatic supplies.

Can the filter cope with elevated ambient temperatures on plant floors?

It is rated for ambient temperatures up to 60°C provided there is no freezing, allowing use in many warm industrial settings.

SMC AF50-D series 5 μm 3/4 in 10 bar Pneumatic Filter 14310L/min max
