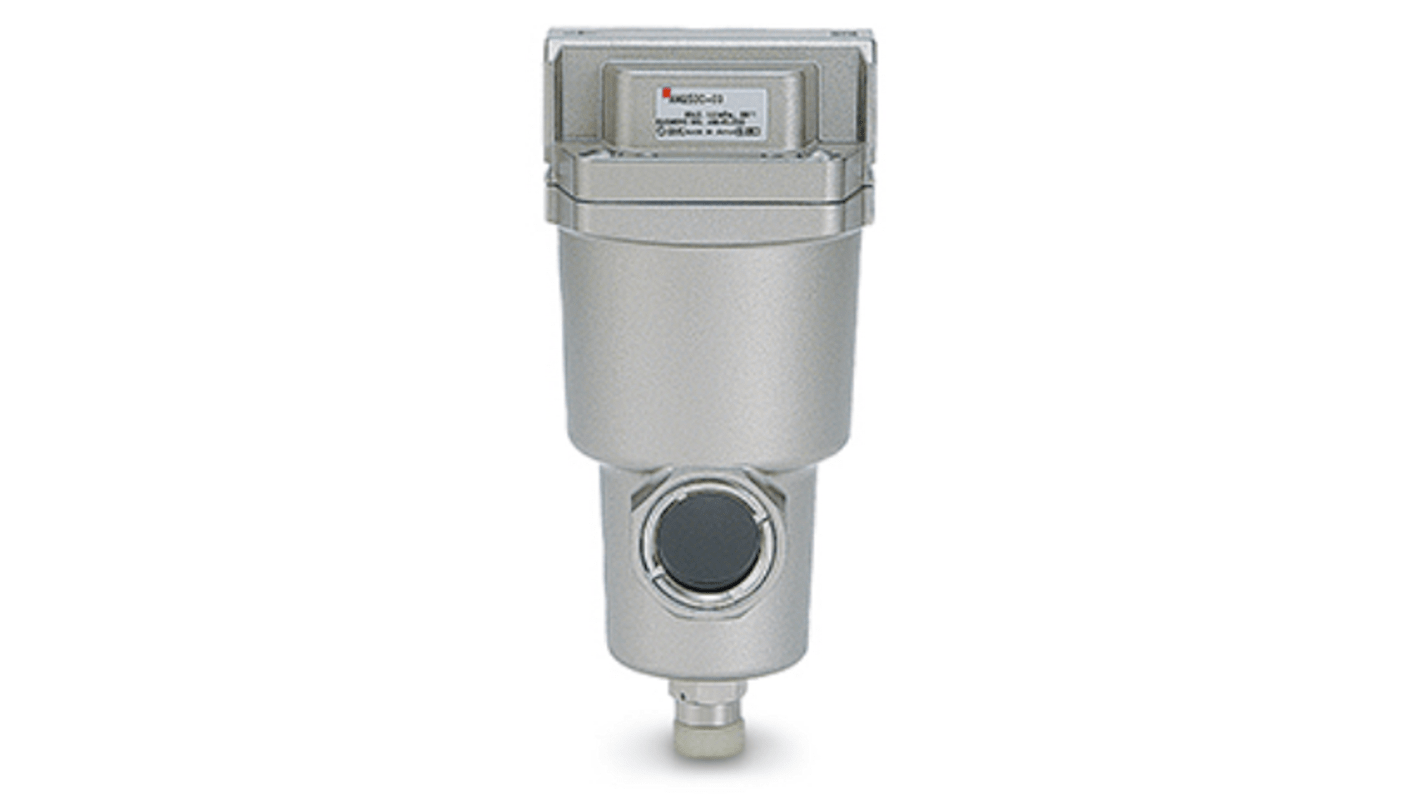

SMC AFF series 3μm G 2 0.5bar to 10 bar Pneumatic Filter 12000L/min max with Auto drain
- RS Stock No.:
- 255-2374
- Mfr. Part No.:
- AFF75B-20
- Brand:
- SMC
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£894.26
(exc. VAT)
£1,073.11
(inc. VAT)
- RS Stock No.:
- 255-2374
- Mfr. Part No.:
- AFF75B-20
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Filtration Size | 3µm | |
| Port Connection | G 2 | |
| Drain Type | Auto | |
| Manufacturer Series | AFF | |
| Maximum Flow Rate | 12000L/min | |
| Minimum Operating Pressure | 0.5bar | |
| Maximum Operating Pressure | 10 bar | |
Select all | ||
|---|---|---|
Brand SMC | ||
Filtration Size 3µm | ||
Port Connection G 2 | ||
Drain Type Auto | ||
Manufacturer Series AFF | ||
Maximum Flow Rate 12000L/min | ||
Minimum Operating Pressure 0.5bar | ||
Maximum Operating Pressure 10 bar | ||
- COO (Country of Origin):
- JP
The SMC main line filter removes foreign matter and droplets to protect downstream dryers and extend the life of more precise filters. Units are easily serviced, and dirty elements can be disposed of while handling only the filter bowl.
Particulate filtration, coarse droplet removal
Modular connection capable AFF2C∼22C
Optional element life indicator
Available port sizes 1/8 ∼ 2 (PT, NPT or G)
Nominal filtration rating 1 μm
Modular connection capable AFF2C∼22C
Optional element life indicator
Available port sizes 1/8 ∼ 2 (PT, NPT or G)
Nominal filtration rating 1 μm
