Festo D series 0.01 μm 1/2 in G 12 bar Pneumatic Filter 1120 L/min max with Automatic drain
- RS Stock No.:
- 203-0748
- Mfr. Part No.:
- LFMA-1/2-D-MIDI-A
- Brand:
- Festo
Subtotal (1 unit)*
£234.76
(exc. VAT)
£281.71
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 11 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £234.76 |
*price indicative
- RS Stock No.:
- 203-0748
- Mfr. Part No.:
- LFMA-1/2-D-MIDI-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Filtration Size | 0.01μm | |
| Product Type | Pneumatic Filter | |
| Port Size | 1/2 in G | |
| Drain Type | Automatic | |
| Series | D | |
| Maximum Flow Rate | 1120L/min | |
| Maximum Operating Pressure | 12 bar | |
| Minimum Operating Temperature | 1.5°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | ISO8573-1:2010 (6:8:4), RoHS, ISO8573-1:2010 (1:7:2) | |
| Bowl Material | Polycarbonate | |
| Filter Type | Fibre | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Filtration Size 0.01μm | ||
Product Type Pneumatic Filter | ||
Port Size 1/2 in G | ||
Drain Type Automatic | ||
Series D | ||
Maximum Flow Rate 1120L/min | ||
Maximum Operating Pressure 12 bar | ||
Minimum Operating Temperature 1.5°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals ISO8573-1:2010 (6:8:4), RoHS, ISO8573-1:2010 (1:7:2) | ||
Bowl Material Polycarbonate | ||
Filter Type Fibre | ||

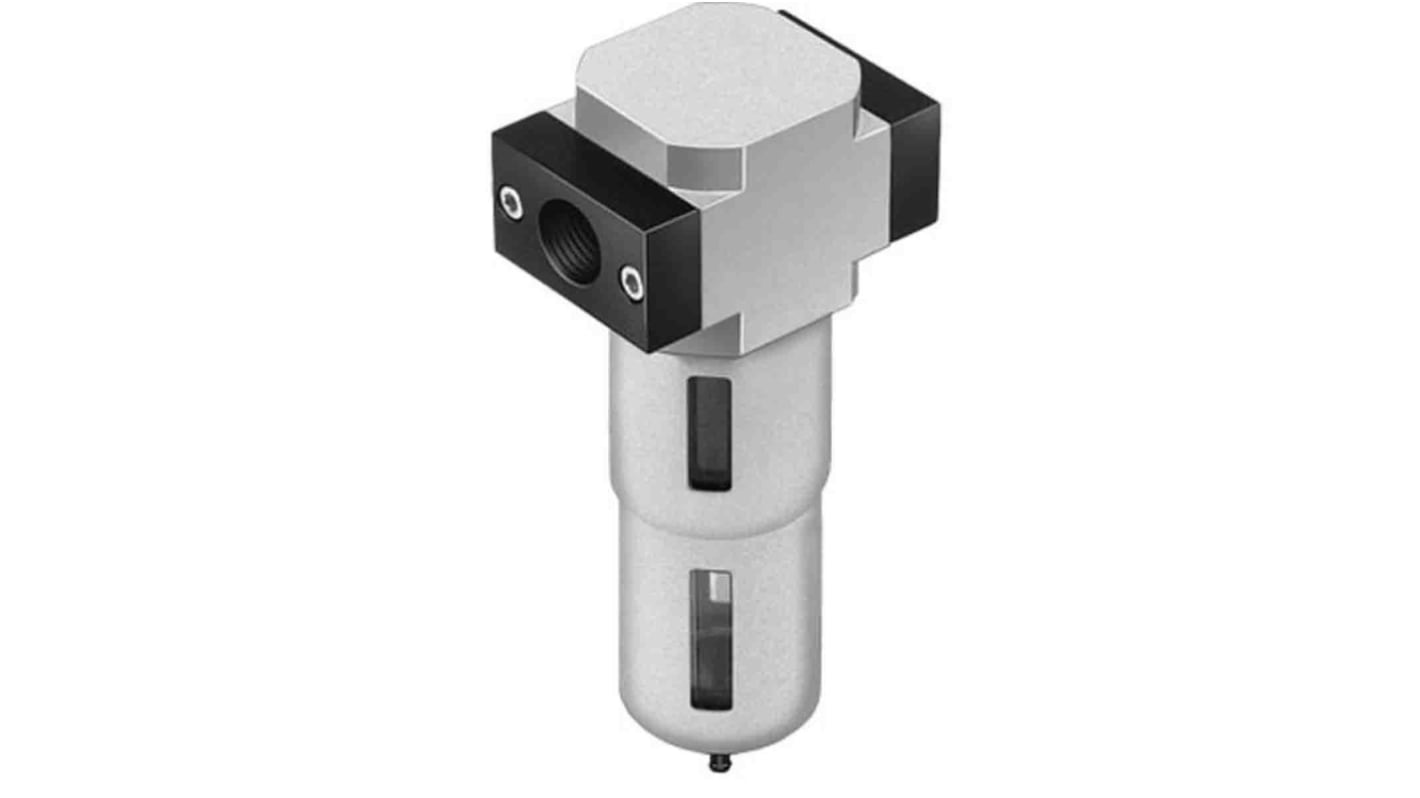

The Festo's D series micro filter without threaded connection plate with FRB threaded pin. 0.01 μm filter cartridge and with metal bowl guard. Its size is midi and fully automatically. Its maximum standard flow rate is 1,120 l/min and has high-efficiency filter for exceptionally clean compressed air.
Ambient temperature -10 to 60 °C
Free of copper and PTFE
2 - moderate corrosion stress
