Festo D series 1 μm 12 bar Pneumatic Filter with Automatic drain
- RS Stock No.:
- 203-0718
- Mfr. Part No.:
- LFMB-D-MIDI-A
- Brand:
- Festo
Subtotal (1 unit)*
£227.00
(exc. VAT)
£272.40
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £227.00 |
*price indicative
- RS Stock No.:
- 203-0718
- Mfr. Part No.:
- LFMB-D-MIDI-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Filtration Size | 1μm | |
| Product Type | Pneumatic Filter | |
| Drain Type | Automatic | |
| Series | D | |
| Maximum Operating Pressure | 12 bar | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS, ISO8573-1:2010 (6:8:4) | |
| Filter Type | Fibre | |
| Bowl Material | Polycarbonate | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Filtration Size 1μm | ||
Product Type Pneumatic Filter | ||
Drain Type Automatic | ||
Series D | ||
Maximum Operating Pressure 12 bar | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS, ISO8573-1:2010 (6:8:4) | ||
Filter Type Fibre | ||
Bowl Material Polycarbonate | ||

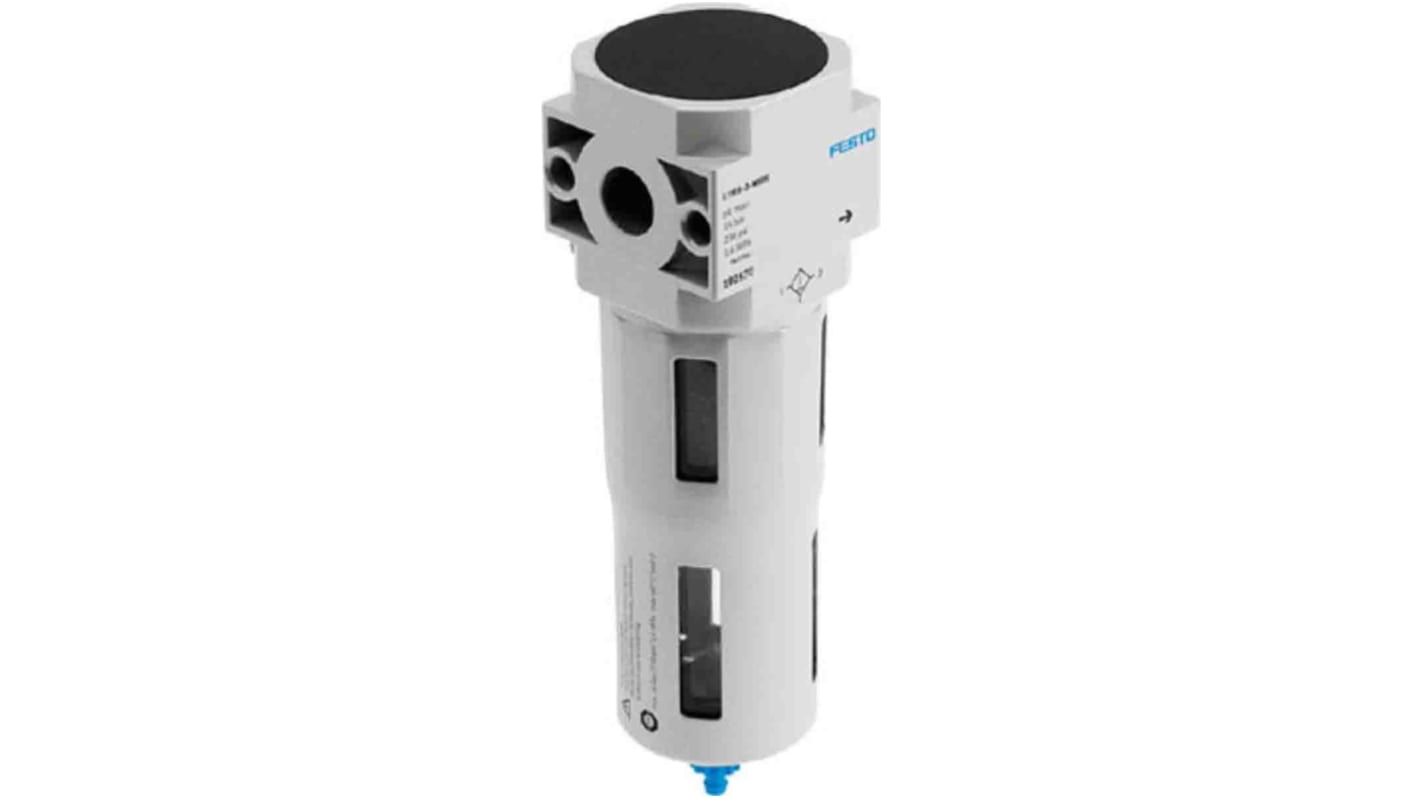

The Festo's D series fine filter without threaded connection plate with FRB threaded pin. It has 1 μm filter cartridge, with metal bowl guard. Its size is midi and drain fully automatically with pneumatic connection port 1 is sub base.
Ambient temperature -10 to 60 °C
Free of copper and PTFE
