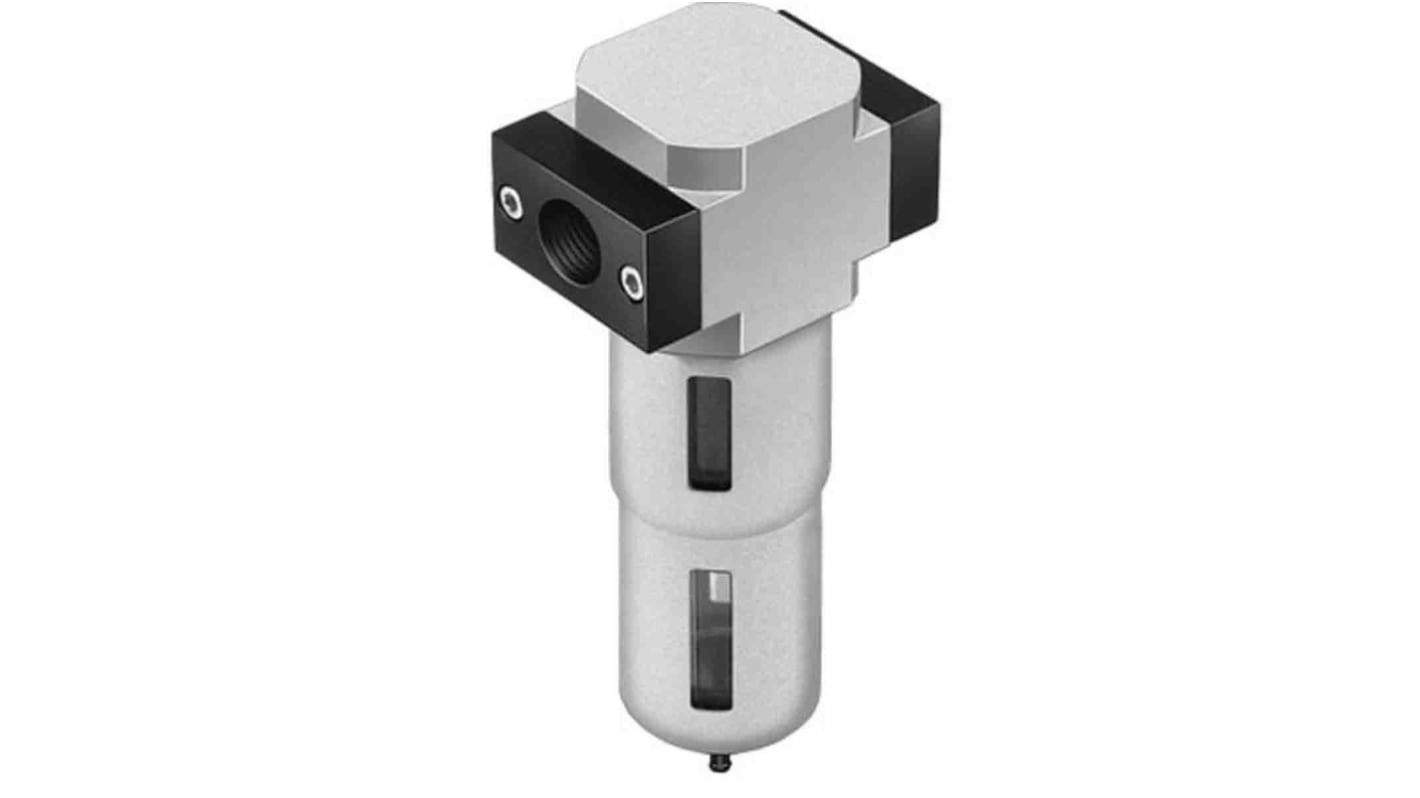

Festo D series 5 μm 1 in 12 bar Pneumatic Filter 3800 L/min max with Automatic drain
- RS Stock No.:
- 203-0646
- Mfr. Part No.:
- LF-1-D-5M-MAXI-A
- Brand:
- Festo
Subtotal (1 unit)*
£281.77
(exc. VAT)
£338.12
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £281.77 |
*price indicative
- RS Stock No.:
- 203-0646
- Mfr. Part No.:
- LF-1-D-5M-MAXI-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Filter | |
| Filtration Size | 5μm | |
| Port Size | 1 in | |
| Drain Type | Automatic | |
| Series | D | |
| Maximum Flow Rate | 3800L/min | |
| Maximum Operating Pressure | 12 bar | |
| Minimum Operating Temperature | 5°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | ISO 8573-1:2010, RoHS | |
| Bowl Material | Polycarbonate | |
| Filter Type | Centrifugal Blower | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Filter | ||
Filtration Size 5μm | ||
Port Size 1 in | ||
Drain Type Automatic | ||
Series D | ||
Maximum Flow Rate 3800L/min | ||
Maximum Operating Pressure 12 bar | ||
Minimum Operating Temperature 5°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals ISO 8573-1:2010, RoHS | ||
Bowl Material Polycarbonate | ||
Filter Type Centrifugal Blower | ||
- COO (Country of Origin):
- HU
The Festo's D series filter has maxi size with metal bowl guard which drain fully automaticallyally. It assembled in vertical +/- 5° position with standard nominal flow rate 3,800 l/min
Ambient temperature -10 to 60 °C
Zinc die-casting housing material
