Festo MS series 5 μm 12 bar Pneumatic Filter with Automatic drain
- RS Stock No.:
- 202-3328
- Mfr. Part No.:
- MS9-LF-G-CUV
- Brand:
- Festo
Subtotal (1 unit)*
£202.85
(exc. VAT)
£243.42
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £202.85 |
*price indicative
- RS Stock No.:
- 202-3328
- Mfr. Part No.:
- MS9-LF-G-CUV
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Filter | |
| Filtration Size | 5μm | |
| Drain Type | Automatic | |
| Series | MS | |
| Seal Material | Nitrile Rubber (NBR) | |
| Maximum Operating Pressure | 12 bar | |
| Minimum Operating Temperature | 5°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS, ISO 8573-1:2010 (7:9:-), ISO8573-1:2010 (6:8:4) | |
| Filter Type | Centrifugal Blower | |
| Bowl Material | Wrought Aluminium Alloy | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Filter | ||
Filtration Size 5μm | ||
Drain Type Automatic | ||
Series MS | ||
Seal Material Nitrile Rubber (NBR) | ||
Maximum Operating Pressure 12 bar | ||
Minimum Operating Temperature 5°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS, ISO 8573-1:2010 (7:9:-), ISO8573-1:2010 (6:8:4) | ||
Filter Type Centrifugal Blower | ||
Bowl Material Wrought Aluminium Alloy | ||

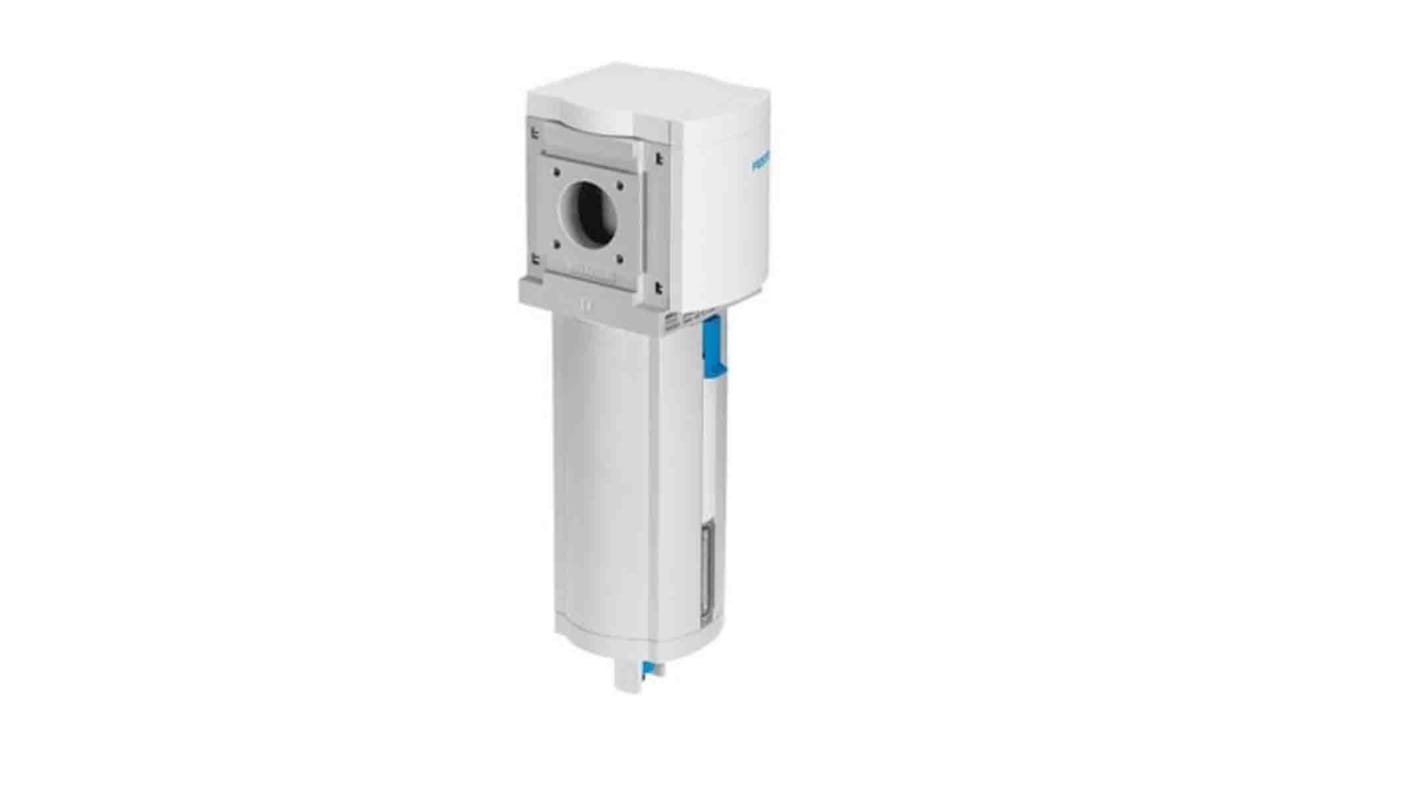

The Festo filter MS9-LF-G-CUV is 5 μm filter. It has metal bowl guard, fully automatic condensate drain and flow direction from left to right.
Size 9
Series MS
Assembly position Vertical +/- 5°
Grade of filtration 5 μm
Condensate drain fully automatic
