EMERSON – AVENTICS 652 series 25μ G 3/8 16 bar Pneumatic Filter with Automatic, Manual, Semi Automatic drain
- RS Stock No.:
- 125-3542
- Mfr. Part No.:
- G652ABJP3JA000N
- Brand:
- EMERSON ? AVENTICS
Subtotal (1 unit)*
£68.92
(exc. VAT)
£82.70
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £68.92 |
*price indicative
- RS Stock No.:
- 125-3542
- Mfr. Part No.:
- G652ABJP3JA000N
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EMERSON ? AVENTICS | |
| Filtration Size | 25µ | |
| Port Connection | G 3/8 | |
| Drain Type | Automatic, Manual, Semi Automatic | |
| Manufacturer Series | 652 | |
| Typical Flow Rate | 118.7 SCFM, 3390 L/min | |
| Maximum Operating Pressure | 16 bar | |
| Maximum Operating Temperature | +50°C | |
| Port Connection Thread Standard | G | |
| Minimum Operating Temperature | -20°C | |
| Port Connection Thread Size | 3/8 in | |
| Filter Type | Air Filter | |
| Proof Pressure | 6.3bar | |
| For Use With | 652 Series Filter Regulator Lubricator | |
| Bowl Material | Polycarbonate | |
Select all | ||
|---|---|---|
Brand EMERSON ? AVENTICS | ||
Filtration Size 25µ | ||
Port Connection G 3/8 | ||
Drain Type Automatic, Manual, Semi Automatic | ||
Manufacturer Series 652 | ||
Typical Flow Rate 118.7 SCFM, 3390 L/min | ||
Maximum Operating Pressure 16 bar | ||
Maximum Operating Temperature +50°C | ||
Port Connection Thread Standard G | ||
Minimum Operating Temperature -20°C | ||
Port Connection Thread Size 3/8 in | ||
Filter Type Air Filter | ||
Proof Pressure 6.3bar | ||
For Use With 652 Series Filter Regulator Lubricator | ||
Bowl Material Polycarbonate | ||
- COO (Country of Origin):
- PL
651/652 Series Filter

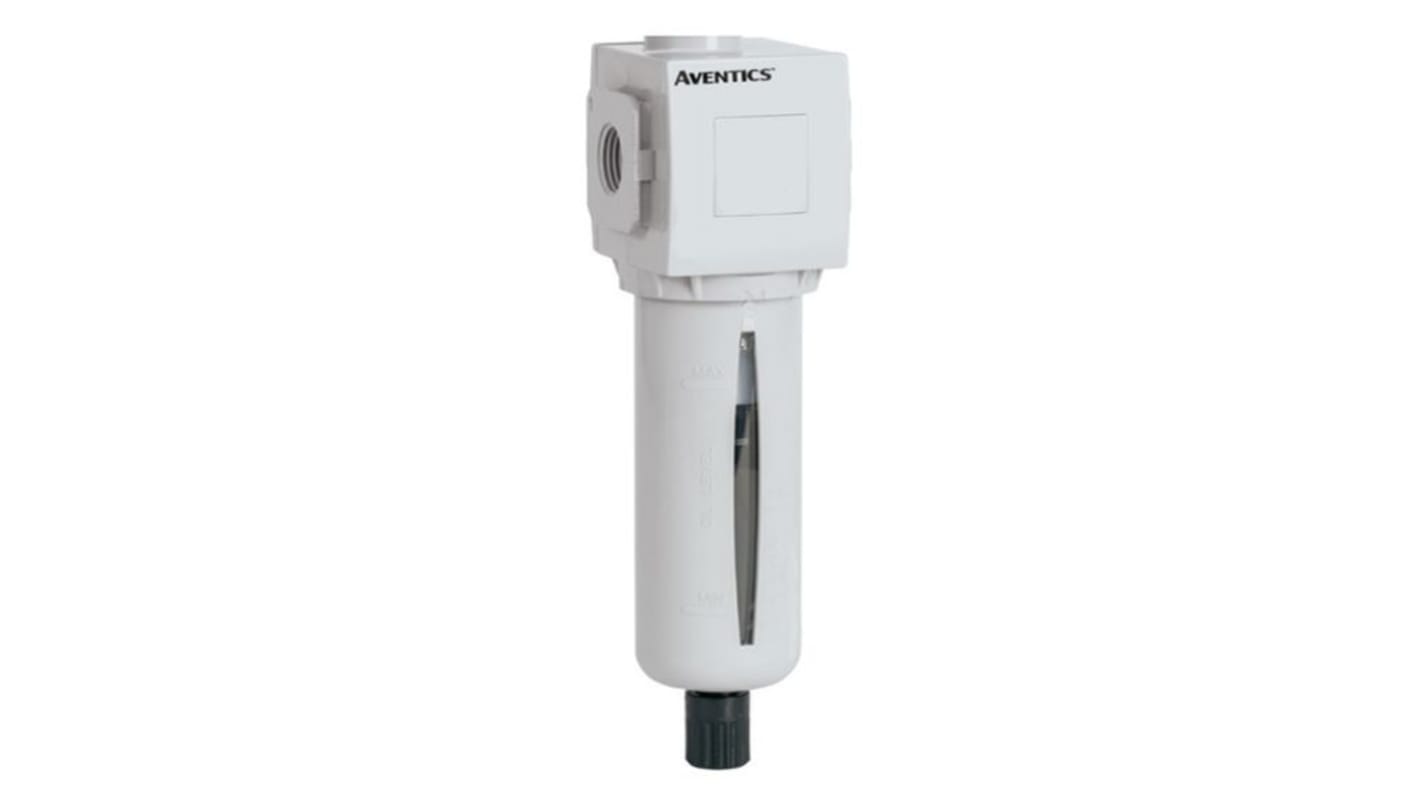

A pneumatic filter fitted with a semi-automatic drain from ASCO’s 651/652 series. The units have a 25 μm, sintered polyethylene element with a centrifugal separator for removal of particulate and water contamination from the air line. They are fitted with a polycarbonate bowl with bowl guard and sight gauge to meet industry requirements. The 651/652 series are a modular air preparation system that is easy to install and can be easily configured to suit various compressed air applications.
Features and Benefits
• Large selection of filtering capabilities to remove particulate and water droplets from compressed or inert gas
• Sintered polyethylene elements, with centrifugal separator
• Optional extended temperature range of -40 °C to +80 °C
• Innovative two position plastic drain with manual and semi-automatic functions
• Polycarbonate bowls
• Threaded ports allow for individual or modular mounting
• Air purity class according to ISO 8573-1 2010
Filters and Lubricators
