Festo Position Transmitter Pneumatic Position Detector, IP65, IP68, 15 to 30V dc, NC, NO, PNP Operation, SDAT-MHS,
- RS Stock No.:
- 175-4532
- Mfr. Part No.:
- SDAT-MHS-M125-1L-SA-E-0.3-M8
- Brand:
- Festo
Subtotal (1 unit)*
£344.86
(exc. VAT)
£413.83
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £344.86 |
*price indicative
- RS Stock No.:
- 175-4532
- Mfr. Part No.:
- SDAT-MHS-M125-1L-SA-E-0.3-M8
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Type | Position Transmitter | |
Supply Voltage | 15 to 30V dc | |
Manufacturer Series | SDAT-MHS | |
Operation | NC, NO, PNP | |
Compatible With | T-Slot | |
IP Rating | IP65, IP68 | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +70°C | |
Model Number p | 1531268 | |
Select all | ||
---|---|---|
Brand Festo | ||
Type Position Transmitter | ||
Supply Voltage 15 to 30V dc | ||
Manufacturer Series SDAT-MHS | ||
Operation NC, NO, PNP | ||
Compatible With T-Slot | ||
IP Rating IP65, IP68 | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +70°C | ||
Model Number p 1531268 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- BG

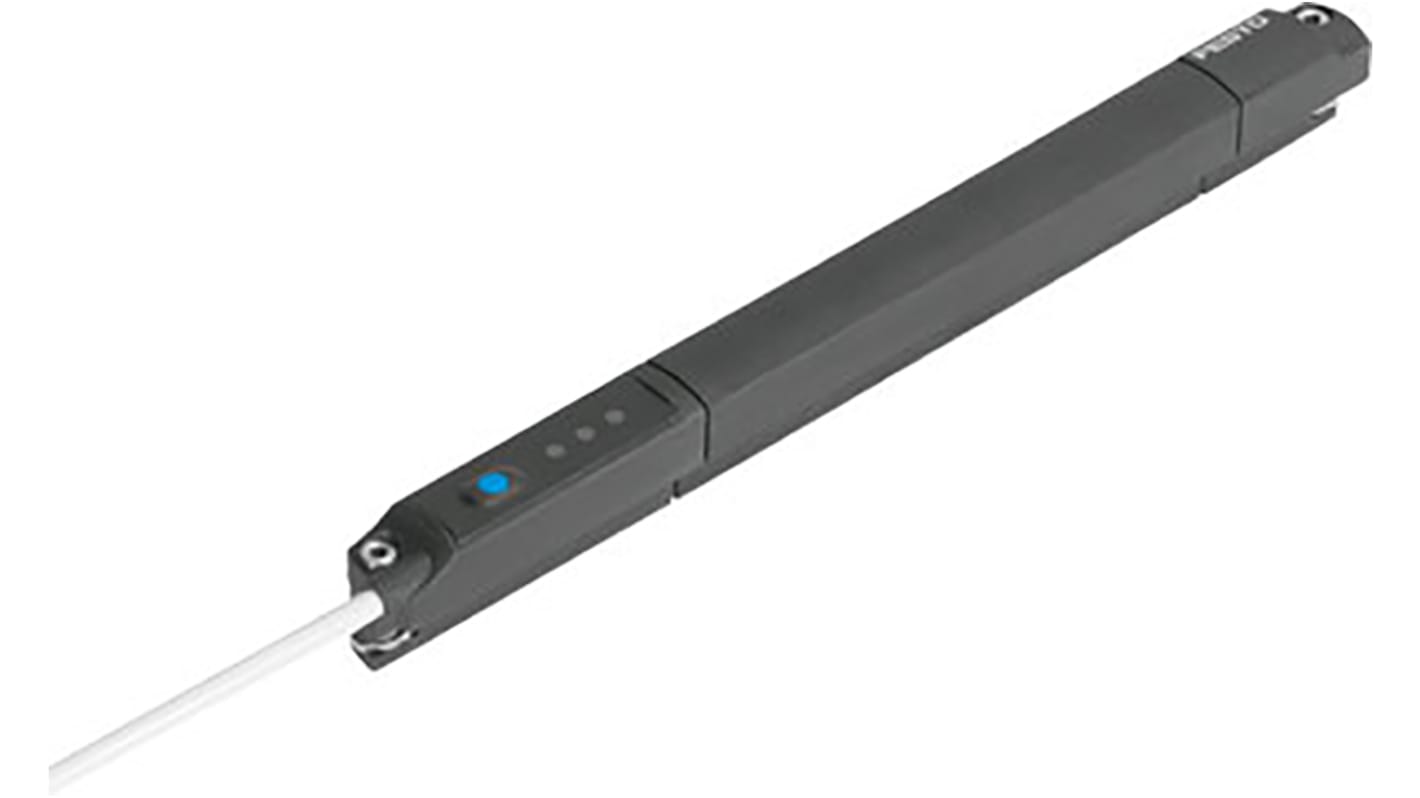

Festo Pneumatic Position Detector
The Festo SDAT-MHS PNP position transmitter is intended for contactless recording of the piston position of magnetically detectable drives. It is appropriate for use with Festo drives with T-slot (profile slot 8) as well as round cylinders and tie-rod cylinders with mounting kits. It has a 4-pin cable with a plug rotating thread detector. This detector has programmable IO link and switching output with an LED indicator.
Features and Benefits
• 125mm sensing range
• 0.128mA/mm sensitivity
• Oil resistant design and high repetition accuracy
• 0.3m cable length
• Wide range of mounting and connection options
• Operating temperature ranges between -20°C and 70°C
• Operating voltage ranges between 15VDC and 30VDC
• Analogue output ranges between 4 and 20mA
• Maximum output current 100mA
• PNP type control output
• 0.128mA/mm sensitivity
• Oil resistant design and high repetition accuracy
• 0.3m cable length
• Wide range of mounting and connection options
• Operating temperature ranges between -20°C and 70°C
• Operating voltage ranges between 15VDC and 30VDC
• Analogue output ranges between 4 and 20mA
• Maximum output current 100mA
• PNP type control output
Applications
• Food and packaging sector
• Energy chain and robots
• Medical equipment
• Automation industry
• Energy chain and robots
• Medical equipment
• Automation industry
Certifications
• IP65 rated
• IP68 rated
• RCM
• cUL s -listed (OL)
• IP68 rated
• RCM
• cUL s -listed (OL)
