RS PRO Cable with Connector M8 3 Pin Cylinder Magnetic Sensor, IP65, IP67 30V LED Indicator

RS Stock No.:: 630-922
Brand:: RS PRO

RS PRO Cable with Connector M8 3 Pin Cylinder Magnetic Sensor, IP65, IP67 30V LED Indicator

Subtotal (1 unit)*

£19.19

(exc. VAT)

£23.03

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

Plus 16 unit(s) shipping from 14 September 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£19.19

*price indicative

RS Stock No.:: 630-922
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Product Type	Cylinder Magnetic Sensor
	Output Function	NO
	Construction	T-Slot
	LED Indicator	Yes
	Housing Material	Plastic
	Voltage	30V
	For Use With	T-Slot Cylinders
	IP Rating	IP65, IP67
	Switching Action	No
	Minimum Operating Temperature	-30°C
	Measurement Principle	Magnetic Cylindrical Sensor
	Maximum Operating Temperature	80°C
	Depth	32.2mm
	Hazardous Area Certification	No
	Height	5.8mm
	Width	4.8mm
	Standards/Approvals	ACMA, cULus, EN 60947-5-2, EU, Moroccan, RoHS, UK
	Electrical Connection Type	Cable with Connector M8 3 Pin

	Select all
	Brand RS PRO
	Product Type Cylinder Magnetic Sensor
	Output Function NO
	Construction T-Slot
	LED Indicator Yes
	Housing Material Plastic
	Voltage 30V
	For Use With T-Slot Cylinders
	IP Rating IP65, IP67
	Switching Action No
	Minimum Operating Temperature -30°C
	Measurement Principle Magnetic Cylindrical Sensor
	Maximum Operating Temperature 80°C
	Depth 32.2mm
	Hazardous Area Certification No
	Height 5.8mm
	Width 4.8mm
	Standards/Approvals ACMA, cULus, EN 60947-5-2, EU, Moroccan, RoHS, UK
	Electrical Connection Type Cable with Connector M8 3 Pin

COO (Country of Origin):: HU

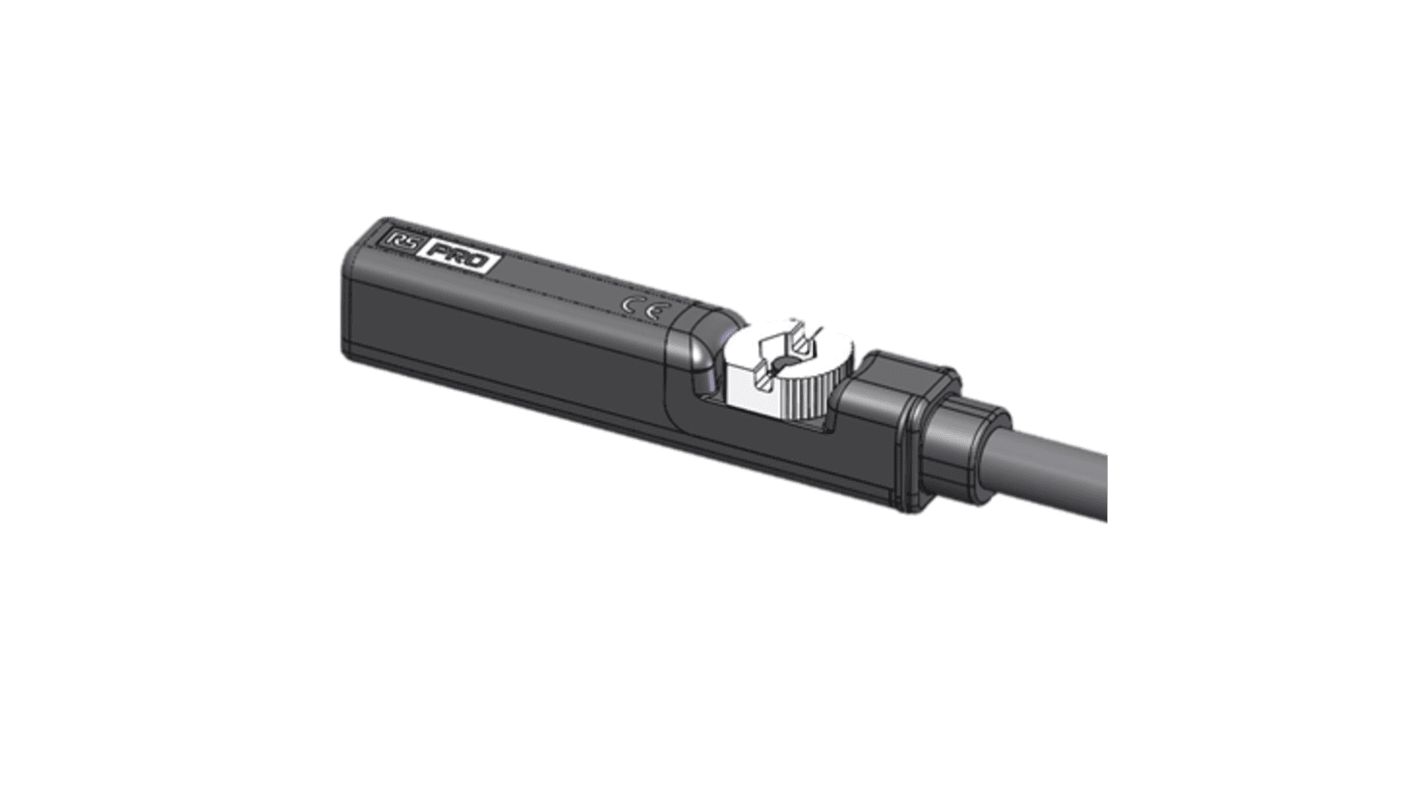

RS PRO T-Slot Cylinder Magnetic Sensor

The RS PRO T-Slot Cylinder Magnetic Sensor is designed for precise position detection in industrial automation applications. It features a magnetic cylindrical sensor that ensures reliable performance in detecting the position of T-slot cylinders. With its robust construction and high IP rating, this sensor is Ideal for harsh environments.

Features and Benefits

Magnetic Cylindrical Sensor: Provides accurate position detection for T-slot cylinders.
Cable with Connector M8 3 Pin: Ensures easy and secure electrical connections.
IP65 and IP67 Rated: Offers protection against dust and water ingress, suitable for challenging environments.
Wide Operating Temperature Range: Functions effectively from -30 °C to 80 °C, accommodating various industrial conditions.
Reed Switch Output: Delivers reliable switching action with normally open (NO) configuration.
Compact Design: With dimensions of 32.2 mm depth, 5.8 mm height, and 4.8 mm width, it fits seamlessly into tight spaces.
Plastic Housing: Provides durability and resistance to environmental factors.

Applications

Industrial automation
Manufacturing machinery
Robotics
Material handling systems

Additional Information

Complies with standards such as ACMA, cULus, EN 60947-5-2, EU, Moroccan, RoHS, and UK.
Operates on a voltage range of 5 to 30 V AC/DC.
