RS PRO Cable with Connector M8 3 Pin Cylinder Magnetic Sensor, IP65, IP67 30V LED Indicator
- RS Stock No.:
- 630-920
- Brand:
- RS PRO
Subtotal (1 unit)*
£19.19
(exc. VAT)
£23.03
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 23 unit(s) ready to ship
- Plus 44 unit(s) shipping from 19 October 2026
- Plus 77 unit(s) shipping from 02 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £19.19 |
*price indicative
- RS Stock No.:
- 630-920
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Cylinder Magnetic Sensor | |
| Construction | T-Slot | |
| Series | RS PRO | |
| Output Function | NO | |
| Housing Material | Plastic | |
| LED Indicator | Yes | |
| Voltage | 30V | |
| For Use With | T-Slot Cylinders | |
| IP Rating | IP65, IP67 | |
| Switching Action | No | |
| Measurement Principle | Magnetic Cylindrical Sensor | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 80°C | |
| Height | 5.8mm | |
| Depth | 32.2mm | |
| Width | 4.8mm | |
| Standards/Approvals | ACMA, cULus, EN 60947-5-2, EU, Moroccan, RoHS, UK | |
| Hazardous Area Certification | No | |
| Electrical Connection Type | Cable with Connector M8 3 Pin | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Cylinder Magnetic Sensor | ||
Construction T-Slot | ||
Series RS PRO | ||
Output Function NO | ||
Housing Material Plastic | ||
LED Indicator Yes | ||
Voltage 30V | ||
For Use With T-Slot Cylinders | ||
IP Rating IP65, IP67 | ||
Switching Action No | ||
Measurement Principle Magnetic Cylindrical Sensor | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 80°C | ||
Height 5.8mm | ||
Depth 32.2mm | ||
Width 4.8mm | ||
Standards/Approvals ACMA, cULus, EN 60947-5-2, EU, Moroccan, RoHS, UK | ||
Hazardous Area Certification No | ||
Electrical Connection Type Cable with Connector M8 3 Pin | ||
- COO (Country of Origin):
- HU

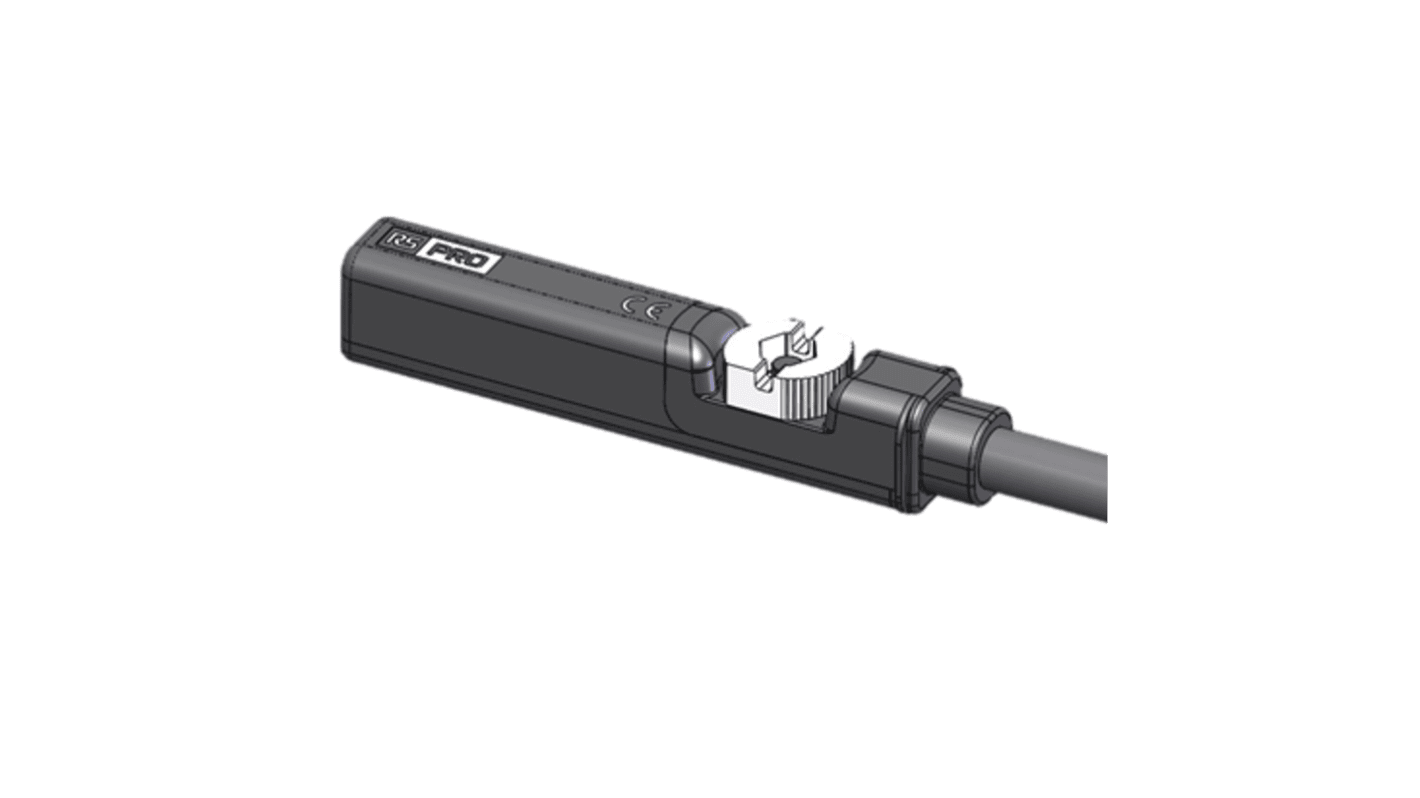

RS PRO T-Slot Cylinder Magnetic Sensor, Cable with Connector M8 3 Pin
The RS PRO T-Slot Cylinder Magnetic Sensor is designed for precise position detection in industrial automation applications. This sensor is Ideal for use with T-Slot cylinders, providing reliable and accurate magnetic sensing capabilities. Its Compact design and robust construction ensure durability and performance in demanding environments.
Features and Benefits
Magnetic Cylindrical Sensor: Ensures accurate position detection.
Cable with Connector M8 3 Pin: Facilitates easy and secure electrical connections.
Plastic Housing: Offers lightweight and Durable protection.
IP65 and IP67 Rated: Provides excellent protection against dust and water ingress.
Wide Operating Temperature Range: Functions effectively from -30 °C to 80 °C.
Reed Switch Output: Delivers reliable switching action.
NO Switching Action: Simplifies integration with control systems.
Voltage Range 5 to 30 V AC/DC: Compatible with various power supplies.
Cable with Connector M8 3 Pin: Facilitates easy and secure electrical connections.
Plastic Housing: Offers lightweight and Durable protection.
IP65 and IP67 Rated: Provides excellent protection against dust and water ingress.
Wide Operating Temperature Range: Functions effectively from -30 °C to 80 °C.
Reed Switch Output: Delivers reliable switching action.
NO Switching Action: Simplifies integration with control systems.
Voltage Range 5 to 30 V AC/DC: Compatible with various power supplies.
Applications
Industrial automation
Robotics
Pneumatic systems
Manufacturing machinery
Robotics
Pneumatic systems
Manufacturing machinery
Additional Information
Complies with standards such as ACMA, cULus, EN 60947-5-2, EU, Moroccan, RoHS, and UK.
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
