MPN

RS PRO Cable 3 Wire Cylinder Magnetic Sensor, IP65, IP67 30V LED Indicator

RS Stock No.:: 630-921
Brand:: RS PRO

RS PRO Cable 3 Wire Cylinder Magnetic Sensor, IP65, IP67 30V LED Indicator

Subtotal (1 unit)*

£19.19

(exc. VAT)

£23.03

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

26 unit(s) ready to ship
Plus 27 unit(s) shipping from 05 October 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£19.19

*price indicative

RS Stock No.:: 630-921
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Product Type	Cylinder Magnetic Sensor
	Output Function	NO
	Construction	T-Slot
	LED Indicator	Yes
	Housing Material	Plastic
	Voltage	30V
	For Use With	T-Slot Cylinders
	IP Rating	IP65, IP67
	Switching Action	No
	Minimum Operating Temperature	-30°C
	Measurement Principle	Magnetic Cylindrical Sensor
	Maximum Operating Temperature	80°C
	Depth	32.2mm
	Hazardous Area Certification	No
	Standards/Approvals	ACMA, cULus, EN 60947-5-2, EU, Moroccan, RoHS, UK
	Width	4.8mm
	Height	5.8mm
	Electrical Connection Type	Cable 3 Wire

	Select all
	Brand RS PRO
	Product Type Cylinder Magnetic Sensor
	Output Function NO
	Construction T-Slot
	LED Indicator Yes
	Housing Material Plastic
	Voltage 30V
	For Use With T-Slot Cylinders
	IP Rating IP65, IP67
	Switching Action No
	Minimum Operating Temperature -30°C
	Measurement Principle Magnetic Cylindrical Sensor
	Maximum Operating Temperature 80°C
	Depth 32.2mm
	Hazardous Area Certification No
	Standards/Approvals ACMA, cULus, EN 60947-5-2, EU, Moroccan, RoHS, UK
	Width 4.8mm
	Height 5.8mm
	Electrical Connection Type Cable 3 Wire

COO (Country of Origin):: HU

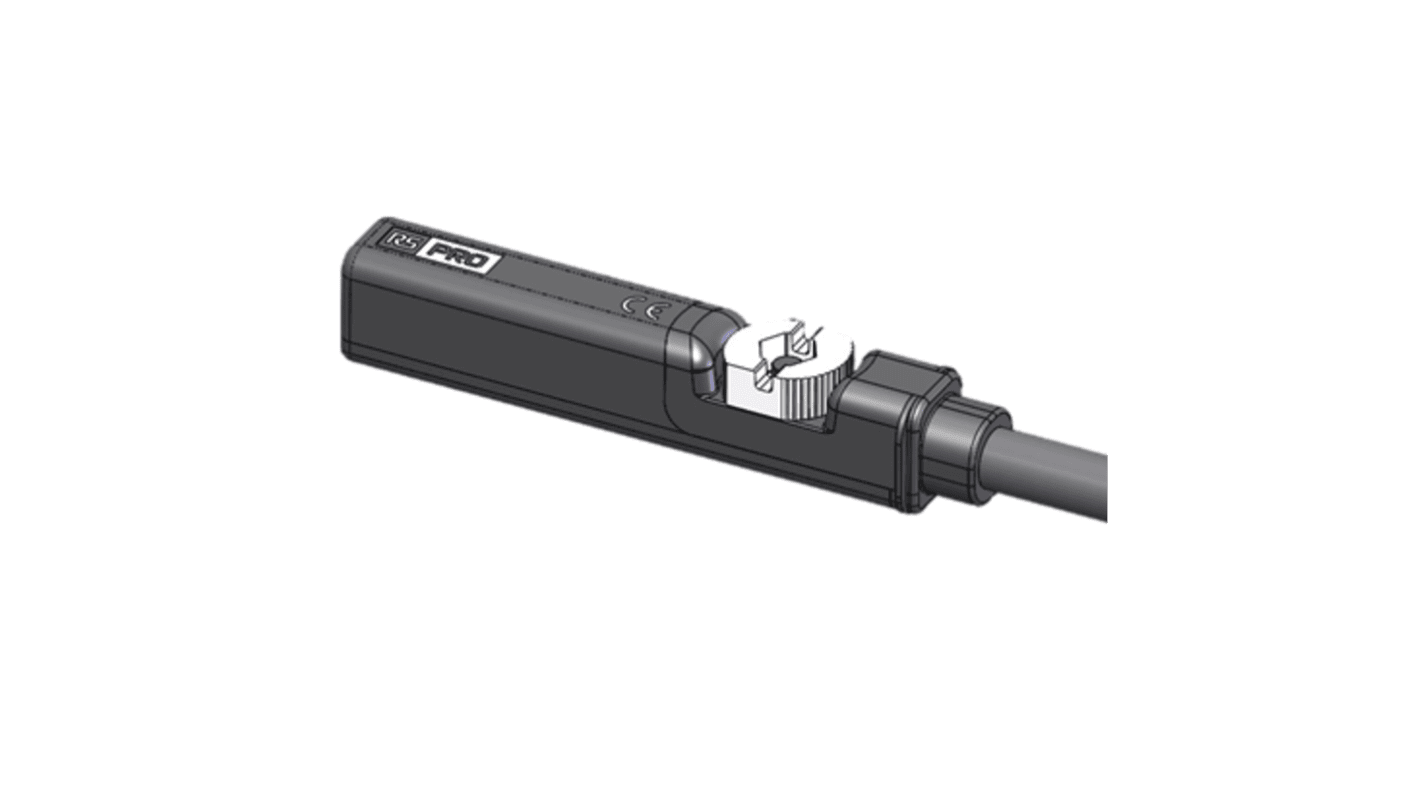

RS PRO T-Slot Cylinder Magnetic Sensor, Cable 3 Wire

The RS PRO T-Slot Cylinder Magnetic Sensor is designed for precise position detection in industrial automation systems. It is Ideal for use with T-Slot cylinders, providing reliable performance in harsh environments. With a robust plastic housing and IP65/IP67 ratings, this sensor ensures durability and protection against dust and water ingress.

Features and Benefits

Magnetic Cylindrical Sensor: Ensures accurate position detection.
Reed Switch Output: Provides a simple and reliable switching action.
Cable 3 Wire Connection: Facilitates easy installation and integration.
Wide Voltage Range: Operates between 5 to 30 V ac/dc for versatile application.
LED Indicator: Offers Visual confirmation of sensor status.
Temperature Range: Functions effectively from -30 °C to 80 °C, suitable for extreme conditions.
Compact Dimensions: With a height of 5.8 mm, width of 4.8 mm, and depth of 32.2 mm, it fits seamlessly into tight spaces.

Applications

Industrial Automation
Robotics
Pneumatic Systems
Manufacturing Equipment

Additional Information

Complies with standards such as ACMA, cULus, EN 60947-5-2, EU, Moroccan, RoHS, UK.

Why RS PRO?

RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
