RS PRO Cable 2 Wire Cylinder Magnetic Sensor, IP65, IP67 30V LED Indicator

RS Stock No.:: 630-918
Brand:: RS PRO

RS PRO Cable 2 Wire Cylinder Magnetic Sensor, IP65, IP67 30V LED Indicator

Subtotal (1 unit)*

£19.19

(exc. VAT)

£23.03

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

79 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£19.19

*price indicative

RS Stock No.:: 630-918
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Product Type	Cylinder Magnetic Sensor
	Construction	T-Slot
	Output Function	NO
	LED Indicator	Yes
	Housing Material	Plastic
	Voltage	30V
	For Use With	T-Slot Cylinders
	IP Rating	IP65, IP67
	Switching Action	No
	Measurement Principle	Magnetic Cylindrical Sensor
	Minimum Operating Temperature	-30°C
	Maximum Operating Temperature	80°C
	Hazardous Area Certification	No
	Standards/Approvals	ACMA, cULus, EN 60947-5-2, EU, Moroccan, RoHS, UK
	Width	4.8mm
	Diameter	25mm
	Depth	32.2mm
	Height	5.8mm
	Electrical Connection Type	Cable 2 Wire

	Select all
	Brand RS PRO
	Product Type Cylinder Magnetic Sensor
	Construction T-Slot
	Output Function NO
	LED Indicator Yes
	Housing Material Plastic
	Voltage 30V
	For Use With T-Slot Cylinders
	IP Rating IP65, IP67
	Switching Action No
	Measurement Principle Magnetic Cylindrical Sensor
	Minimum Operating Temperature -30°C
	Maximum Operating Temperature 80°C
	Hazardous Area Certification No
	Standards/Approvals ACMA, cULus, EN 60947-5-2, EU, Moroccan, RoHS, UK
	Width 4.8mm
	Diameter 25mm
	Depth 32.2mm
	Height 5.8mm
	Electrical Connection Type Cable 2 Wire

COO (Country of Origin):: HU

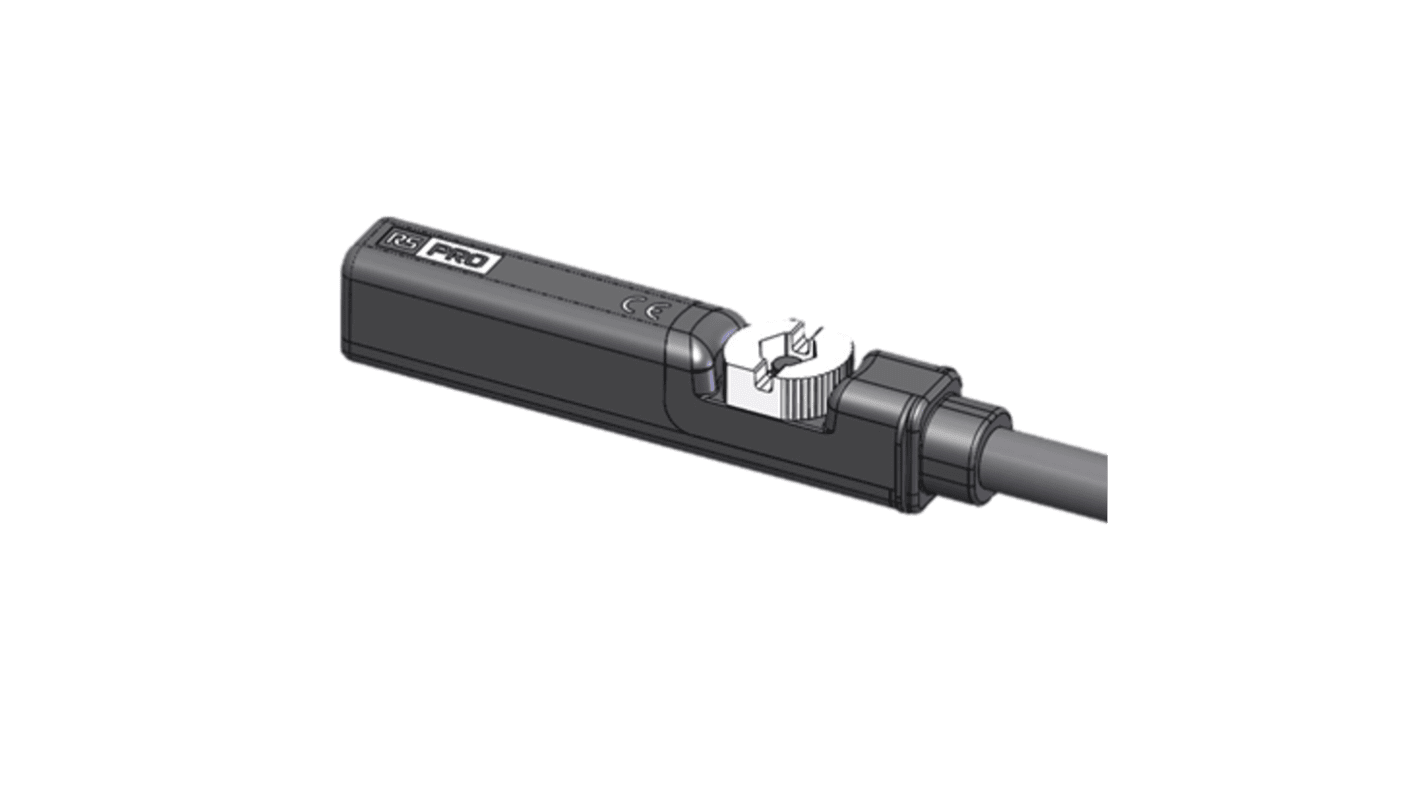

RS PRO T-Slot Cylinder Magnetic Sensor, Cable 2 Wire

The RS PRO Cylinder Magnetic Sensor is designed for use with T-Slot cylinders. It provides reliable position sensing through its magnetic cylindrical sensor principle, ensuring precise operation in various industrial environments. With a robust plastic housing and a wide operating temperature range, this sensor is Ideal for demanding applications.

Features and Benefits

T-Slot Construction: Ensures compatibility with T-Slot cylinders for easy installation.
Cable 2 Wire Connection: Simplifies electrical connections and reduces installation time.
Plastic Housing: Offers durability and resistance to environmental factors.
IP65 and IP67 Rated: Provides protection against dust and water ingress, suitable for harsh conditions.
LED Indicator: Allows for easy status monitoring and troubleshooting.
Wide Voltage Range: Operates efficiently between 5 and 30 V AC/DC.
Reed Switch Output: Delivers reliable switching action with normally open (NO) configuration.
Temperature Range: Operates effectively from -30 °C to 80 °C, suitable for extreme environments.

Applications

Industrial Automation
Manufacturing Equipment
Pneumatic Systems
Robotics

Additional Information

Complies with standards such as ACMA, cULus, EN 60947-5-2, EU, Moroccan, RoHS, and UK. Suitable for use in regions requiring these certifications.
