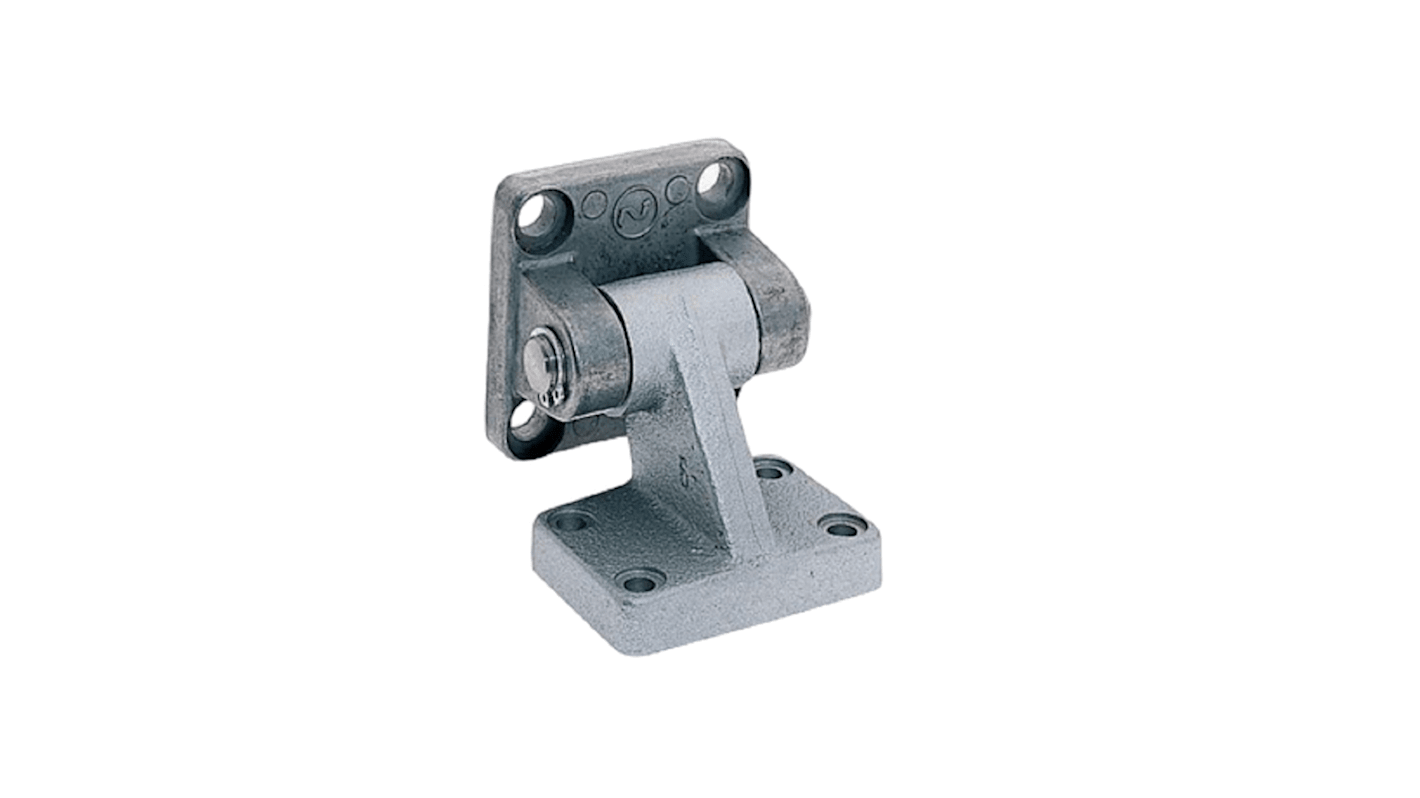

Norgren Rear Hinge QA/8100/24, To Fit 100mm Bore Size
- RS Stock No.:
- 510-4422
- Mfr. Part No.:
- QA/8100/24
- Brand:
- Norgren
Bulk discount available
Subtotal (1 unit)*
£94.28
(exc. VAT)
£113.14
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £94.28 |
5 - 9 | £90.41 |
10 - 24 | £88.43 |
25 + | £86.56 |
*price indicative
- RS Stock No.:
- 510-4422
- Mfr. Part No.:
- QA/8100/24
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Norgren | |
To Fit Bore Size | 100mm | |
Product Type | Rear Hinge | |
Manufacturer Series | QA | |
Select all | ||
---|---|---|
Brand Norgren | ||
To Fit Bore Size 100mm | ||
Product Type Rear Hinge | ||
Manufacturer Series QA | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE

IMI Norgren Rear Hinge, To Fit 100mm Bore Size, 1 to 16 Bar Operating Pressure - QA Series - QA/8100/24
Keen to keep your components in place? This rear hinge from IMI Norgren eliminates unwanted movement. Use it to attach a pneumatic profile cylinder to your industrial setup. The unit pairs with 100mm bore cylinders in the QA series, so you can be sure of an accurate fit. As the bracket's hinged, you can rotate the attached component up and down, giving you flexible positioning. Mounting is quick and hassle-free thanks, thanks to four pre-drilled four holes. These are countersunk to make sure your fixings don't get in the way of the unit's movement.
Features & Benefits
• Supports cylinders managing a broad operational pressure range between 1 and 16 bar, for suitability with low-pressure and high-pressure applications
• Performs safely in temperatures between -20°C and +80°C
• Performs safely in temperatures between -20°C and +80°C
Applications
• Conveyor systems
• Food and beverage processing
• Laboratory equipment
• Printing presses
• Automotive manufacturing
• Food and beverage processing
• Laboratory equipment
• Printing presses
• Automotive manufacturing
How does a rear hinge work?
It consists of two parts. The hinge pin provides a fixed point around which the cylinder can rotate. This is then inserted through the hinge bracket and the rear mounting holes of the cylinder, enabling controlled movement in your pneumatic system.
