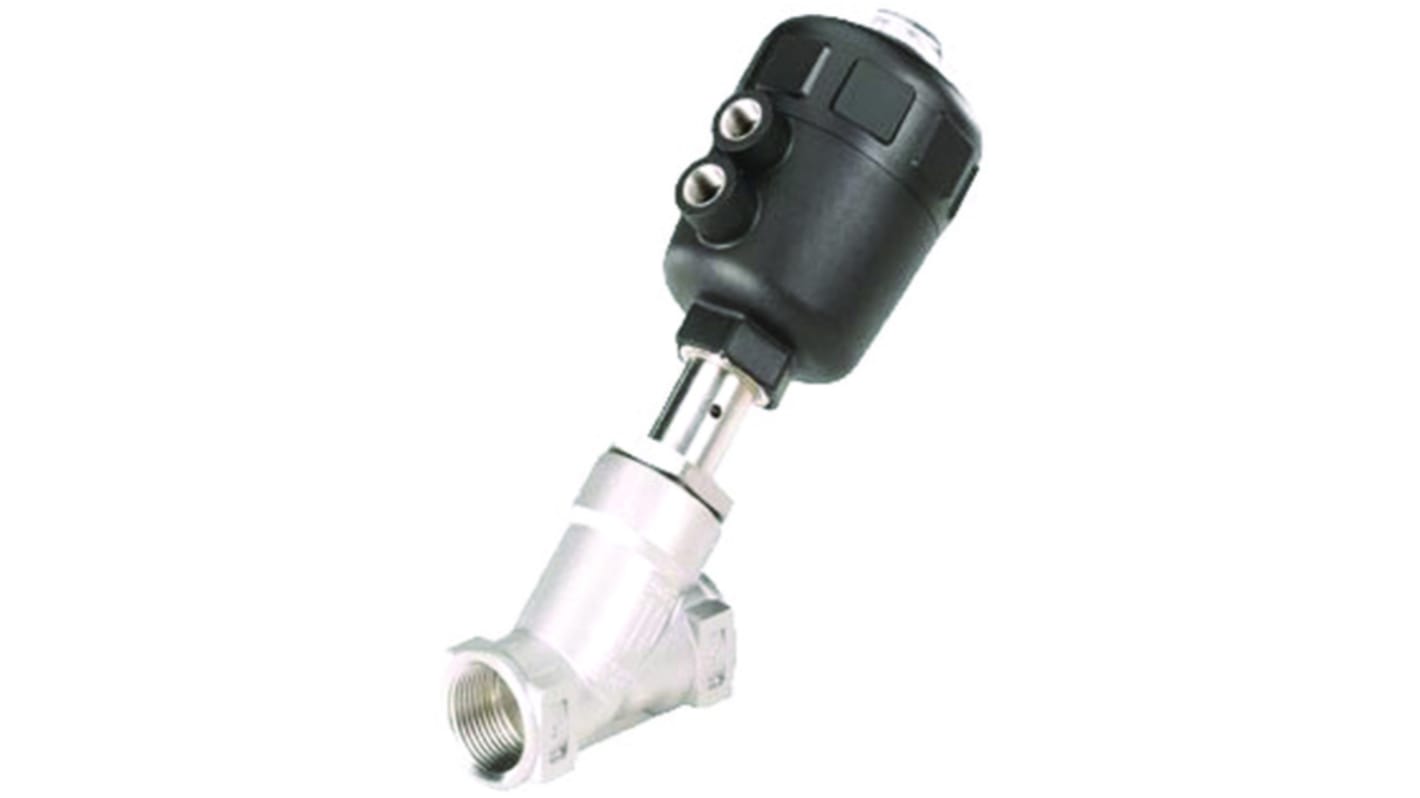

Burkert Angle type Pneumatic Actuated Valve, G 3/4in, 16 bar

View all Pneumatic Actuated Valves

Subtotal (1 unit)*

£268.66

(exc. VAT)

£322.39

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 7 unit(s) ready to ship
  • Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£268.66

*price indicative

RS Stock No.:
816-3137
Mfr. Part No.:
178686
Brand:
Burkert
Find similar products by selecting one or more attributes.
Select all

Brand

Burkert

Thread Size

3/4in

Valve Type

Angle

Default Valve Position

NO

Return Type

Spring

Thread Standard

G

Maximum Working Pressure

16 bar

COO (Country of Origin):
DE

Series 2000 Two-way, Angle Seat Valve - Stainless Steel Body


2/2- way pneumatically operated angle seat valves. Available in both NO (Normally Open) and NC (Normally Closed) configurations and with the flow direction above or below the seat
For use with neutral gases, air, steam, water and oil. (also aggressive fluids with stainless steel body)

Polyamide actuator casing and PTFE seal material
Self-adjusting spindle packing glands; wiper seal; intermediate relief
High flow rates from compact designs
For use with neutral gases, air, steam, water, oil and aggressive fluids
Ambient temperature range: –10 to +60°C
Media temperature range: –10 to +180°C

Group and Category

EX II 2G/D T4/T=135°C CE
