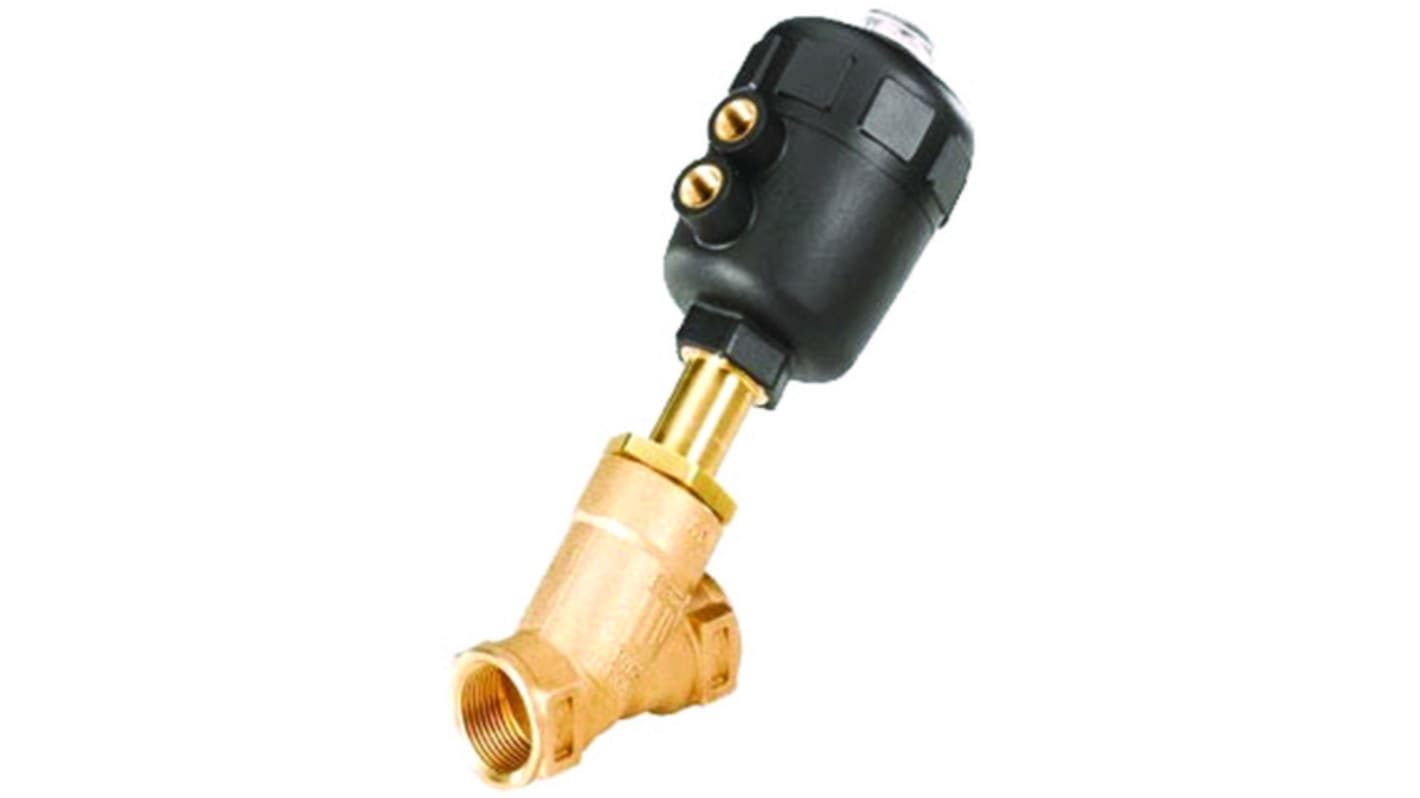

Burkert Angle type Pneumatic Actuated Valve, G 1-1/2in, 16 bar

View all Pneumatic Actuated Valves

Subtotal (1 unit)*

£397.94

(exc. VAT)

£477.53

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 1 unit(s) shipping from 06 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£397.94

*price indicative

RS Stock No.:
816-3106
Mfr. Part No.:
186487
Brand:
Burkert
Find similar products by selecting one or more attributes.
Select all

Brand

Burkert

Thread Size

1-1/2in

Valve Type

Angle

Default Valve Position

NC

Return Type

Spring

Thread Standard

G

Maximum Working Pressure

16 bar

COO (Country of Origin):
DE

Series 2000, Two Way, Angle Seat Valve - Gunmetal Body


2/2- way pneumatically operated angle seat valves. Available in both NO (Normally Open) and NC (Normally Closed) configurations and with the flow direction above or below the seat
For use with neutral gases, air, steam, water and oil.

2//2-way, normally closed by spring action
Polyamide actuator casing and PTFE seal material
Self-adjusting spindle packing glands; wiper seal; intermediate relief
High flow rates from compact designs
Ambient temperature range: –10 to +60°C
Media temperature range: –10 to +180°C

Note

Valves with flow direction above the seat are best suited to gases and steam. They are only conditionally usable with liquids due to the risk of water-hammer.

Group and Category

EX II 2G/D T4/T=135°C CE
