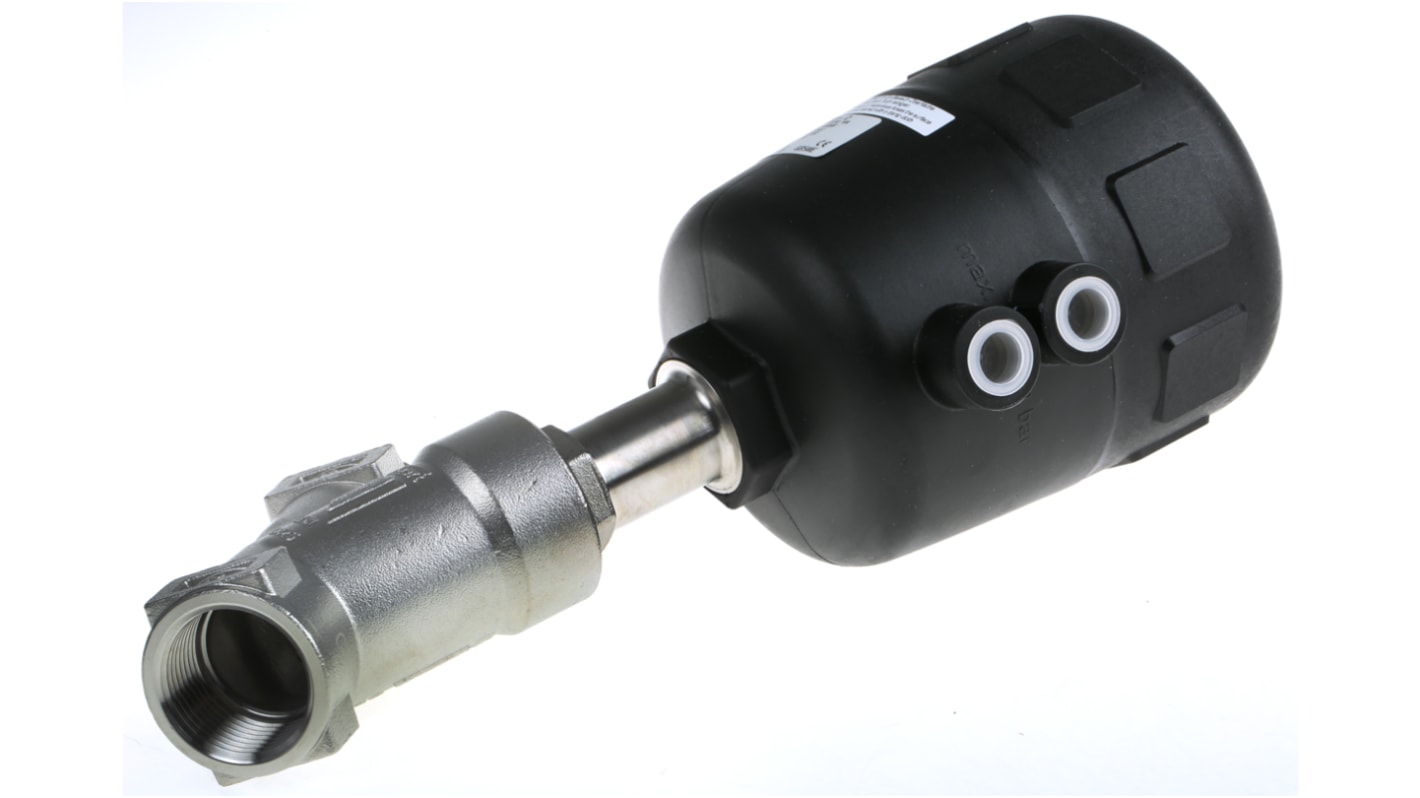

Burkert Angle type Pneumatic Actuated Valve, G 1in, 16 bar

View all Pneumatic Actuated Valves

Subtotal (1 unit)*

£371.68

(exc. VAT)

£446.02

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£371.68

*price indicative

RS Stock No.:
816-3102
Mfr. Part No.:
186488
Brand:
Burkert
Find similar products by selecting one or more attributes.
Select all

Brand

Burkert

Thread Size

1in

Valve Type

Angle

Default Valve Position

NC

Return Type

Spring

Thread Standard

G

Maximum Working Pressure

16 bar

COO (Country of Origin):
DE

Burkert Pneumatic Valve


The Burkert pneumatic valve with angle seat 1in G connection has normally closed (NC) configuration and is made of cast stainless steel for maximum operating pressure of 16bar. It has a 2/2-way configuration with the under-seat flow for liquids. This anti-water hammer valve employs live loaded packing and an N-seal piston actuator, all in an application proven rugged compact envelope.

Features and Benefits


Ambient temperature ranging between –10°C and 60°C
Flow rate is 18m³/h
High flow rate because of compact design
Intermediate relief
Media temperature ranging between –10°C and 180°C
Orifice is 25mm
Polyamide actuator casing and PTFE seal material
Self-adjusting spindle packing glands
Wiper seal

Certifications


GL approved
SIL approved
