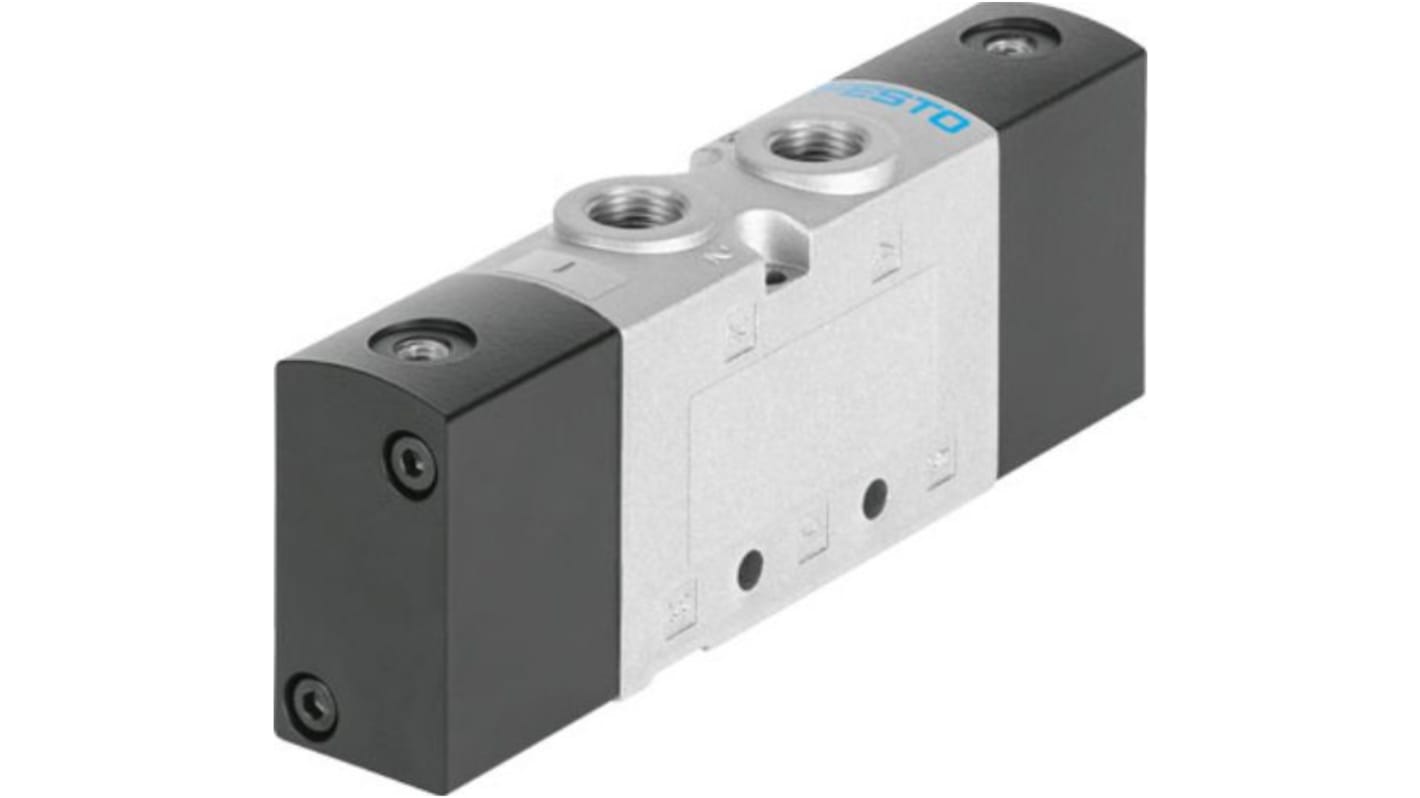

Festo Directional Control type Pneumatic Valve, 10 bar G 1/8 in
- RS Stock No.:
- 278-6261
- Mfr. Part No.:
- VUWS-LT20-T32U-M-G18
- Brand:
- Festo
Subtotal (1 unit)*
£59.97
(exc. VAT)
£71.96
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 20 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £59.97 |
*price indicative
- RS Stock No.:
- 278-6261
- Mfr. Part No.:
- VUWS-LT20-T32U-M-G18
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Valve | |
| Inlet Connection Type | Pneumatic | |
| Valve Type | Directional Control | |
| Default Valve Position | NO | |
| Inlet Port Size | G 1/8 in | |
| Outlet Connection Type | Pneumatic | |
| Return Type | Spring | |
| Outlet Port Size | 1/8 in G | |
| Maximum Operating Pressure | 10 bar | |
| Minimum Operating Temperature | -10°C | |
| Valve Material | Die Cast Aluminium | |
| Outlet Thread Standard | G | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | cULus | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Valve | ||
Inlet Connection Type Pneumatic | ||
Valve Type Directional Control | ||
Default Valve Position NO | ||
Inlet Port Size G 1/8 in | ||
Outlet Connection Type Pneumatic | ||
Return Type Spring | ||
Outlet Port Size 1/8 in G | ||
Maximum Operating Pressure 10 bar | ||
Minimum Operating Temperature -10°C | ||
Valve Material Die Cast Aluminium | ||
Outlet Thread Standard G | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals cULus | ||
This Festo pneumatic valve has pneumatic type of actuation with operating pressure between -0.9 bar to 10 bar. It is having the valve size of 21 mm.
RoHS compliant
Die cast aluminium housing
Wrought aluminium alloy material piston slide
UL Recognized
