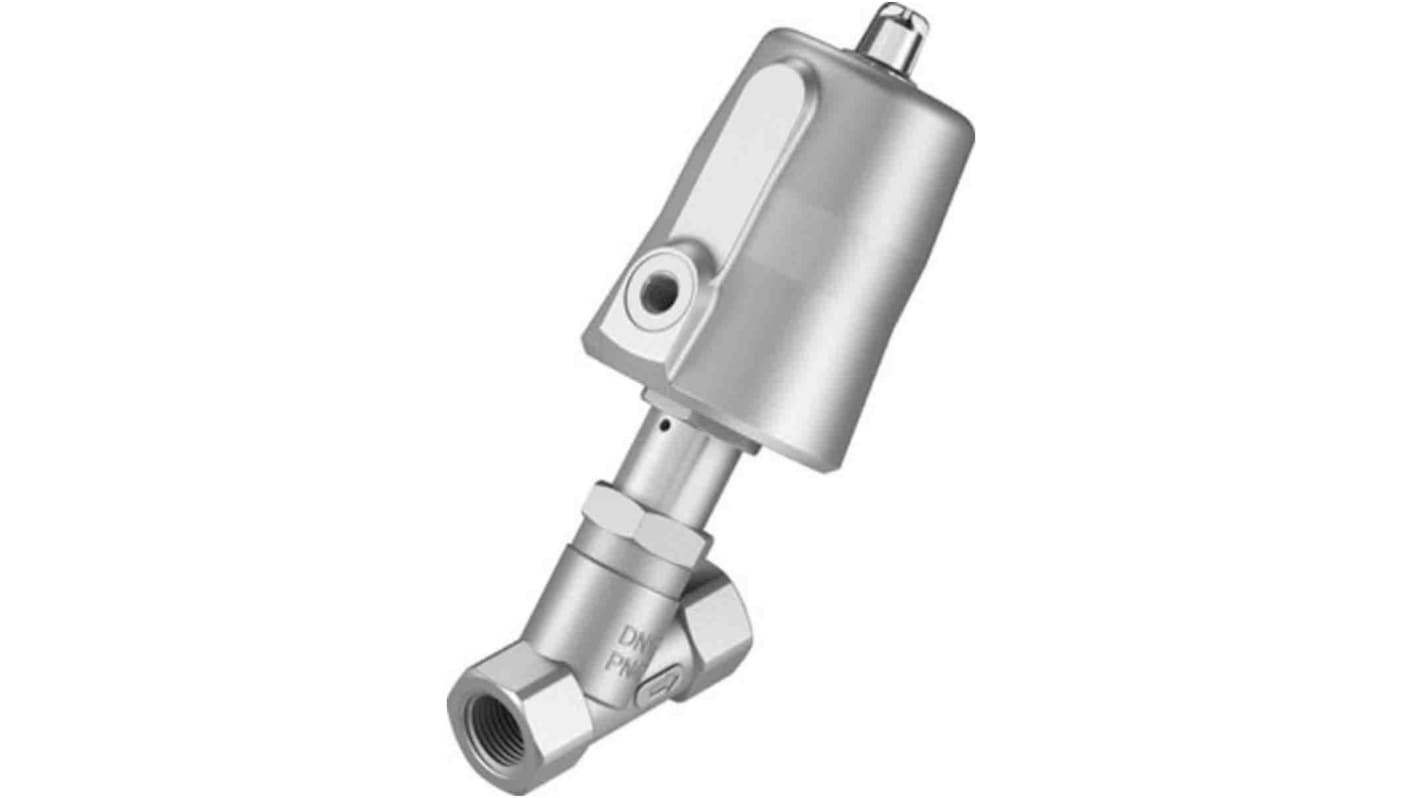

Festo Angle Seat type Pneumatic Actuated Valve, 40 bar, NPT, Female NPT1⁄2
- RS Stock No.:
- 203-7140
- Mfr. Part No.:
- VZXF-L-M22C-M-B-N12-130-M1-V4V4T-50-40
- Brand:
- Festo
Subtotal (1 unit)*
£235.15
(exc. VAT)
£282.18
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £235.15 |
*price indicative
- RS Stock No.:
- 203-7140
- Mfr. Part No.:
- VZXF-L-M22C-M-B-N12-130-M1-V4V4T-50-40
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Actuated Valve | |
| Valve Type | Angle Seat | |
| Inlet Connection Type | Threaded | |
| Default Valve Position | NC | |
| Inlet Port Size | NPT1⁄2 | |
| Return Type | Spring | |
| Outlet Connection Type | Threaded | |
| Outlet Port Size | 1/2 in | |
| Maximum Operating Pressure | 40 bar | |
| Inlet Thread Standard | NPT | |
| Inlet Port Gender | Female | |
| Minimum Operating Temperature | -40°C | |
| Valve Material | Stainless Steel Casting | |
| Outlet Port Gender | Female | |
| Outlet Thread Standard | NPT | |
| Maximum Operating Temperature | 200°C | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Actuated Valve | ||
Valve Type Angle Seat | ||
Inlet Connection Type Threaded | ||
Default Valve Position NC | ||
Inlet Port Size NPT1⁄2 | ||
Return Type Spring | ||
Outlet Connection Type Threaded | ||
Outlet Port Size 1/2 in | ||
Maximum Operating Pressure 40 bar | ||
Inlet Thread Standard NPT | ||
Inlet Port Gender Female | ||
Minimum Operating Temperature -40°C | ||
Valve Material Stainless Steel Casting | ||
Outlet Port Gender Female | ||
Outlet Thread Standard NPT | ||
Maximum Operating Temperature 200°C | ||
Standards/Approvals RoHS | ||
The Festo VZXF series modular pneumatically actuated angle seat valve is made of red brass. It has poppet valve structure with piston actuator and closed position G thread. The maximum medium pressure is 40 bar.
Line connection = G 1/2
Type of actuation = pneumatic
Assembly position = any
Mounting type = line installation
