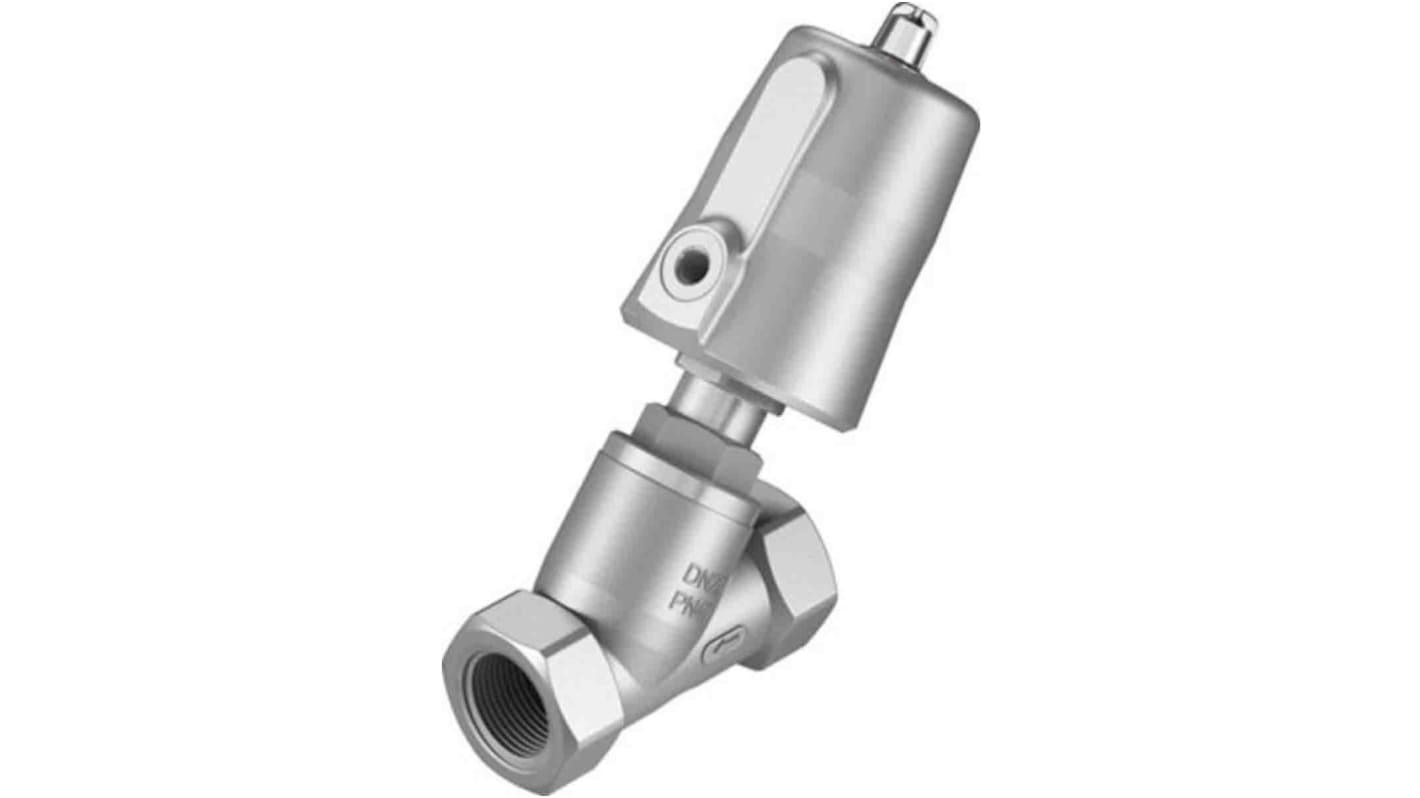

Festo Angle Seat type Pneumatic Actuated Valve, 16 bar, NPT, Female 24 mm
- RS Stock No.:
- 203-7110
- Mfr. Part No.:
- VZXF-L-M22C-M-A-N1-240-M1-V4B2T-50-16
- Brand:
- Festo
Subtotal (1 unit)*
£235.93
(exc. VAT)
£283.12
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 02 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £235.93 |
*price indicative
- RS Stock No.:
- 203-7110
- Mfr. Part No.:
- VZXF-L-M22C-M-A-N1-240-M1-V4B2T-50-16
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Actuated Valve | |
| Valve Type | Angle Seat | |
| Inlet Connection Type | Threaded | |
| Default Valve Position | NC | |
| Inlet Port Size | 24 mm | |
| Return Type | Spring | |
| Outlet Connection Type | Threaded | |
| Outlet Port Size | 1 in | |
| Inlet Thread Standard | NPT | |
| Maximum Operating Pressure | 16 bar | |
| Inlet Port Gender | Female | |
| Outlet Port Gender | Female | |
| Minimum Operating Temperature | -40°C | |
| Outlet Thread Standard | NPT | |
| Valve Material | Stainless Steel Casting | |
| Maximum Operating Temperature | 200°C | |
| Standards/Approvals | ISO8573-1:2010 (7:4:4), Conforms to RoHS | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Actuated Valve | ||
Valve Type Angle Seat | ||
Inlet Connection Type Threaded | ||
Default Valve Position NC | ||
Inlet Port Size 24 mm | ||
Return Type Spring | ||
Outlet Connection Type Threaded | ||
Outlet Port Size 1 in | ||
Inlet Thread Standard NPT | ||
Maximum Operating Pressure 16 bar | ||
Inlet Port Gender Female | ||
Outlet Port Gender Female | ||
Minimum Operating Temperature -40°C | ||
Outlet Thread Standard NPT | ||
Valve Material Stainless Steel Casting | ||
Maximum Operating Temperature 200°C | ||
Standards/Approvals ISO8573-1:2010 (7:4:4), Conforms to RoHS | ||
The Festo VZXF series modular pneumatically actuated angle seat valve is made of red brass. It has poppet valve structure with piston actuator and closed position NPT thread. The maximum medium pressure is 16 bar.
Line connection = NPT1 1/4
Type of actuation = pneumatic
Assembly position = any
Mounting type = line installation
