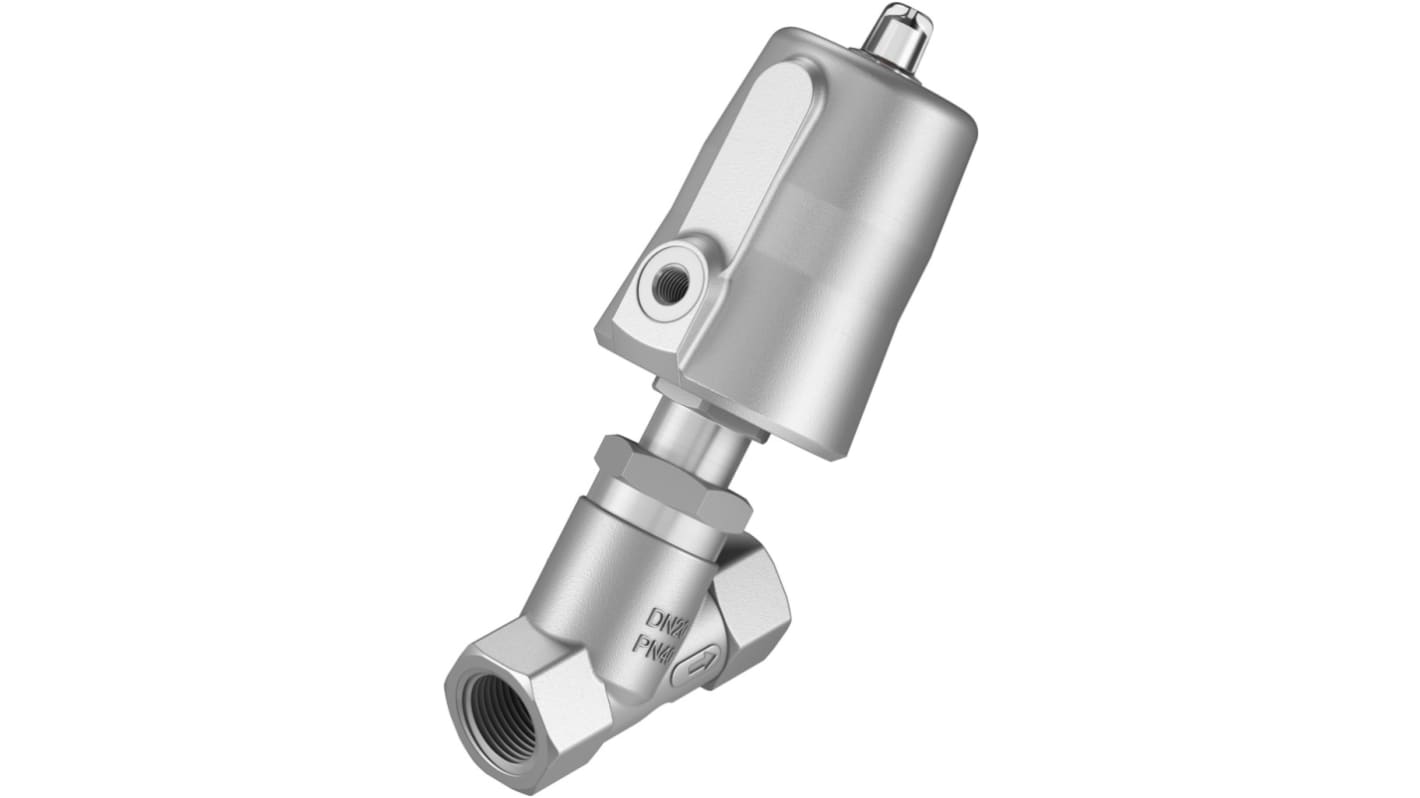

Festo Angle Seat type Pneumatic Actuated Valve, 20 bar, DIN ISO 228, Female 18 mm
- RS Stock No.:
- 203-7064
- Mfr. Part No.:
- VZXF-L-M22C-M-B-G34-180-M1-V4B2T-50-20
- Brand:
- Festo
Subtotal (1 unit)*
£225.46
(exc. VAT)
£270.55
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £225.46 |
*price indicative
- RS Stock No.:
- 203-7064
- Mfr. Part No.:
- VZXF-L-M22C-M-B-G34-180-M1-V4B2T-50-20
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Actuated Valve | |
| Valve Type | Angle Seat | |
| Inlet Connection Type | Threaded | |
| Inlet Port Size | 18 mm | |
| Default Valve Position | NC | |
| Outlet Connection Type | Threaded | |
| Return Type | Spring | |
| Outlet Port Size | 3/4 in | |
| Maximum Operating Pressure | 20 bar | |
| Inlet Thread Standard | DIN ISO 228 | |
| Inlet Port Gender | Female | |
| Outlet Thread Standard | G | |
| Outlet Port Gender | Female | |
| Valve Material | Stainless Steel Cast | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 200°C | |
| Standards/Approvals | Conforms to RoHS, ISO8573-1:2010 (7:4:4) | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Actuated Valve | ||
Valve Type Angle Seat | ||
Inlet Connection Type Threaded | ||
Inlet Port Size 18 mm | ||
Default Valve Position NC | ||
Outlet Connection Type Threaded | ||
Return Type Spring | ||
Outlet Port Size 3/4 in | ||
Maximum Operating Pressure 20 bar | ||
Inlet Thread Standard DIN ISO 228 | ||
Inlet Port Gender Female | ||
Outlet Thread Standard G | ||
Outlet Port Gender Female | ||
Valve Material Stainless Steel Cast | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 200°C | ||
Standards/Approvals Conforms to RoHS, ISO8573-1:2010 (7:4:4) | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Actuated Valve, Spring Return, 20 Bar Maximum Working Pressure - VZXF-L-M22C-M-B-G34-180-M1-V4B2T-50-20, Numeric Part Number: 3538842
This pneumatically actuated angle seat valve is designed for precise control in pneumatic systems. It features a thread size of 1/8 inch and supports a maximum working pressure of 20 Bar. With a spring return mechanism and a versatile mounting orientation, it is suitable for a range of industrial applications. The valve operates effectively within a wide temperature range of -40°C to 200°C.
Features & Benefits
• Robust poppet valve with piston actuator for consistent performance
• Soft sealing principle ensures minimal leakage
• Monostable 2/2 valve function for streamlined operation
• Manages medium pressures up to 20 bar
• Internally threaded pneumatic connection for ease of installation
Applications
• Used for controlling pneumatic systems
• Suitable for non-reversible flow applications
• Appropriate for actuating presses and clamps
• Ideal for industrial automation processes
• Utilised in systems handling compressed air and neutral liquids
Is it compliant with material regulations?
Yes, it adheres to RoHS compliance standards.
