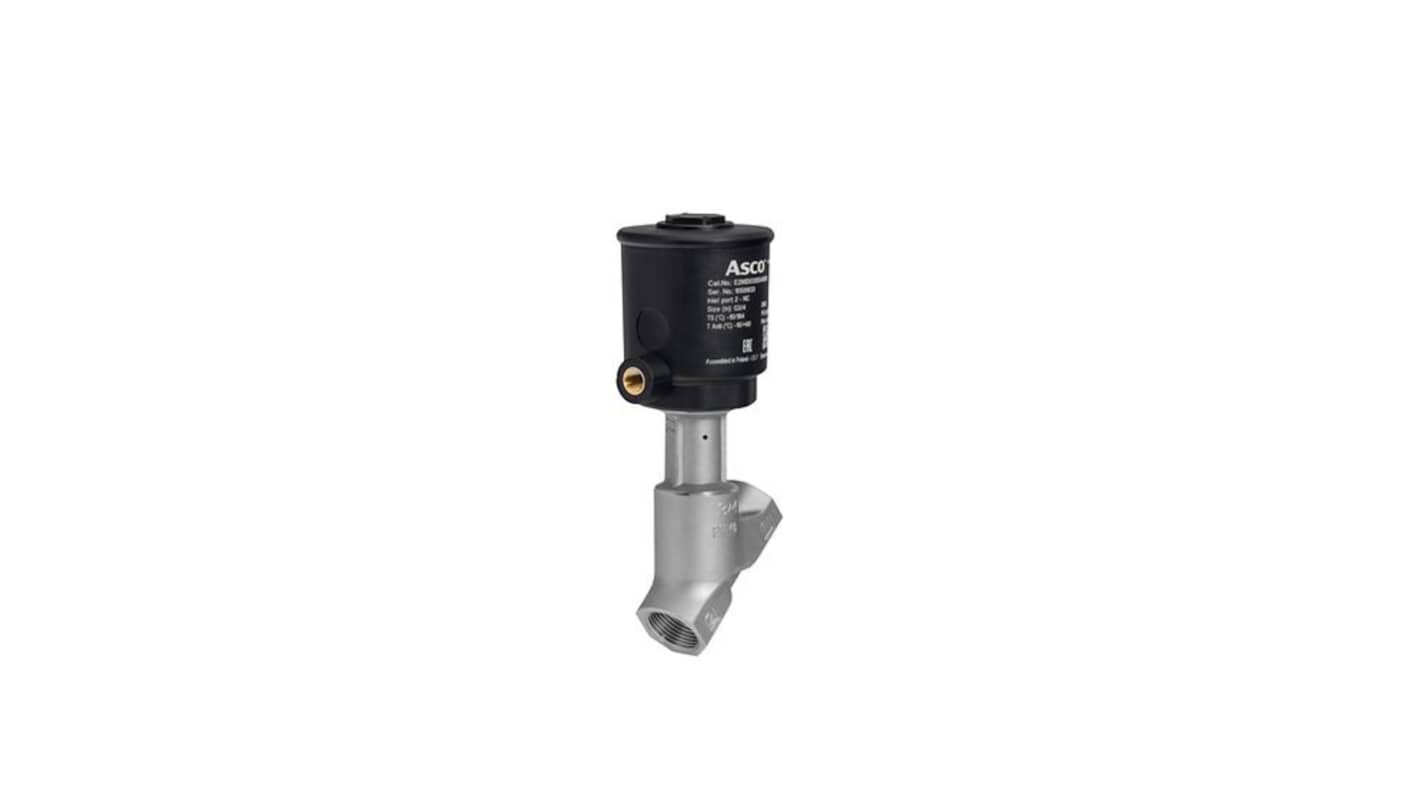

EMERSON – ASCO Angle Seat type Pneumatic Valve, 2.5 bar, Female 2 in
- RS Stock No.:
- 564-202
- Mfr. Part No.:
- E290D0750SA0000
- Brand:
- EMERSON ? ASCO
Subtotal (1 unit)*
£585.98
(exc. VAT)
£703.18
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £585.98 |
*price indicative
- RS Stock No.:
- 564-202
- Mfr. Part No.:
- E290D0750SA0000
- Brand:
- EMERSON ? ASCO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EMERSON ? ASCO | |
| Product Type | Pneumatic Valve | |
| Valve Type | Angle Seat | |
| Inlet Port Size | 2 in | |
| Default Valve Position | NC | |
| Return Type | Spring | |
| Outlet Port Size | 2 in | |
| Maximum Operating Pressure | 2.5 bar | |
| Inlet Port Gender | Female | |
| Outlet Port Gender | Female | |
| Valve Material | Stainless Steel | |
| Outlet Thread Standard | ISO 228/1 & ISO 7/1 | |
| Maximum Operating Temperature | 184°C | |
| Standards/Approvals | EN 161/EN 16678, IEC 61508 SIL 2 for HFT = 0, ASME B16.5, Category 1 (DN > 25) or article 4.3 (DN ≤ 25), Pressure Equipment Directive 2014/68/EU, REACH, ISO 7005, EAC Directives, EN 1092-1, RoHS Compatible, EN ISO 13849-1 | |
| Select all | ||
|---|---|---|
Brand EMERSON ? ASCO | ||
Product Type Pneumatic Valve | ||
Valve Type Angle Seat | ||
Inlet Port Size 2 in | ||
Default Valve Position NC | ||
Return Type Spring | ||
Outlet Port Size 2 in | ||
Maximum Operating Pressure 2.5 bar | ||
Inlet Port Gender Female | ||
Outlet Port Gender Female | ||
Valve Material Stainless Steel | ||
Outlet Thread Standard ISO 228/1 & ISO 7/1 | ||
Maximum Operating Temperature 184°C | ||
Standards/Approvals EN 161/EN 16678, IEC 61508 SIL 2 for HFT = 0, ASME B16.5, Category 1 (DN > 25) or article 4.3 (DN ≤ 25), Pressure Equipment Directive 2014/68/EU, REACH, ISO 7005, EAC Directives, EN 1092-1, RoHS Compatible, EN ISO 13849-1 | ||
RoHS Status: Exempt
The Asco Vanne 290 series next gen features a G or RP connection, combining ISO 228-1 and ISO 7-1 standards. It is a 2-way valve with a normally closed function and a nominal diameter of 50mm, equivalent to 2 inches. The valve includes a plastic actuator with a piloting connection of 63mm and G1/8 inch. It has a threaded body and is constructed with a stainless steel body and disc seal.
Nominal diameter is 50mm equal to 2 inch
Operator diameter is 63mm with piloting connection G1/8 inch
Actuator material is plastic
