SKF SYJ 35 TF Pillow Block Bearing -, 35mm ID
- RS Stock No.:
- 213-2071
- Mfr. Part No.:
- SYJ 35 TF
- Brand:
- SKF
Subtotal (1 unit)*
£49.07
(exc. VAT)
£58.88
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 19 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £49.07 |
*price indicative
- RS Stock No.:
- 213-2071
- Mfr. Part No.:
- SYJ 35 TF
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 35mm | |
Bearing Unit Type | Pillow Block Bearing Unit | |
Material | Cast Iron | |
Centre Height | 47.6mm | |
Mount Hole Size | 17 mm | |
Length | 167mm | |
Overall Height | 93mm | |
Mount Hole Centre-to-Centre | 129mm | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 35mm | ||
Bearing Unit Type Pillow Block Bearing Unit | ||
Material Cast Iron | ||
Centre Height 47.6mm | ||
Mount Hole Size 17 mm | ||
Length 167mm | ||
Overall Height 93mm | ||
Mount Hole Centre-to-Centre 129mm | ||
- COO (Country of Origin):
- IT

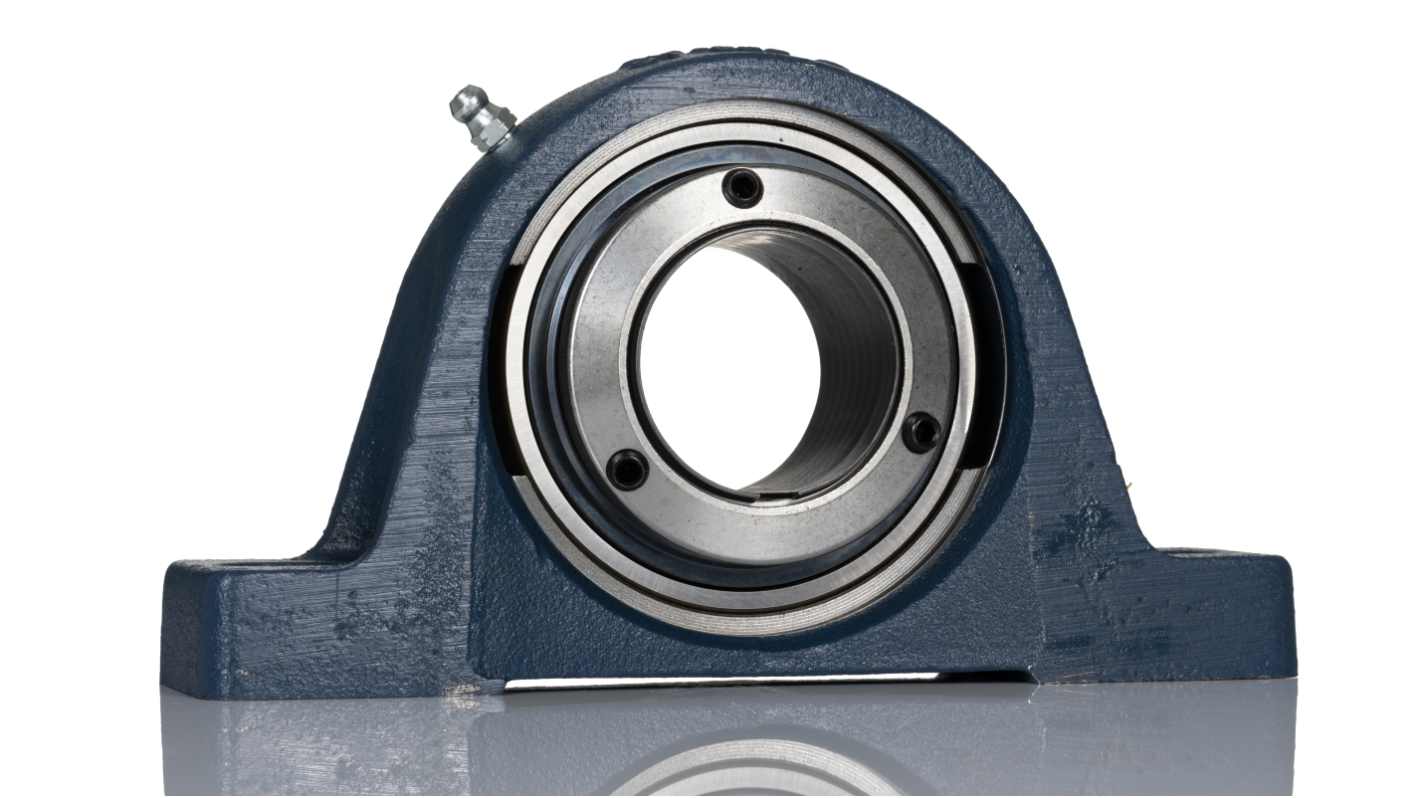

SKF Pillow Block Bearing, 35mm ID, 46mm Overall Width, 5300r/min Limiting Speed - SYJ 35 TF
Are you on the hunt for a support element that also handles rotational movements? Choose this pillow block bearing from SKF. It's a strong choice as it's got the muscle to support static loads up to 15.3kN. To install the assembly, be guided by the two 129mm-distanced pre-drilled holes in its extended inner ring and bolt it down to your desired surface. Once you're happy with the setup, use a screwdriver to tighten the inner ring via the set screw located on top.
Features & Benefits
• Light 1.45kg weight relieves your mounting surface of excess weight
• Cast-iron housing withstands mechanical stress and impacts for a long service life
• Relubrication hole for easy accessibility during maintenance
• Dynamic load rating of 25.5kN for compatibility with heavy axial weights
• Limiting speed of 5300r/min is ideal for high-velocity applications
• Cast-iron housing withstands mechanical stress and impacts for a long service life
• Relubrication hole for easy accessibility during maintenance
• Dynamic load rating of 25.5kN for compatibility with heavy axial weights
• Limiting speed of 5300r/min is ideal for high-velocity applications
Applications
• Paper and pulp mills
• Agricultural equipment
• Automotive manufacturing
• Construction plants
• Agricultural equipment
• Automotive manufacturing
• Construction plants
Is this pillow block bearing sealed?
Yes. It's sealed and has a flinger on both sides of the unit, so it keeps contaminants at arm's length.
