SKF SY 505 M Plummer Block House -, 52mm ID
- RS Stock No.:
- 213-2050
- Mfr. Part No.:
- SY 505 M
- Brand:
- SKF
22 In stock - FREE next working day delivery available
7 available from Europe for delivery within 1 working day(s).
Added
Price Each
£15.98
(exc. VAT)
£19.18
(inc. VAT)
| Units | Per unit |
| 1 + | £15.98 |
- RS Stock No.:
- 213-2050
- Mfr. Part No.:
- SY 505 M
- Brand:
- SKF
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details

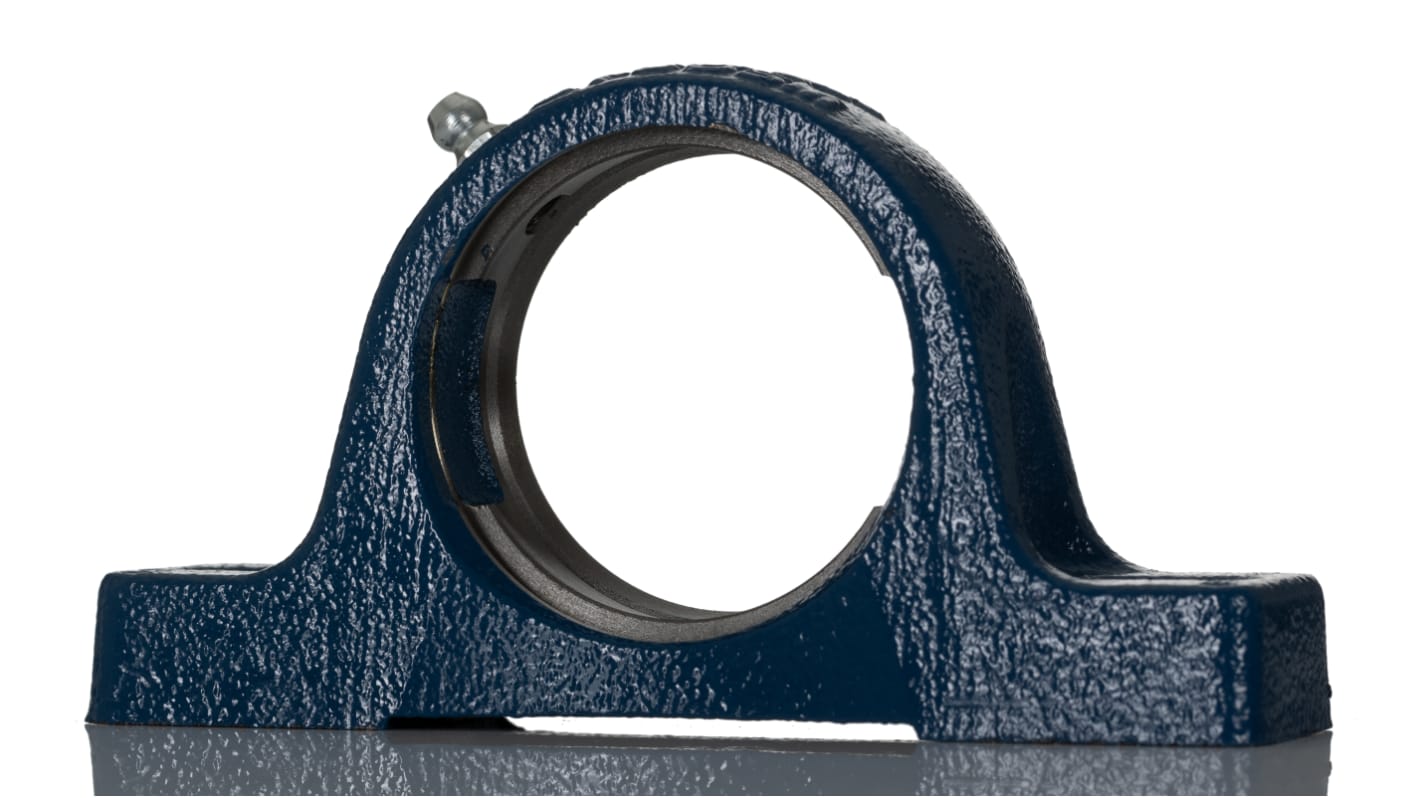

SKF Plummer Block Housing, Cast Iron, 52mm Inside Diameter, 36.5mm Centre Height - SY 505 M
Are your axles having trouble handling weighty processes? Try this plummer block housing from SKF to get things moving. Made from strong cast iron, it provides a sturdy base for your bearing. There's a cylindrical hole through the middle with a 52mm bore for seating a bearing insert with your choice of single (209-4241) or double(339-8912) sleeve extension. The combined unit supports both moving and static forces, so it's just the thing to use in fans, cranes and conveyors.
Features & Benefits
• Bolt holes on either side make it a doddle to mount on surfaces
• Pre-greased, ready for installation straight out of the box
• Relubrication hole to keep machines well-oiled and applications running smoothly
• Pre-greased, ready for installation straight out of the box
• Relubrication hole to keep machines well-oiled and applications running smoothly
Applications
• Industrial automation
• Plant machinery
• Assembly lines
• HVAC systems
• Plant machinery
• Assembly lines
• HVAC systems
How wide is this plummer block?
The block has a narrow width of 36mm, so it fits easily into small spaces.
How can I protect exposed shaft ends when I'm using this block?
Clip on some end covers (339-8855) to protect open shaft ends from chemicals, dirt and moisture.
Specifications
Attribute | Value |
|---|---|
| Inside Diameter | 52mm |
| Bearing Unit Type | Pillow Block |
| Material | Cast Iron |
| Centre Height | 36.5mm |
| Mount Hole Size | 19.51 mm |
| Length | 219mm |
| Overall Height | 70.1mm |
| Mount Hole Centre-to-Centre | 110.01mm |
