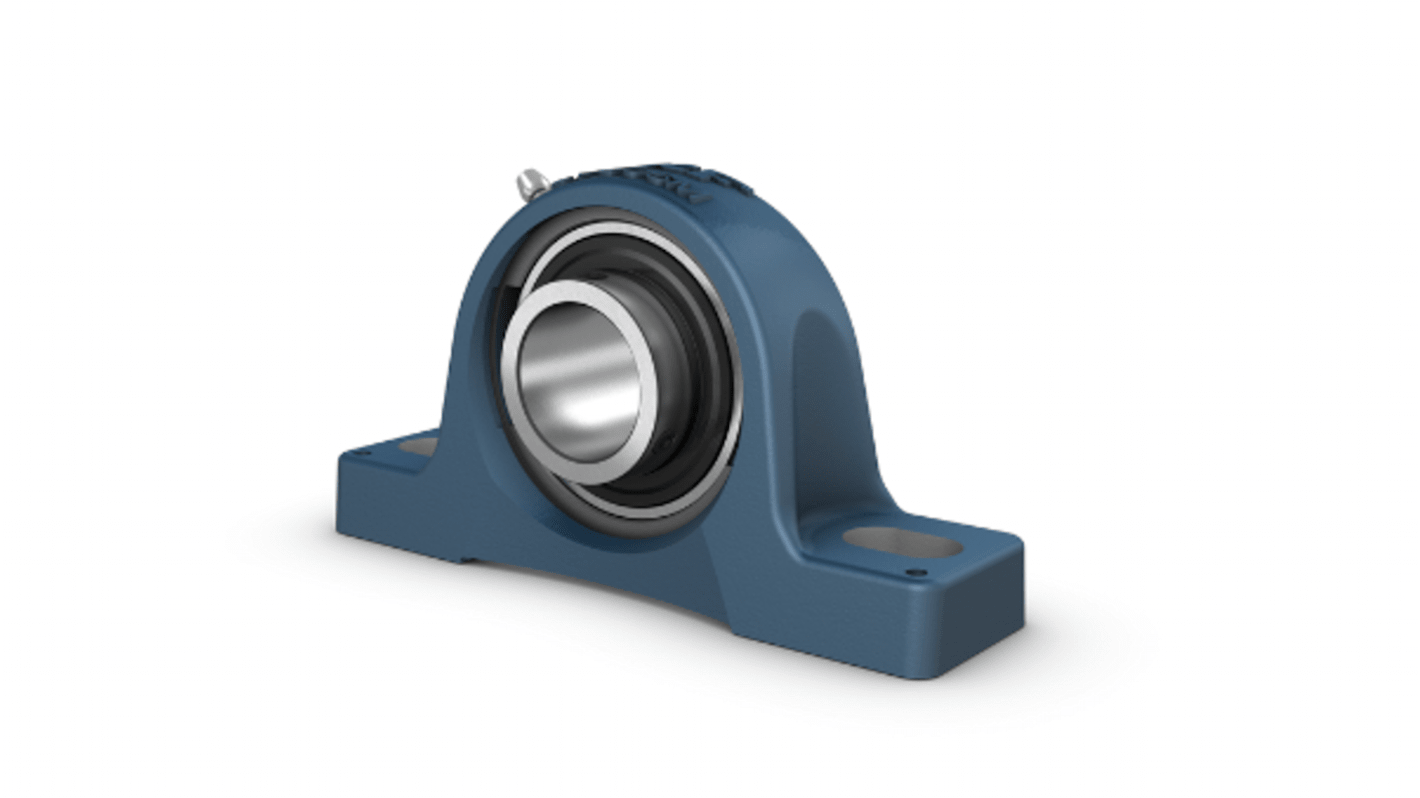

SKF SY 35 LF Pillow Block Bearing -, 35 mm ID
- RS Stock No.:
- 213-2038
- Mfr. Part No.:
- SY 35 LF
- Brand:
- SKF
Subtotal (1 unit)*
£75.62
(exc. VAT)
£90.74
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £75.62 |
*price indicative
- RS Stock No.:
- 213-2038
- Mfr. Part No.:
- SY 35 LF
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 35mm | |
| Product Type | Pillow Block Bearing | |
| Material | Steel | |
| Centre Height | 47.6mm | |
| Static Load Rating | 15.3kN | |
| Mount Hole Size | 14 mm | |
| Locking Type | ConCentra | |
| Length | 187mm | |
| Dynamic Load Rating | 25.5kN | |
| Depth | 45mm | |
| End Type | Open | |
| Mount Hole Centre-to-Centre | 126mm | |
| Number of Bolts | 2 | |
| Height | 93mm | |
| Bore Type | Cylindrical | |
| Series | SY | |
| Standards/Approvals | No | |
| Limiting Speed | 5300rpm | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 35mm | ||
Product Type Pillow Block Bearing | ||
Material Steel | ||
Centre Height 47.6mm | ||
Static Load Rating 15.3kN | ||
Mount Hole Size 14 mm | ||
Locking Type ConCentra | ||
Length 187mm | ||
Dynamic Load Rating 25.5kN | ||
Depth 45mm | ||
End Type Open | ||
Mount Hole Centre-to-Centre 126mm | ||
Number of Bolts 2 | ||
Height 93mm | ||
Bore Type Cylindrical | ||
Series SY | ||
Standards/Approvals No | ||
Limiting Speed 5300rpm | ||
The SKF SY design pillow (Plummer y-bearings) block ball bearing units consist of an insert bearing mounted in a housing which can be bolted to support surface. The insert bearing unit has 35mm inside diameter and 160mm overall length. It is based on sealed deep groove ball bearings in the 62 and 63 series but have a convex outer ring and in most cases an extended inner ring with a specific locking device, enabling quick and easy mounting onto the shaft.
Can withstand sufficient torque as per the industry standards for mounting purposes
Availability of appropriate seals and end covers
Dimensions are as per the suitable application as prescribed by the manufacturer
Uses Bearing Steel as material
Has a cylindrical type bore
