SKF P2BC 50M-CPSS-DFH Pillow Block Bearing -, 50 mm ID
- RS Stock No.:
- 213-1995
- Mfr. Part No.:
- P2BC 50M-CPSS-DFH
- Brand:
- SKF
Subtotal (1 unit)*
£356.20
(exc. VAT)
£427.44
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 14 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £356.20 |
*price indicative
Our Better World range features products that make it easy for you to make a greener product choice you can trust.
- RS Stock No.:
- 213-1995
- Mfr. Part No.:
- P2BC 50M-CPSS-DFH
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Pillow Block Bearing | |
| Inside Diameter | 50mm | |
| Material | Stainless Steel | |
| Static Load Rating | 23.2kN | |
| Centre Height | 57.2mm | |
| Locking Type | Set Screw | |
| Mount Hole Size | 17.5 mm | |
| Length | 81mm | |
| Depth | 76mm | |
| Dynamic Load Rating | 29.6kN | |
| End Type | Closed | |
| Mount Hole Centre-to-Centre | 159.5mm | |
| Number of Bolts | 2 | |
| Series | P2BC | |
| Standards/Approvals | No | |
| Height | 110.5mm | |
| Bore Type | Cylindrical | |
| Better World Product | Yes | |
| Better World Claim | Extended Product Life | |
| Limiting Speed | 500rpm | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Pillow Block Bearing | ||
Inside Diameter 50mm | ||
Material Stainless Steel | ||
Static Load Rating 23.2kN | ||
Centre Height 57.2mm | ||
Locking Type Set Screw | ||
Mount Hole Size 17.5 mm | ||
Length 81mm | ||
Depth 76mm | ||
Dynamic Load Rating 29.6kN | ||
End Type Closed | ||
Mount Hole Centre-to-Centre 159.5mm | ||
Number of Bolts 2 | ||
Series P2BC | ||
Standards/Approvals No | ||
Height 110.5mm | ||
Bore Type Cylindrical | ||
Better World Product Yes | ||
Better World Claim Extended Product Life | ||
Limiting Speed 500rpm | ||
- COO (Country of Origin):
- IT

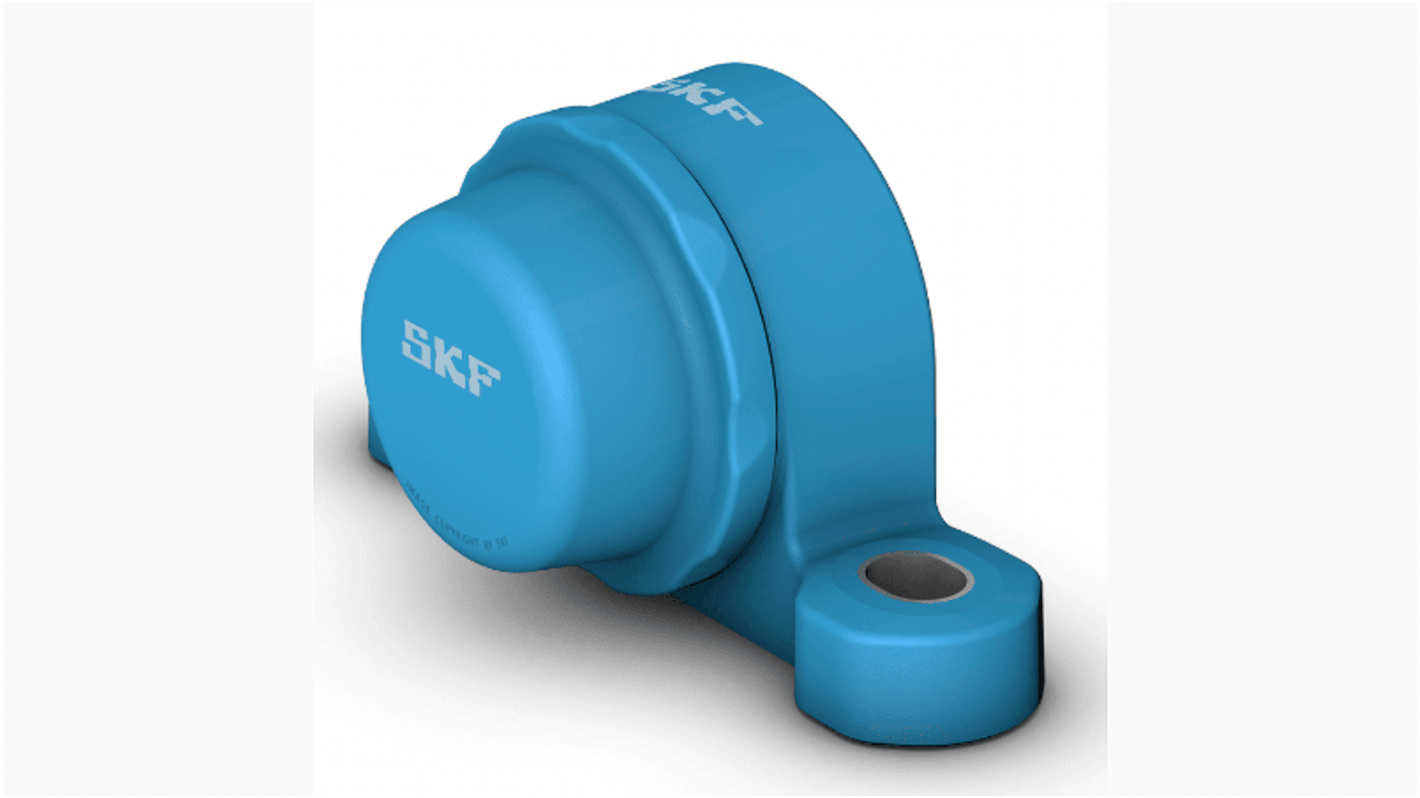

SKF Pillow block ball bearing unit, 50mm ID, 81mm length - P2BC 50M-CPSS-DFH
SKF pillow or plummer blocks are commonly used in areas where space is limited. They are designed with an insert bearing made from stainless steel and are mounted in housing. As this bearing is part of SKF's Food Line Range the housing is made from reinforced polypropylene which is food safe and suitable for wet environments.
Features and Benefits
• Suitable for use in wet conditions because the bearing is housed in reinforced polypropylene.
• Hygienic design features make the units perfectly suited for food and beverage applications.
• Resistant to chemical detergents and contaminants to ensure long-lasting use.
Typical Applications
Pillow block ball bearing units are typically used in smaller areas with limited space. Some applications of pillow blocks include more lightweight applications rather than heavy loads.
What are pillow blocks designed for?
Pillow or plummer blocks are designed to safely mount a bearing that lets its outer ring not move but allows the inner ring to rotate. The housing is bolted by holes in the base and the bearing housings can be either split type or solid type.
Why choose the SKF Food Line range?
The SKF Food Line Range of ball bearings and bearing units provide high-performance products that are hygienic and durable. SKFs Food Line Range is perfect for demanding food and beverage environments and allow you to get the best performance out of your manufacturing equipment such as industrial mixers. SKFs Food Line Range of bearings and bearing units prevent bacteria growth and corrosion through thorough and frequent washdowns.
Food Line Range bearing units are made from reinforced polypropylene housings which ensures hygiene and safety in wet conditions. This dedicated food range was developed to address the need for hygienic bearings, they do not collect and grow bacteria and can be used safely and efficiently. SKFs Food Line range addresses environmental concerns regarding contaminants and lubricants as this range of products offer the potential for a relubrication-free solution.
