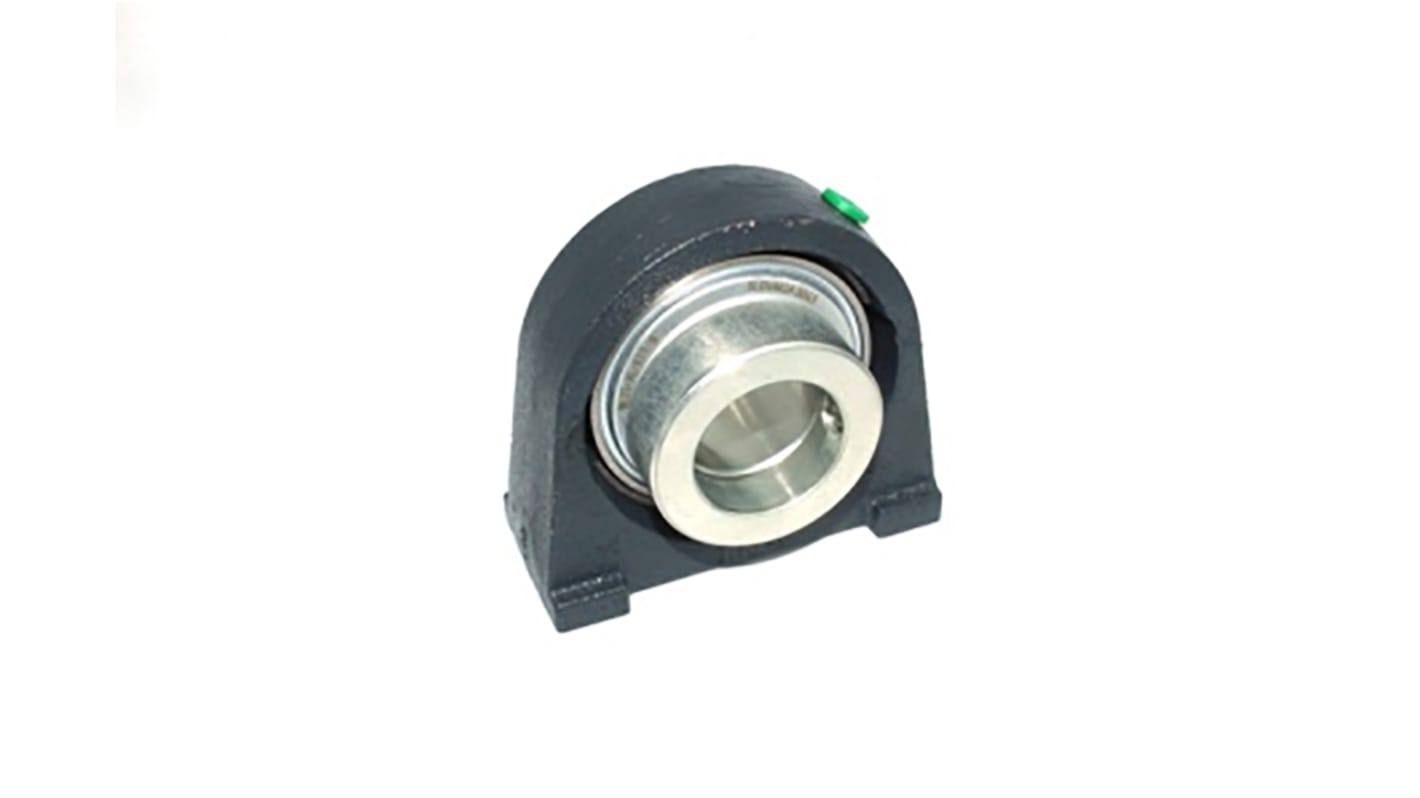

INA RSHE35-XL-N Plummer Block House -, 35mm ID
- RS Stock No.:
- 191-4466
- Mfr. Part No.:
- RSHE35-XL-N
- Brand:
- INA
Bulk discount available
Subtotal (1 unit)*
£75.16
(exc. VAT)
£90.19
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 04 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £75.16 |
5 - 9 | £72.15 |
10 - 24 | £70.64 |
25 + | £69.14 |
*price indicative
- RS Stock No.:
- 191-4466
- Mfr. Part No.:
- RSHE35-XL-N
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | INA | |
Inside Diameter | 35mm | |
Bearing Unit Type | Plummer Block | |
Material | Cast Iron | |
Centre Height | 47.6mm | |
Mount Hole Size | M10 | |
Length | 103mm | |
Depth | 51.3mm | |
Overall Height | 93mm | |
Mount Hole Centre-to-Centre | 82.6mm | |
Select all | ||
---|---|---|
Brand INA | ||
Inside Diameter 35mm | ||
Bearing Unit Type Plummer Block | ||
Material Cast Iron | ||
Centre Height 47.6mm | ||
Mount Hole Size M10 | ||
Length 103mm | ||
Depth 51.3mm | ||
Overall Height 93mm | ||
Mount Hole Centre-to-Centre 82.6mm | ||
INA housing units are available as plummer block, flanged and take-up housing units in numerous different designs. The units are ready-to-fit and comprise INA cast iron or sheet steel housings in which INA radial insert ball bearings are fitted. In order to ensure function and reliability under all operating conditions, the bearings and housings are matched to each other. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, housing units can compensate for static angular misalignment of the shaft. The units are used predominantly as locating bearings, but are also suitable as non-locating bearings under low loads and speeds. The housings are screw mounted on the adjacent construction. Less stringent tolerances are sufficient for the screw mounting surfaces.
