SKF SYFWK 30 LTHR Pillow Block Bearing -, 30 mm ID
- RS Stock No.:
- 125-2432
- Mfr. Part No.:
- SYFWK 30 LTHR
- Brand:
- SKF
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 125-2432
- Mfr. Part No.:
- SYFWK 30 LTHR
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 30mm | |
| Product Type | Pillow Block Bearing | |
| Material | Composite For Food and Beverage | |
| Static Load Rating | 11.2kN | |
| Centre Height | 42.9mm | |
| Mount Hole Size | M10 | |
| Length | 101mm | |
| Depth | 42.5mm | |
| Dynamic Load Rating | 16.3kN | |
| Mount Hole Centre-to-Centre | 76.2mm | |
| Height | 84mm | |
| Series | SYFWK 30 LTHR | |
| Standards/Approvals | No | |
| Limiting Speed | 3800rpm | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 30mm | ||
Product Type Pillow Block Bearing | ||
Material Composite For Food and Beverage | ||
Static Load Rating 11.2kN | ||
Centre Height 42.9mm | ||
Mount Hole Size M10 | ||
Length 101mm | ||
Depth 42.5mm | ||
Dynamic Load Rating 16.3kN | ||
Mount Hole Centre-to-Centre 76.2mm | ||
Height 84mm | ||
Series SYFWK 30 LTHR | ||
Standards/Approvals No | ||
Limiting Speed 3800rpm | ||

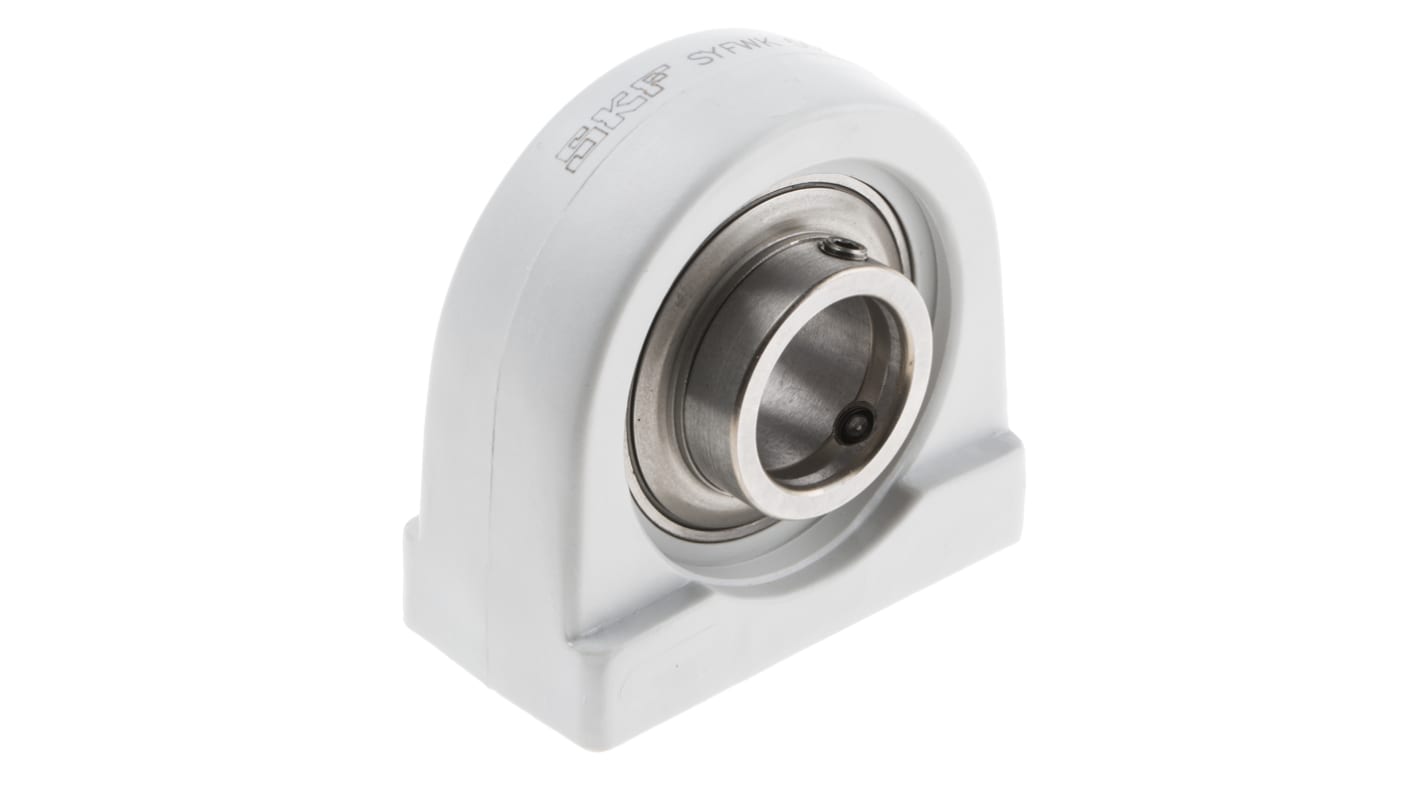

SKF Pillow-Block Ball Bearing Unit, 30mm ID, M10 Mount Hole - SYFWK 30 LTHR
This pillow-block ball bearing from SKF is a pedestal that provides support for a rotating shaft. It consists of an insert bearing mounted in a housing. This can be bolted to a support surface by the included mounting holes for quick and convenient assembly. The housing is made from a thermoplastic material that's strong, lightweight and highly resistant to chemicals for use in harsh environments. It features embedded stainless-steel coils to improve the unit's resistance to corrosion and allow it to support heavy loads. A polyamide-filled base allows surface-to-surface mounting to eliminate gaps and contaminant build-up and ensure reliable performance.
• Seals prevent detergent, water and other contaminants from entering the bearing's cavity while keeping lubricants inside for better performance
• Made from food-safe components for use in the food and beverage processing industries
Applications
• Brewing and bottling
• Packaging and production lines
• Medical equipment
Will this bearing leak grease?
Thanks to its superior sealing technology, there's very little risk of this bearing dripping grease when used correctly. This reduces the chance of premature bearing failure and improves productivity, as there's less need for re-lubrication and maintenance.
