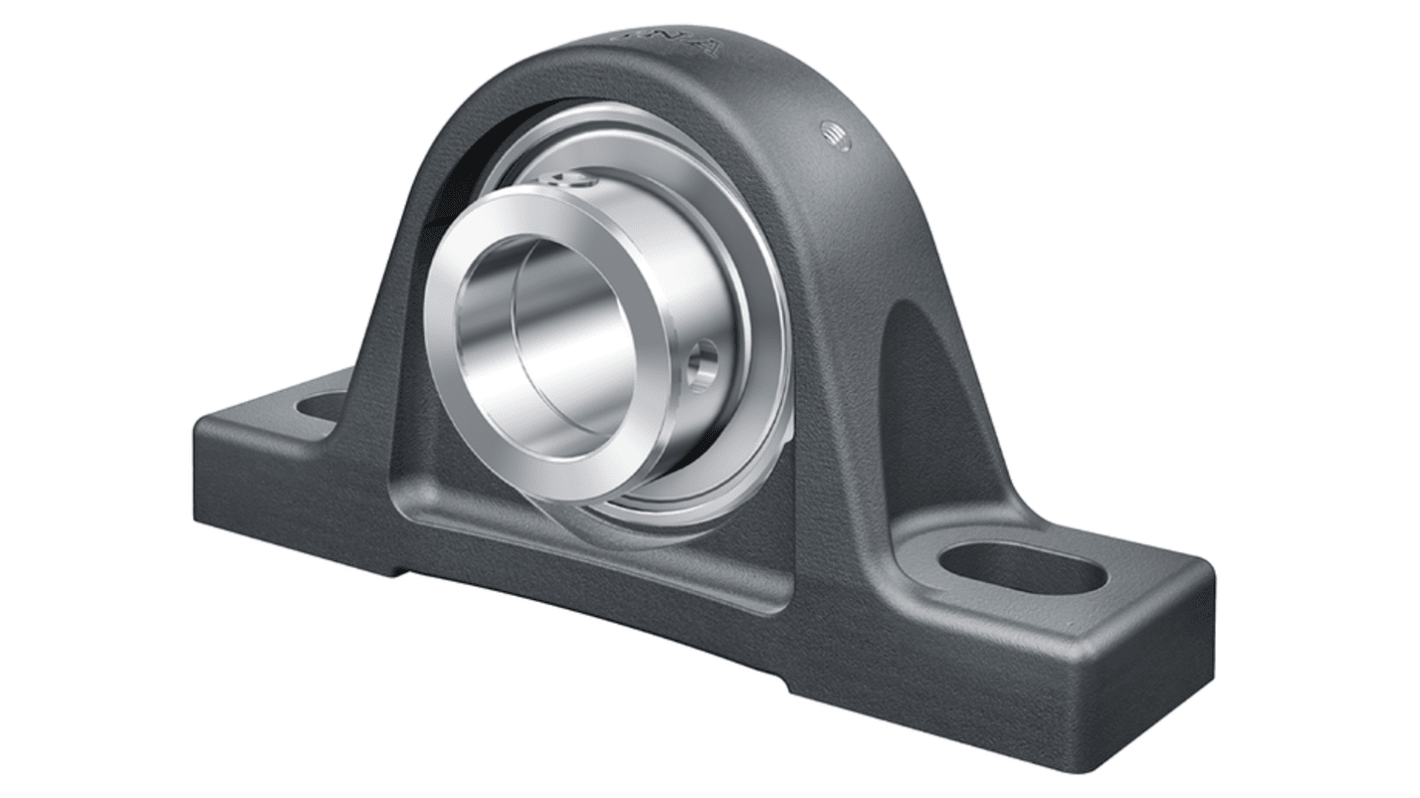

INA RASEY25-XL-N Plummer Block Housings -, 25 mm ID
- RS Stock No.:
- 649-190
- Mfr. Part No.:
- RASEY25-XL-N
- Brand:
- INA
Subtotal (1 unit)*
£39.48
(exc. VAT)
£47.38
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £39.48 |
*price indicative
- RS Stock No.:
- 649-190
- Mfr. Part No.:
- RASEY25-XL-N
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | INA | |
| Product Type | Plummer Block Housings | |
| Material | Cast Iron | |
| Centre Height | 36.5mm | |
| Mount Hole Size | 11 mm | |
| Length | 130mm | |
| Depth | 36mm | |
| Series | RASEY | |
| Standards/Approvals | No | |
| Height | 70mm | |
| Select all | ||
|---|---|---|
Brand INA | ||
Product Type Plummer Block Housings | ||
Material Cast Iron | ||
Centre Height 36.5mm | ||
Mount Hole Size 11 mm | ||
Length 130mm | ||
Depth 36mm | ||
Series RASEY | ||
Standards/Approvals No | ||
Height 70mm | ||
RoHS Status: Exempt
The INA Plummer block housing unit is built with a robust GG grey cast iron housing and features a radial insert ball bearing with grub screws in the inner ring for secure shaft locking. Outfitted with R seals for reliable sealing performance and an undercut groove for end caps, it is ideal for use in light to medium-duty machinery applications. With a bore diameter of 25 mm and an operating temperature range from –20 °C to +120 °C, it offers dependable performance across varied industrial environments.
M6 connection thread for lubrication access
Includes KASK05 protecting cap for additional safeguarding
Durable construction
