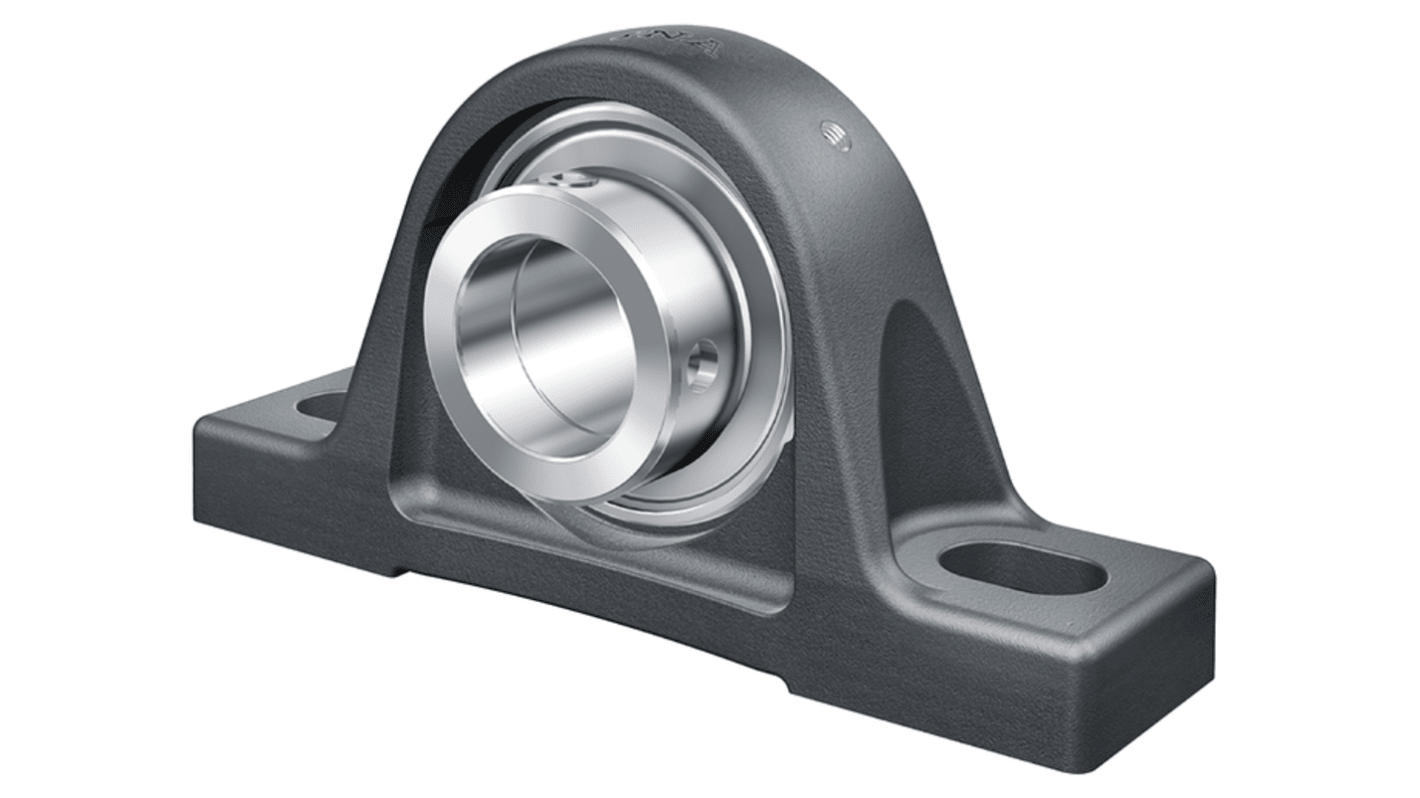

INA RASE35-XL-N Plummer Block Housings -, 35 mm ID
- RS Stock No.:
- 649-185
- Mfr. Part No.:
- RASE35-XL-N
- Brand:
- INA
Subtotal (1 unit)*
£63.71
(exc. VAT)
£76.45
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 7 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £63.71 |
*price indicative
- RS Stock No.:
- 649-185
- Mfr. Part No.:
- RASE35-XL-N
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | INA | |
| Product Type | Plummer Block Housings | |
| Material | Cast Iron | |
| Centre Height | 47.6mm | |
| Mount Hole Size | 14 mm | |
| Length | 163mm | |
| Depth | 45mm | |
| Series | RASE | |
| Standards/Approvals | No | |
| Height | 93mm | |
| Select all | ||
|---|---|---|
Brand INA | ||
Product Type Plummer Block Housings | ||
Material Cast Iron | ||
Centre Height 47.6mm | ||
Mount Hole Size 14 mm | ||
Length 163mm | ||
Depth 45mm | ||
Series RASE | ||
Standards/Approvals No | ||
Height 93mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- VN
The INA Plummer block housing unit is built from high-strength grey cast iron and includes a radial insert ball bearing with an eccentric locking collar for secure shaft positioning. Designed for 35 mm diameter shafts, it features R seals for enhanced sealing efficiency in harsh environments. This unit ensures long-term operational reliability and is suited for applications with temperatures ranging from -20 °C to 120 °C.
M6 connection thread for lubrication access
Includes KASK07 protecting cap for additional safeguarding
Durable construction
