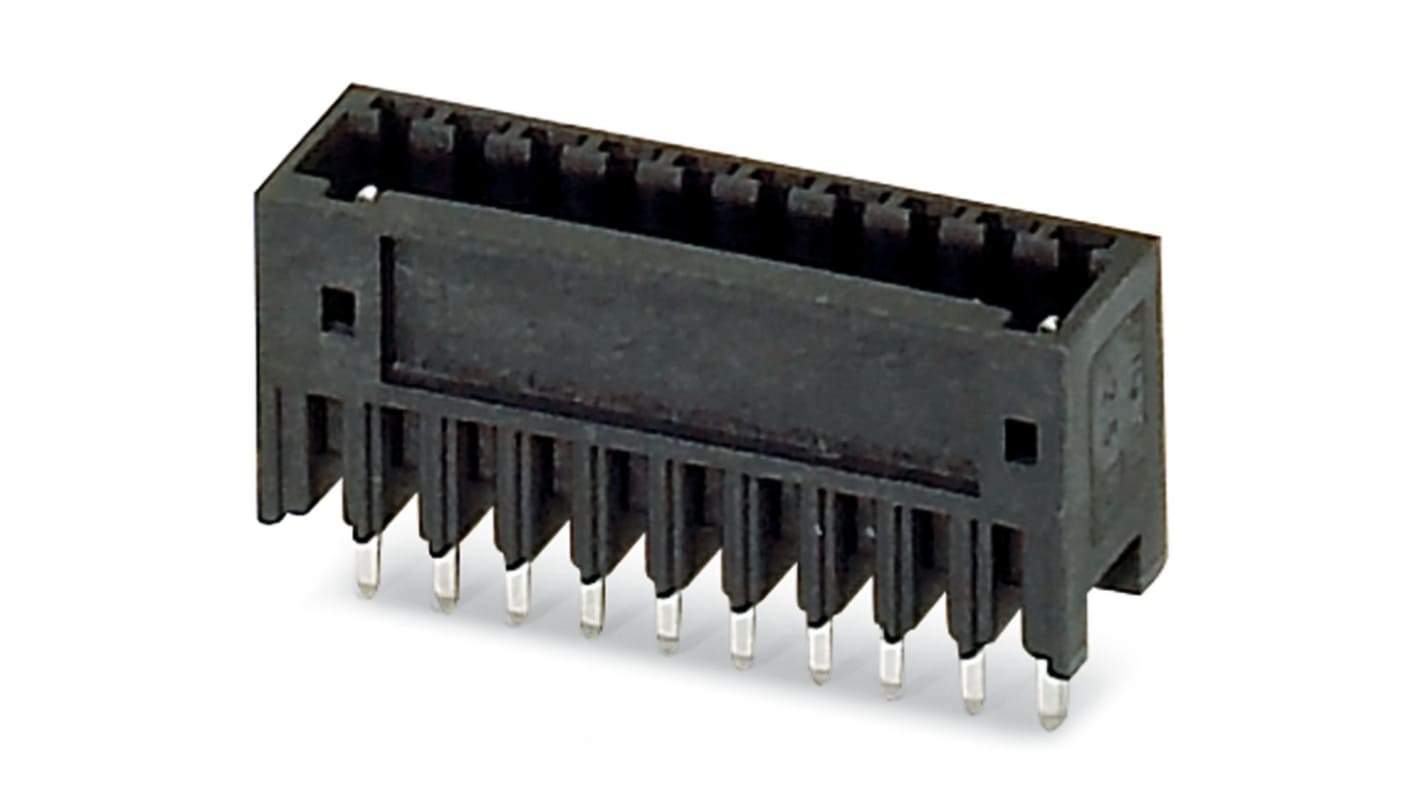

Phoenix Contact 2.5mm Pitch 12 Way Pluggable Terminal Block, Header, Solder Termination
- RS Stock No.:
- 859-4272
- Mfr. Part No.:
- 1963638
- Brand:
- Phoenix Contact
Available to back order for despatch 20/09/2024
Price Each (In a Box of 50)
£3.064
(exc. VAT)
£3.677
(inc. VAT)
Units | Per unit | Per Box* |
|---|---|---|
| 50 + | £3.064 | £153.20 |
*price indicative
- RS Stock No.:
- 859-4272
- Mfr. Part No.:
- 1963638
- Brand:
- Phoenix Contact
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
PCB headers, nominal cross section: 0.5 mm², color: black, nominal current: 4 A, rated voltage (III/2): 160 V, contact surface: Tin, type of contact: Male connector, Number of potentials: 12, Number of rows: 1, Number of positions per row: 12, number of connections: 12, product range: MCV 0,5/..-G-THT, pitch: 2.5 mm, mounting: THR soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, Stecksystem: MICRO COMBICON - FK-MC 0,5, Locking: without, type of packaging: packed in cardboard, User information and design recommendations for through hole reflow technology can be found under: Downloads
Specifications
Attribute | Value |
|---|---|
| Pluggable Terminal Block Type | Header |
| Number of Contacts | 12 |
| Pitch | 2.5mm |
| Series | MCV 0.5/12-G-2.5 THT |
| Termination Method | Solder |
| Current Rating | 4.0A |
| Voltage Rating | 160.0 V |
| Contact Material | Tin |
