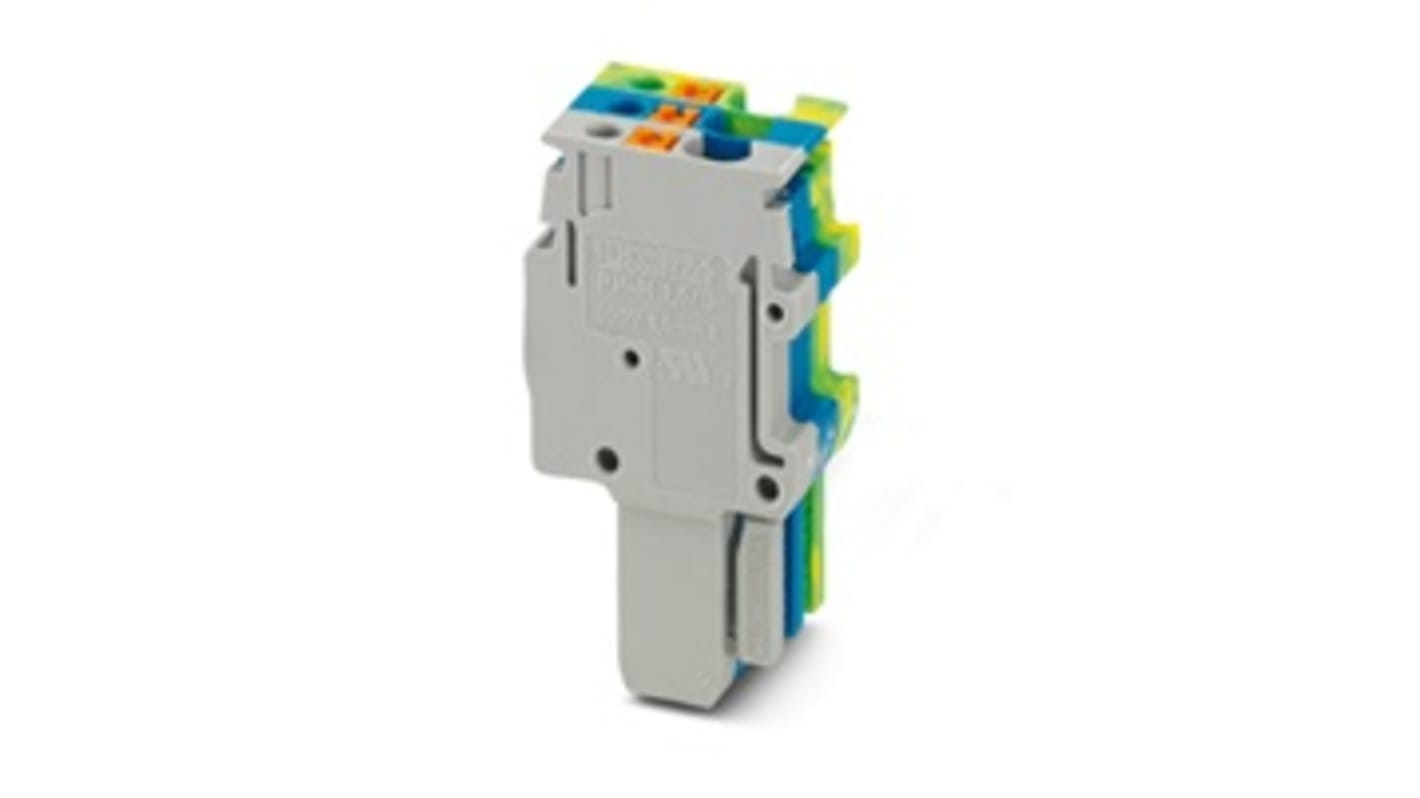

Phoenix Contact PP-H 1.5/S/3 (1GY/1BU/1GNYE) Series Pluggable Terminal Block, 3-Contact, 3.5 mm Pitch, 1 Row, 3062113
- RS Stock No.:
- 856-9879
- Mfr. Part No.:
- 3062113
- Brand:
- Phoenix Contact
Subtotal (1 box of 50 units)*
£150.45
(exc. VAT)
£180.55
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 22 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 50 + | £3.009 | £150.45 |
*price indicative
- RS Stock No.:
- 856-9879
- Mfr. Part No.:
- 3062113
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Pluggable Terminal Block | |
| Number of Contacts | 3 | |
| Pitch | 3.5mm | |
| Current | 17.5A | |
| Number of Rows | 1 | |
| Minimum Wire Size mm² | 0.14mm² | |
| Housing Material | Polyamide | |
| Connector Gender | Male | |
| Maximum Wire Size mm² | 1.5mm² | |
| Minimum Wire Size AWG | 26AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Colour | Green, Blue, Yellow, Grey | |
| Wire Connection Method | Push-in | |
| Voltage | 500V | |
| Standards/Approvals | RoHS | |
| Series | PP-H 1.5/S/3 (1GY/1BU/1GNYE) | |
| Depth | 31.3mm | |
| Length | 16.5mm | |
| Width | 10.5mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Pluggable Terminal Block | ||
Number of Contacts 3 | ||
Pitch 3.5mm | ||
Current 17.5A | ||
Number of Rows 1 | ||
Minimum Wire Size mm² 0.14mm² | ||
Housing Material Polyamide | ||
Connector Gender Male | ||
Maximum Wire Size mm² 1.5mm² | ||
Minimum Wire Size AWG 26AWG | ||
Maximum Wire Size AWG 16AWG | ||
Colour Green, Blue, Yellow, Grey | ||
Wire Connection Method Push-in | ||
Voltage 500V | ||
Standards/Approvals RoHS | ||
Series PP-H 1.5/S/3 (1GY/1BU/1GNYE) | ||
Depth 31.3mm | ||
Length 16.5mm | ||
Width 10.5mm | ||
- COO (Country of Origin):
- PL
Terminal Block Clipline Series
A professional range from Phoenix’s Clipline series of Non-Fuse Terminal Blocks. All products are highly reliable and excellent quality.
Features and Benefits
• Push in termination method
• Push in connection method
