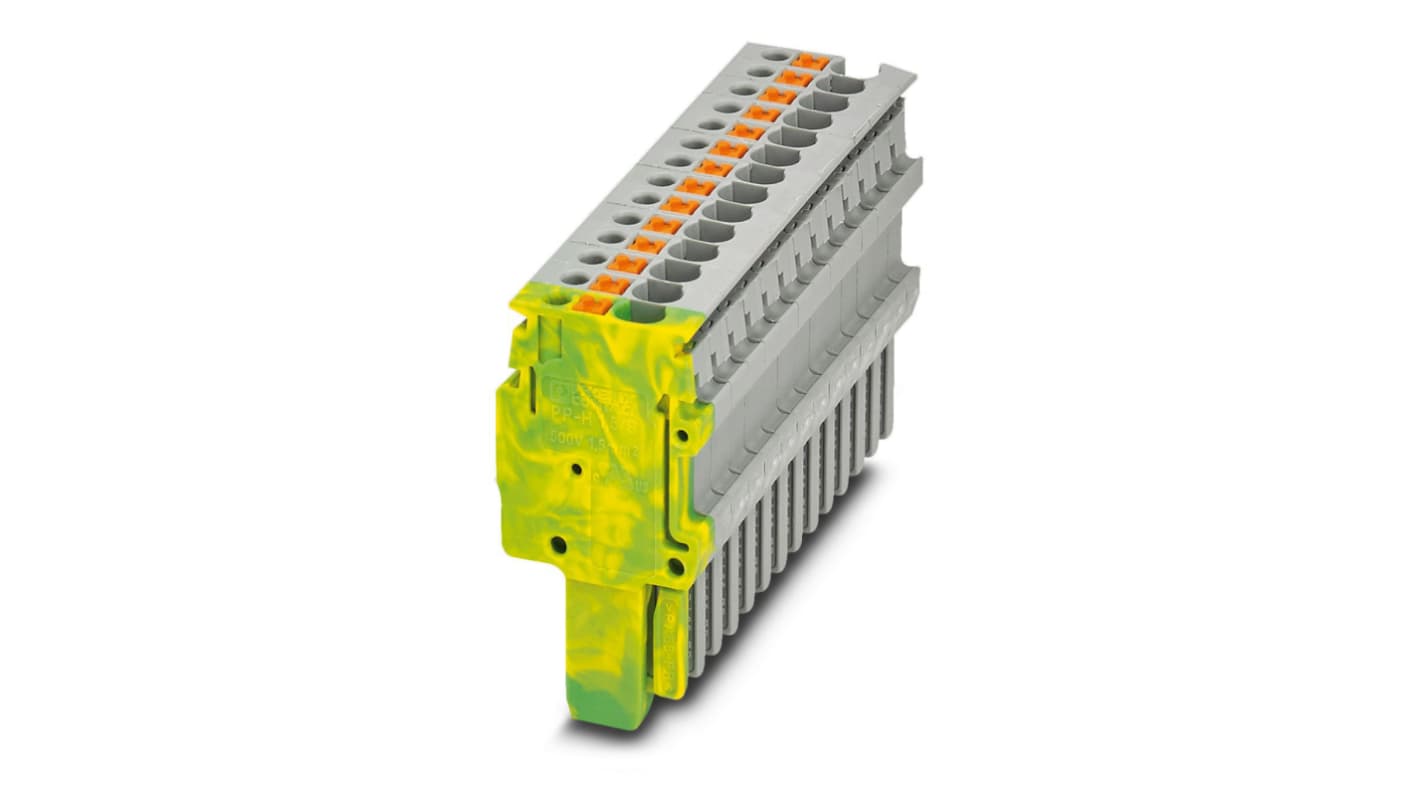

Phoenix Contact PP-H 1.5/S/14 (1GNYE/13GY) Series Pluggable Terminal Block, 14-Contact, 3.5 mm Pitch, 1 Row, 3212634
- RS Stock No.:
- 856-2436
- Mfr. Part No.:
- 3212634
- Brand:
- Phoenix Contact
Subtotal (1 box of 10 units)*
£70.04
(exc. VAT)
£84.05
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 28 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 10 + | £7.004 | £70.04 |
*price indicative
- RS Stock No.:
- 856-2436
- Mfr. Part No.:
- 3212634
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 14 | |
| Product Type | Pluggable Terminal Block | |
| Pitch | 3.5mm | |
| Number of Rows | 1 | |
| Current | 17.5A | |
| Minimum Wire Size mm² | 0.14mm² | |
| Housing Material | Polyamide | |
| Maximum Wire Size mm² | 1.5mm² | |
| Connector Gender | Male | |
| Minimum Wire Size AWG | 26AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Colour | Yellow, Grey, Green | |
| Wire Connection Method | Push-in | |
| Voltage | 500V | |
| Length | 16.5mm | |
| Series | PP-H 1.5/S/14 (1GNYE/13GY) | |
| Standards/Approvals | RoHS | |
| Depth | 31.3mm | |
| Width | 49mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 14 | ||
Product Type Pluggable Terminal Block | ||
Pitch 3.5mm | ||
Number of Rows 1 | ||
Current 17.5A | ||
Minimum Wire Size mm² 0.14mm² | ||
Housing Material Polyamide | ||
Maximum Wire Size mm² 1.5mm² | ||
Connector Gender Male | ||
Minimum Wire Size AWG 26AWG | ||
Maximum Wire Size AWG 16AWG | ||
Colour Yellow, Grey, Green | ||
Wire Connection Method Push-in | ||
Voltage 500V | ||
Length 16.5mm | ||
Series PP-H 1.5/S/14 (1GNYE/13GY) | ||
Standards/Approvals RoHS | ||
Depth 31.3mm | ||
Width 49mm | ||
- COO (Country of Origin):
- PL
Plug, nom. voltage: 500 V, nominal current: 17.5 A, connection method: Push-in connection, number of connections: 14, number of positions: 14, cross section: 0.14 mm² - 1.5 mm², AWG: 26 - 14, width: 49 mm, height: 31.3 mm, color: green/yellow-gray
The Push-in technology COMBI plugs for self-assembly provide solutions that users can implement themselves
