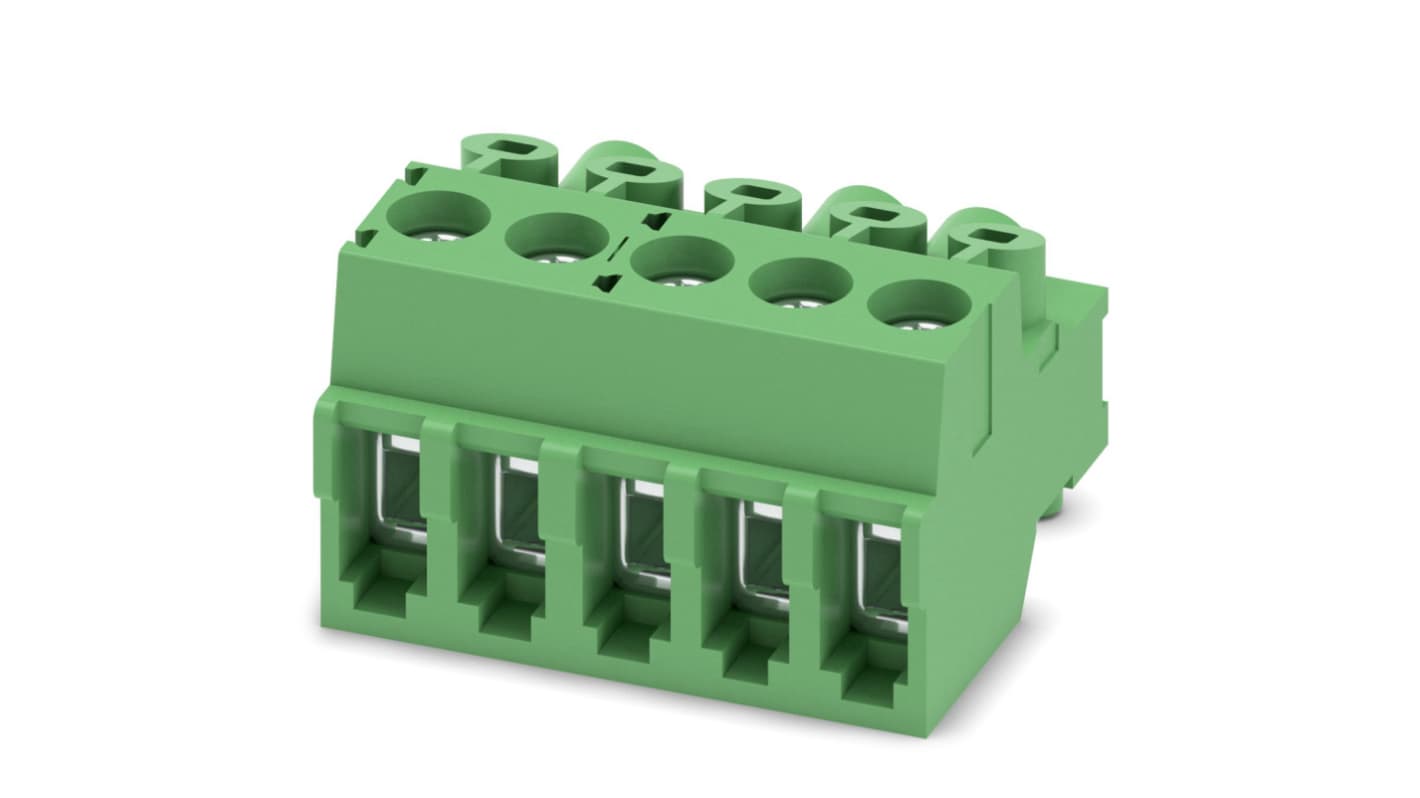

Phoenix Contact PT 1.5/ 5-PVH-3.5-A Series Pluggable Terminal Block, 5-Contact, 3.5 mm Pitch, 1 Row, 1984196

View all Pluggable Terminal Blocks
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Sponsored
Phoenix Contact jumper bars for terminals
Phoenix Contact
Phoenix Contact Jumper Bars
Easy to use and made of high quality materials, Phoenix Contact Jumper Bars are a reliable choice for efficient and safe electrical connections.
Buy Phoenix Contact Jumper Bars
RS Stock No.:
855-2767
Mfr. Part No.:
1984196
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Product Type

Pluggable Terminal Block

Number of Contacts

5

Pitch

3.5mm

Current

6A

Number of Rows

1

Housing Material

Polyamide

Minimum Wire Size mm²

0.2mm²

Maximum Wire Size mm²

1.5mm²

Minimum Wire Size AWG

16 AWG

Maximum Wire Size AWG

26 AWG

Colour

Green

Wire Connection Method

Screw

Voltage

200 V

Standards/Approvals

EU RoHS, CHINA RoHS, CSA, cULus, EU REACH SVHC

Width

17.5 mm

Length

14.6mm

Series

PT 1.5/ 5-PVH-3.5-A

Depth

11mm

COO (Country of Origin):
DE
PCB connector, nominal cross section: 1.5 mm², color: green, nominal current: 6 A, rated voltage (III/2): 200 V, contact surface: Tin, type of contact: Female connector, Number of potentials: 5, Number of rows: 1, Number of positions per row: 5, number of connections: 5, product range: PT 1,5/..-PVH-A, pitch: 3.5 mm, connection method: Screw connection with wire protector, conductor/PCB connection direction: 0 °, Stecksystem: COMBICON COMPACT PST 1, Locking: without, type of packaging: packed in cardboard
