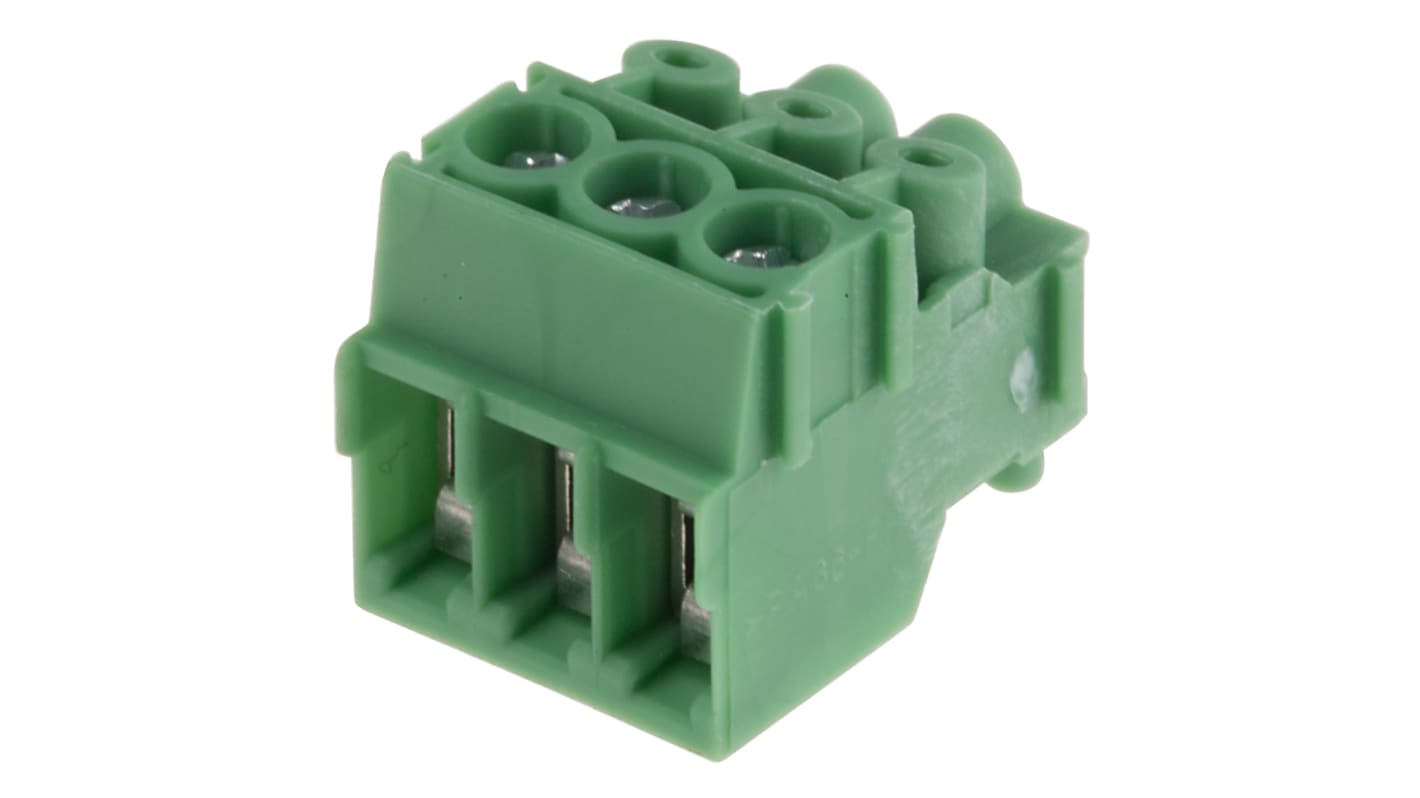

Phoenix Contact PT 1.5/3-PVH-3.5 Series Pluggable Terminal Block, 3-Contact, 3.5 mm Pitch, 1 Row, 1984028
- RS Stock No.:
- 468-0896
- Mfr. Part No.:
- 1984028
- Brand:
- Phoenix Contact
Bulk discount available
Subtotal (1 pack of 5 units)*
£6.12
(exc. VAT)
£7.345
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 915 unit(s) shipping from 16 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 120 | £1.224 | £6.12 |
| 125 - 370 | £1.102 | £5.51 |
| 375 - 995 | £1.046 | £5.23 |
| 1000 - 1995 | £0.922 | £4.61 |
| 2000 + | £0.858 | £4.29 |
*price indicative
- RS Stock No.:
- 468-0896
- Mfr. Part No.:
- 1984028
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Pluggable Terminal Block | |
| Number of Contacts | 3 | |
| Pitch | 3.5mm | |
| Current | 13.5A | |
| Number of Rows | 1 | |
| Minimum Wire Size mm² | 0.2mm² | |
| Housing Material | Polyamide | |
| Maximum Wire Size mm² | 1.5mm² | |
| Connector Gender | Female | |
| Minimum Wire Size AWG | 26 AWG | |
| Maximum Wire Size AWG | 16 AWG | |
| Orientation | Horizontal | |
| Colour | Green | |
| Wire Connection Method | Screw | |
| Voltage | 400 V | |
| Series | PT 1.5/3-PVH-3.5 | |
| Length | 11mm | |
| Standards/Approvals | No | |
| Width | 10.5 mm | |
| Depth | 11mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Pluggable Terminal Block | ||
Number of Contacts 3 | ||
Pitch 3.5mm | ||
Current 13.5A | ||
Number of Rows 1 | ||
Minimum Wire Size mm² 0.2mm² | ||
Housing Material Polyamide | ||
Maximum Wire Size mm² 1.5mm² | ||
Connector Gender Female | ||
Minimum Wire Size AWG 26 AWG | ||
Maximum Wire Size AWG 16 AWG | ||
Orientation Horizontal | ||
Colour Green | ||
Wire Connection Method Screw | ||
Voltage 400 V | ||
Series PT 1.5/3-PVH-3.5 | ||
Length 11mm | ||
Standards/Approvals No | ||
Width 10.5 mm | ||
Depth 11mm | ||
Phoenix Contact PT 1.5 PCB Terminal Blocks
A range of green, Phoenix Contact terminal blocks from the PT 1.5 range.
The through-hole terminal blocks are used to secure and terminate wires. Individual terminals use a screw to tighten the wire to make an electrical connection.
Features and Benefits
• Maximum contact force gives low-temperature rise
• High capacity thanks to the rectangular block space
• Can accommodate a wide range of wire sizes
• Reliable connection provided
• Various numbers of positions can be combined due to the latching on the sides
• 3.5 mm and 5 mm pitch available
