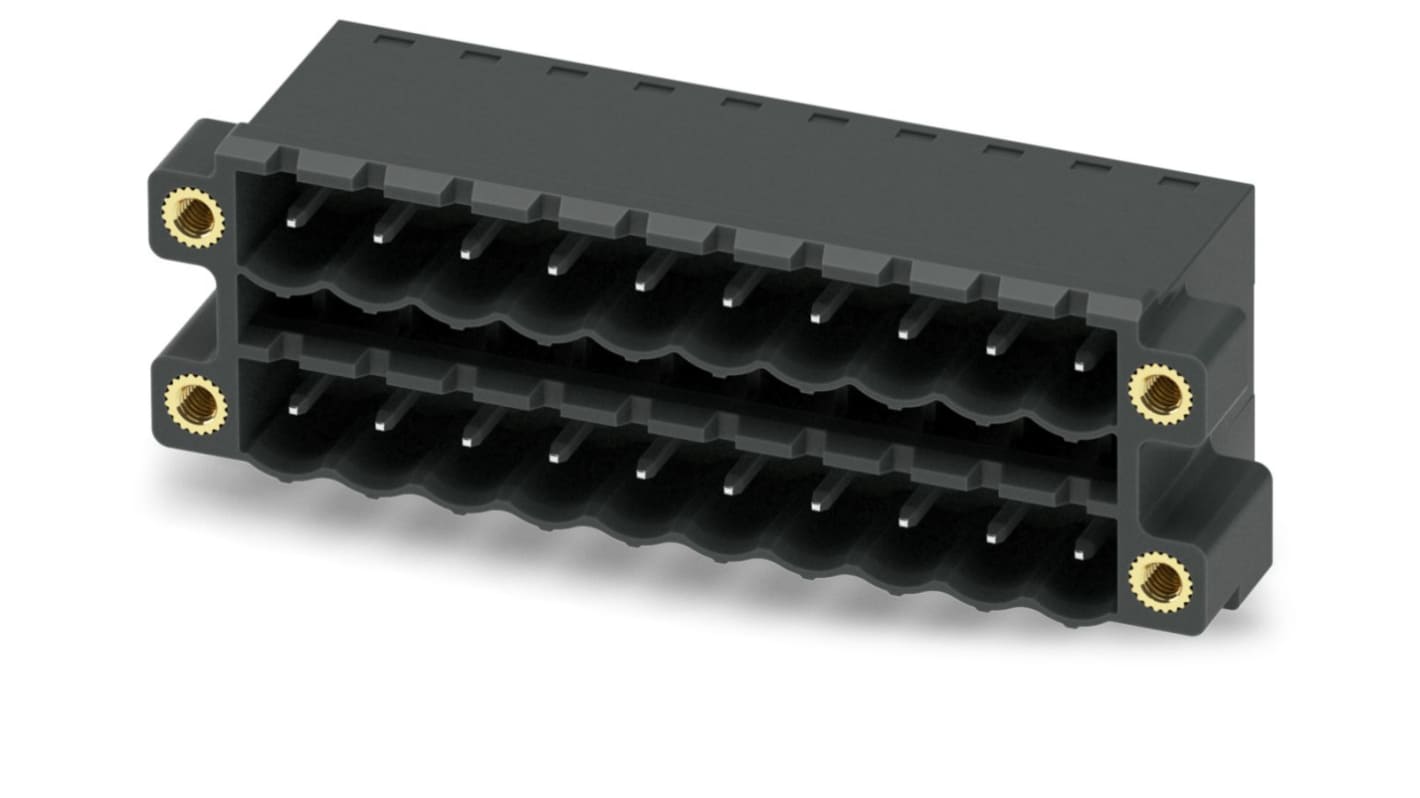

Phoenix Contact 5.08mm Pitch 10 Way Right Angle Pluggable Terminal Block, Header, Through Hole, Solder Termination
- RS Stock No.:
- 855-0314
- Mfr. Part No.:
- 1753381
- Brand:
- Phoenix Contact
Available to back order for despatch 02/07/2024
Added
Price Each (In a Box of 50)
£8.416
(exc. VAT)
£10.099
(inc. VAT)
| Units | Per unit | Per Box* |
| 50 + | £8.416 | £420.80 |
| *price indicative | ||
- RS Stock No.:
- 855-0314
- Mfr. Part No.:
- 1753381
- Brand:
- Phoenix Contact
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
PCB headers, nominal cross section: 2.5 mm², color: black, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Male connector, Number of potentials: 20, Number of rows: 2, Number of positions per row: 10, number of connections: 20, product range: CCDN 2,5/..-G1F-THR, pitch: 5.08 mm, mounting: THR soldering, pin layout: Linear pinning, solder pin [P]: 2.6 mm, Stecksystem: CLASSIC COMBICON, Locking: Screw locking, type of packaging: packed in cardboard
Specifications
Attribute | Value |
|---|---|
| Pluggable Terminal Block Type | Header |
| Number of Contacts | 10 |
| Pitch | 5.08mm |
| Series | CCDN 2.5/10-G1F-5.08 P26 THR |
| Number of Rows | 2 |
| Body Orientation | Right Angle |
| Mounting Type | Through Hole |
| Termination Method | Solder |
| Current Rating | 12.0A |
| Voltage Rating | 400.0 V |
| Contact Material | Tin |
