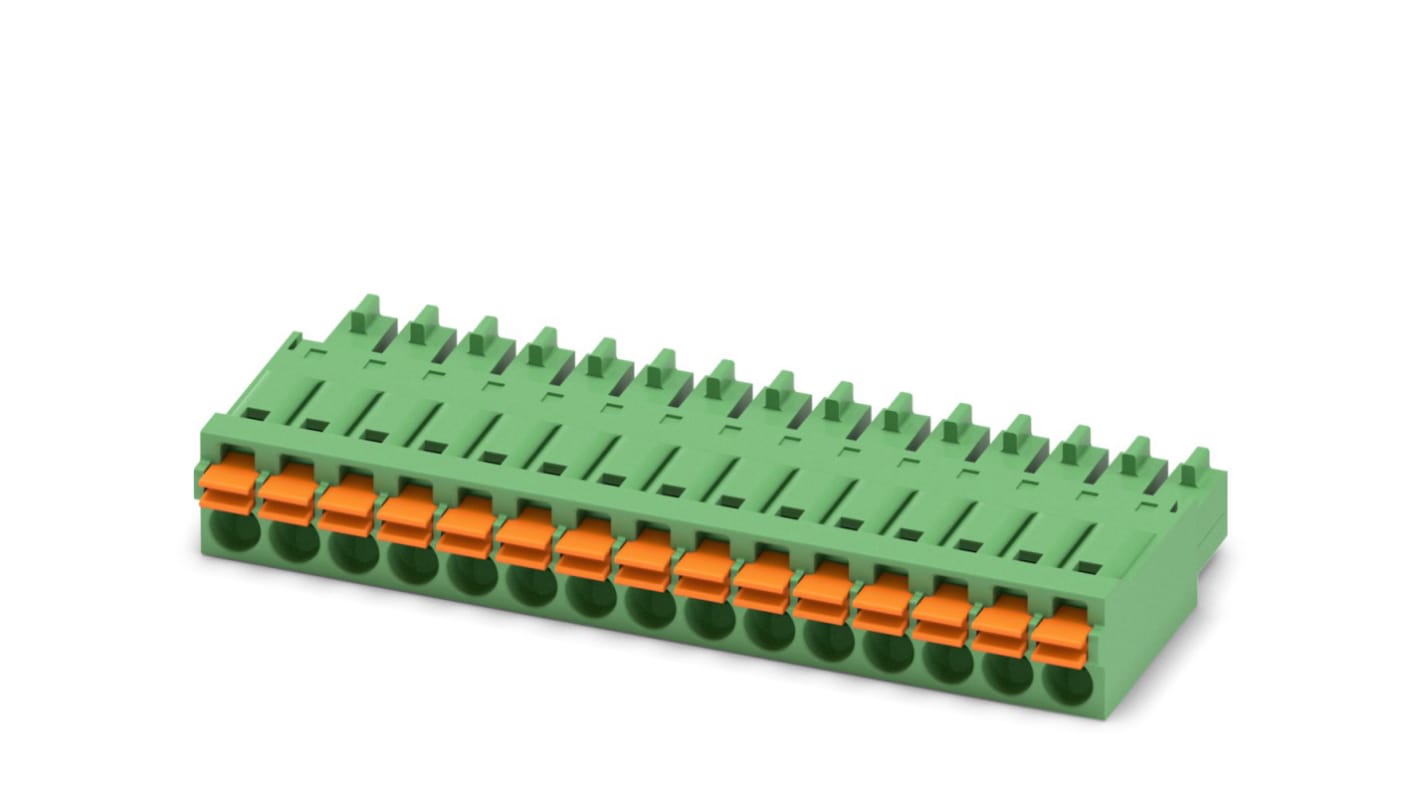

Phoenix Contact 3.5mm Pitch 15 Way Pluggable Terminal Block, Plug, Cable Mount, Spring Cage Termination
- RS Stock No.:
- 854-0705
- Mfr. Part No.:
- 1952393
- Brand:
- Phoenix Contact
Price Each (In a Box of 50)
£8.719
(exc. VAT)
£10.463
(inc. VAT)
Available to back order for despatch 28/08/2024
Units | Per unit | Per Box* |
|---|---|---|
| 50 + | £8.719 | £435.95 |
*price indicative
- RS Stock No.:
- 854-0705
- Mfr. Part No.:
- 1952393
- Brand:
- Phoenix Contact
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
PCB connector, nominal cross section: 1.5 mm², color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Tin, type of contact: Female connector, Number of potentials: 15, Number of rows: 1, Number of positions per row: 15, number of connections: 15, product range: FMC 1,5/..-ST, pitch: 3.5 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, Stecksystem: MINI COMBICON, Locking: without, type of packaging: packed in cardboard
Specifications
Attribute | Value |
|---|---|
| Pluggable Terminal Block Type | Plug |
| Number of Contacts | 15 |
| Pitch | 3.5mm |
| Series | FMC 1.5/15-ST-3.5 |
| Number of Rows | 1 |
| Body Orientation | Straight |
| Mounting Type | Cable Mount |
| Termination Method | Spring Cage |
| Current Rating | 8A |
| Voltage Rating | 320 V |
| Colour | Green |
| Material | Polyamide, Tin |
