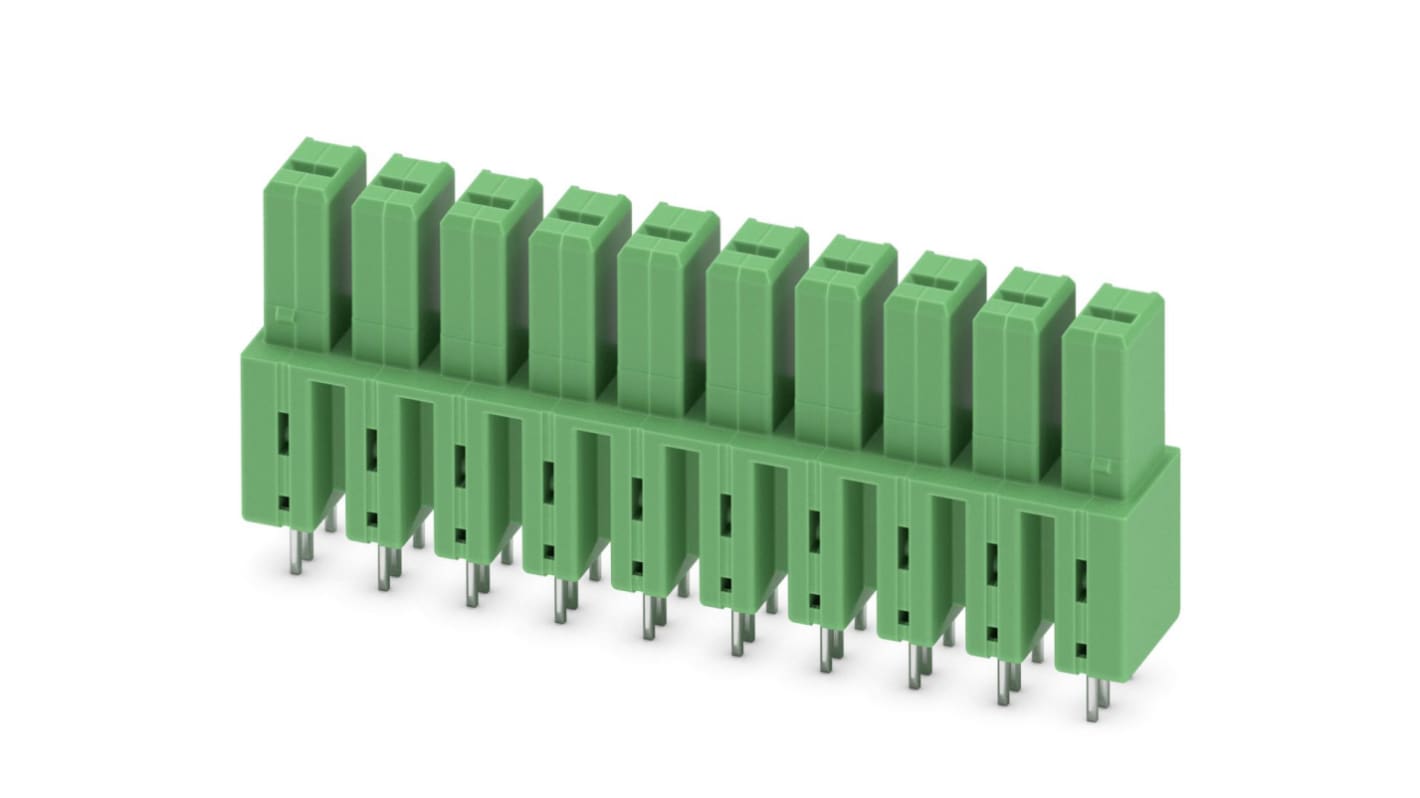

Phoenix Contact, 7.62mm Pitch, IPCV 5/10-G-7.62, 10 Way, , Pluggable Terminal Block, Inverted Header, Through Hole,
- RS Stock No.:
- 853-5166
- Mfr. Part No.:
- 1708909
- Brand:
- Phoenix Contact
Subtotal (1 box of 50 units)*
£600.65
(exc. VAT)
£720.80
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 28 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
---|---|---|
50 + | £12.013 | £600.65 |
*price indicative
- RS Stock No.:
- 853-5166
- Mfr. Part No.:
- 1708909
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Pluggable Terminal Block Type | Inverted Header | |
Number of Contacts | 10 | |
Pitch | 7.62mm | |
Series | IPCV 5/10-G-7.62 | |
Number of Rows | 1 | |
Body Orientation | Straight | |
Mounting Type | Through Hole | |
Termination Method | Solder | |
Current Rating | 41.0A | |
Voltage Rating | 1.0 kV | |
Contact Material | Tin | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Pluggable Terminal Block Type Inverted Header | ||
Number of Contacts 10 | ||
Pitch 7.62mm | ||
Series IPCV 5/10-G-7.62 | ||
Number of Rows 1 | ||
Body Orientation Straight | ||
Mounting Type Through Hole | ||
Termination Method Solder | ||
Current Rating 41.0A | ||
Voltage Rating 1.0 kV | ||
Contact Material Tin | ||
- COO (Country of Origin):
- DE
PCB headers, nominal cross section: 6 mm², color: green, nominal current: 41 A, rated voltage (III/2): 630 V, contact surface: Tin, type of contact: Female connector, Number of potentials: 10, Number of rows: 1, Number of positions per row: 10, number of connections: 10, product range: IPCV 5/..-G, pitch: 7.62 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 5 mm, Stecksystem: POWER COMBICON 5, Locking: without, type of packaging: packed in cardboard
