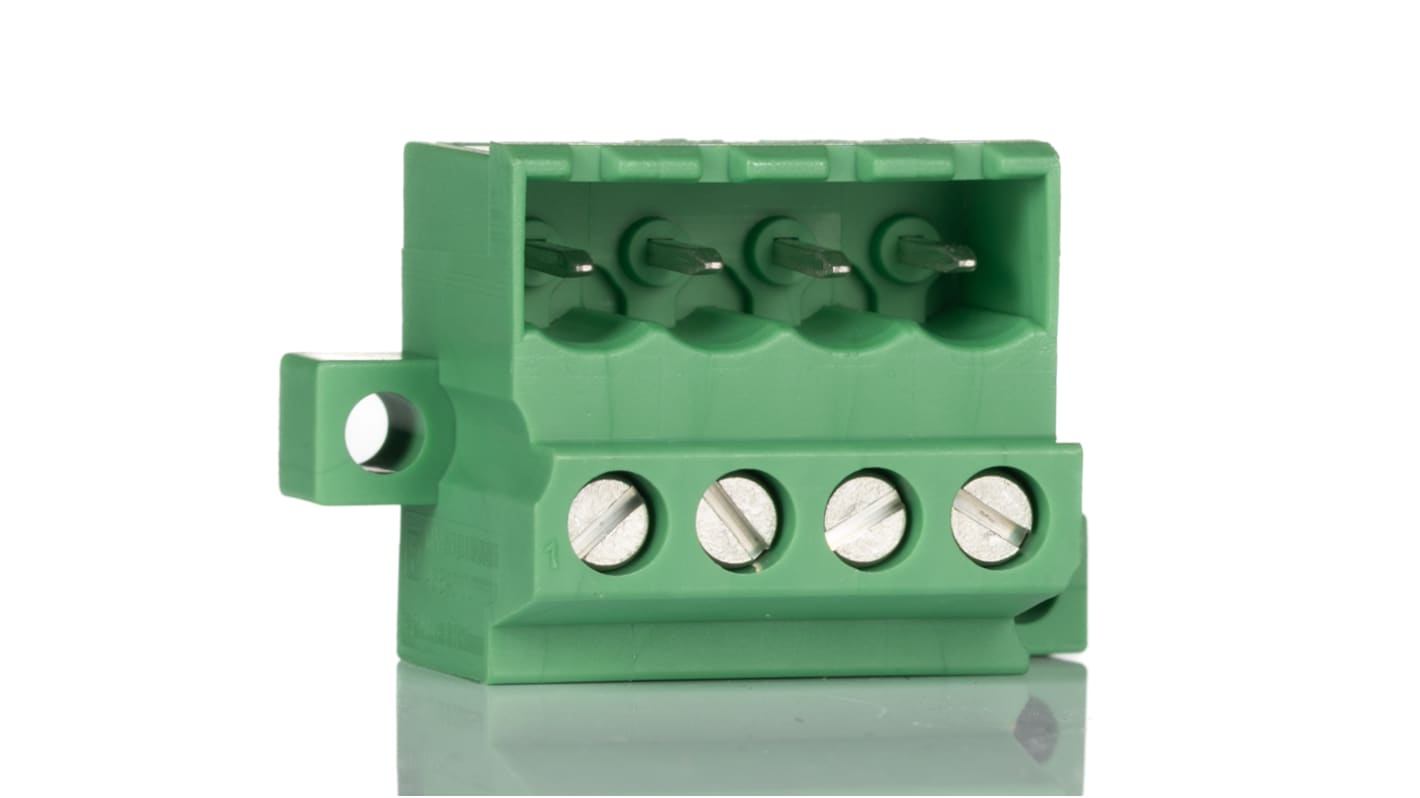

Phoenix Contact, 5.08mm Pitch, MVSTBU 2.5/4-GB-5.08, 4 Way, , Pluggable Terminal Block, Header, Cable Mount, Screw
- RS Stock No.:
- 804-2790
- Mfr. Part No.:
- 1788554
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£212.20
(exc. VAT)
£254.65
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 150 unit(s) ready to ship
- Plus 300 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
50 + | £4.244 | £212.20 |
*price indicative
- RS Stock No.:
- 804-2790
- Mfr. Part No.:
- 1788554
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Pluggable Terminal Block Type | Header | |
Number of Contacts | 4 | |
Pitch | 5.08mm | |
Series | MVSTBU 2.5/4-GB-5.08 | |
Number of Rows | 1 | |
Body Orientation | Straight | |
Mounting Type | Cable Mount | |
Termination Method | Screw | |
Current Rating | 12A | |
Voltage Rating | 630 V | |
Colour | Green | |
Material | Polyamide | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Pluggable Terminal Block Type Header | ||
Number of Contacts 4 | ||
Pitch 5.08mm | ||
Series MVSTBU 2.5/4-GB-5.08 | ||
Number of Rows 1 | ||
Body Orientation Straight | ||
Mounting Type Cable Mount | ||
Termination Method Screw | ||
Current Rating 12A | ||
Voltage Rating 630 V | ||
Colour Green | ||
Material Polyamide | ||
- COO (Country of Origin):
- PL
Phoenix Contact Pluggable Terminal Block, 12A Current Rating, 320V Voltage Rating - MVSTBU 2.5/4-GB-5.08 - 1788554
Use this pluggable terminal block from Phoenix Contact as a power distribution solution for your PCB-linked components. It has copper contacts with high conductivity and low resistance, so you get a connection you can trust. As the contacts are also tin-plated to improve corrosion resistance, they won't fall foul of environmental elements, even in rugged industrial environments.
Screw connection terminals make it easy to link cables to this unit and give you a secure coupling that stands fast in vibrating systems. The terminal block can handle up to 4kV of surge voltage, so you won't get caught unawares by sudden power spikes. It handles cables with commonly used cross-sections ranging from 24 to 12AWG, making it a versatile connection solution in sectors such as process manufacturing and packaging.
Screw connection terminals make it easy to link cables to this unit and give you a secure coupling that stands fast in vibrating systems. The terminal block can handle up to 4kV of surge voltage, so you won't get caught unawares by sudden power spikes. It handles cables with commonly used cross-sections ranging from 24 to 12AWG, making it a versatile connection solution in sectors such as process manufacturing and packaging.
Features & Benefits
• 12A current rating makes it suitable for medium-current-consuming applications
• Polyamide housing serves as an insulator to prevent electric shocks and improve safety
• UL94V0 rating means that it's flame-resistant as it stops burning in 10 seconds or less in the event of a fire
• Polyamide housing serves as an insulator to prevent electric shocks and improve safety
• UL94V0 rating means that it's flame-resistant as it stops burning in 10 seconds or less in the event of a fire
