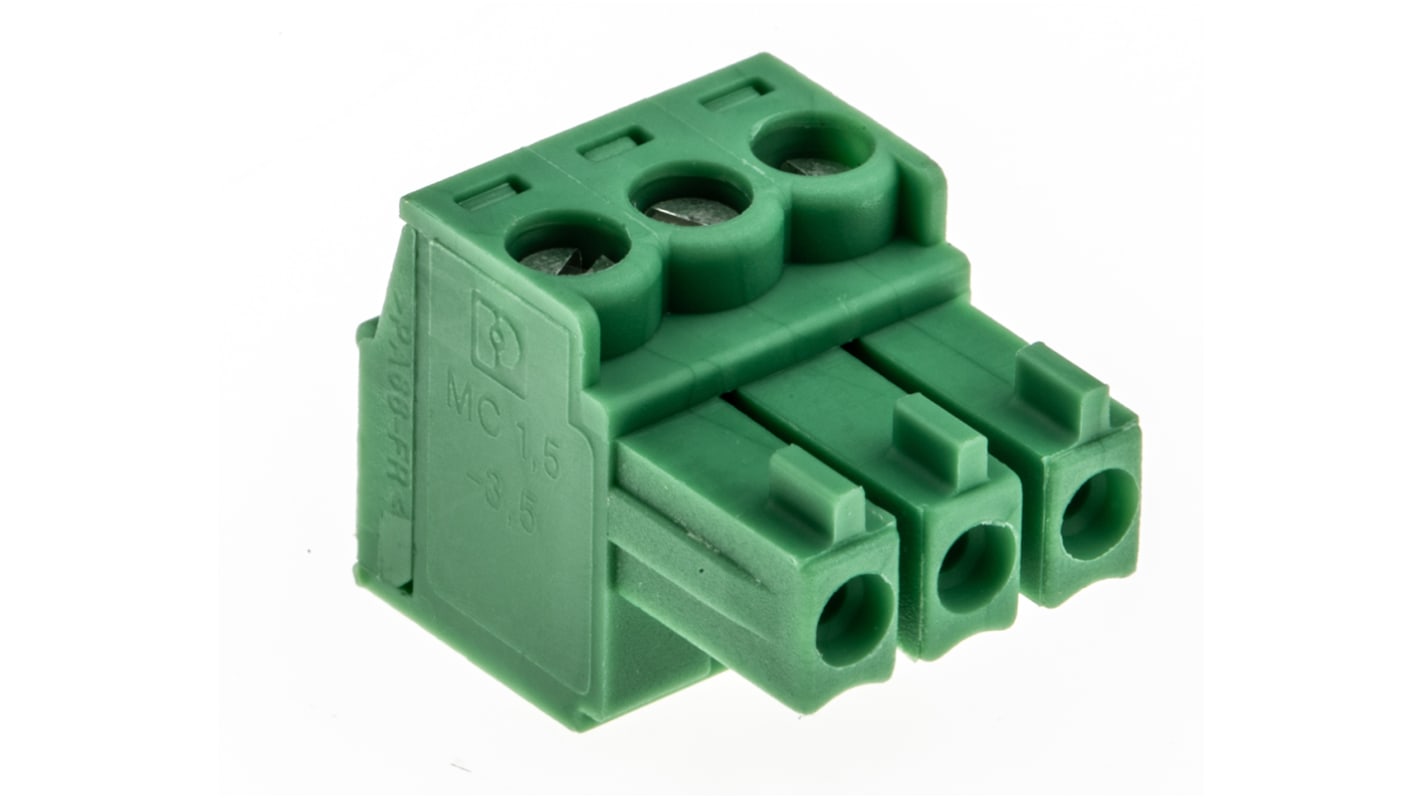

Phoenix Contact, 3.5mm Pitch, MC 1.5/3-ST-3.5, 3 Way, Pluggable Terminal Block, Plug, Cable Mount, Screw Termination,

RS Stock No.:: 804-2103
Distrelec Article No.:: 301-07-668
Mfr. Part No.:: 1840379
Brand:: Phoenix Contact

Phoenix Contact, 3.5mm Pitch, MC 1.5/3-ST-3.5, 3 Way, Pluggable Terminal Block, Plug, Cable Mount, Screw Termination,

Bulk discount available

Price Each**

£3.19

(exc. VAT)

£3.83

(inc. VAT)

376 In stock - FREE next working day delivery available*

227 available from Europe for delivery within 2 working day(s).

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Units	Per unit
1 - 9	£3.19
10 - 24	£2.86
25 - 49	£2.59
50 - 99	£2.32
100 +	£2.10

**price indicative

RS Stock No.:: 804-2103
Distrelec Article No.:: 301-07-668
Mfr. Part No.:: 1840379
Brand:: Phoenix Contact

Phoenix Contact MINI COMBICON MC 3.5mm Terminal Block Plug Connectors

The 1840379 from Phoenix Contact is a brilliant and well-known PCB terminal block. It comes from Phoenix's brilliant range of 'MINI COMBICON MC' connectors and has a 3.5mm pitch, 0.14 – 1.5mm2 screw connection and horizontal wire entry. This PCB terminal block is massively versatile and allows connection of many products due to is worldwide known connection method and features a minimal temperature rise thank to its maximum contact force.

Features and benefits:

Nominal current of 8A

3.5mm pitch

Screw-in connection method for a tight connection

Low temperature rise

Up-to 1.5 mm2 wire

Accessories:

Mating plugs - 804-2248, 804-2257 and 804-2201.

Screwdriver – 648-5801

Phoenix Contact MC 1.5/ 3-ST-3.5 Series Pluggable Terminal Block, 3.5mm Pitch, Screw Termination Method - 1840379

This pluggable terminal block is designed for effective connections in automation and electrical applications. Featuring a 3-pole configuration and a sturdy screw terminal design, it ensures reliable connections for varying conductor sizes. This component serves as a practical solution in a range of electrical installations across industries.

Features & Benefits

• Green polyamide construction enhances durability
• Screw connection method secures conductor attachment
• 3.5mm pitch accommodates diverse configurations
• Supports a maximum current rating of 8A for high-current applications
• Compatible with both flexible and rigid conductor connections
• Facilitates easy installation using tension sleeve technology

Applications

• Utilised in PCB connections for electrical devices
• Employed in control cabinets for various electrical systems
• Suitable for wiring in industrial machinery and automation systems
• Applicable in power distribution units and panels

What is the maximum conductor size I can use with it?

It accommodates rigid conductors from 0.14 to 1.5mm², including flexible variations.

Can it handle outdoor installations?

While intended primarily for indoor use, ensure environmental conditions are compatible with ambient temperature ratings.

Is it suitable for high-frequency applications?

For standard operations, it performs adequately

however, for specific high-frequency usage, consider the overall design of your system.

How do I ensure a proper fit during installation?

Ensure the correct stripping length for conductors and verify tension sleeve engagement for secure connections.

What tools are necessary for installation?

A slotted screwdriver is recommended for securely attaching conductors to the terminal block.

Phoenix Contact MINI COMBICON 3.5mm Two Part Terminal Blocks

Attribute	Value
Pluggable Terminal Block Type	Plug
Number of Contacts	3
Pitch	3.5mm
Series	MC 1.5/3-ST-3.5
Number of Rows	1
Body Orientation	Straight
Mounting Type	Cable Mount
Termination Method	Screw
Current Rating	8A
Voltage Rating	320 V
Colour	Green
Contact Material	Copper Alloy
Material	Polyamide
Contact Plating	Tin
