Phoenix Contact PTSM 0.5/2-P-2.5 WH Series Pluggable Terminal Block, 2-Contact, 2.5 mm Pitch, 1 Row, 1704853
- RS Stock No.:
- 801-9822
- Mfr. Part No.:
- 1704853
- Brand:
- Phoenix Contact

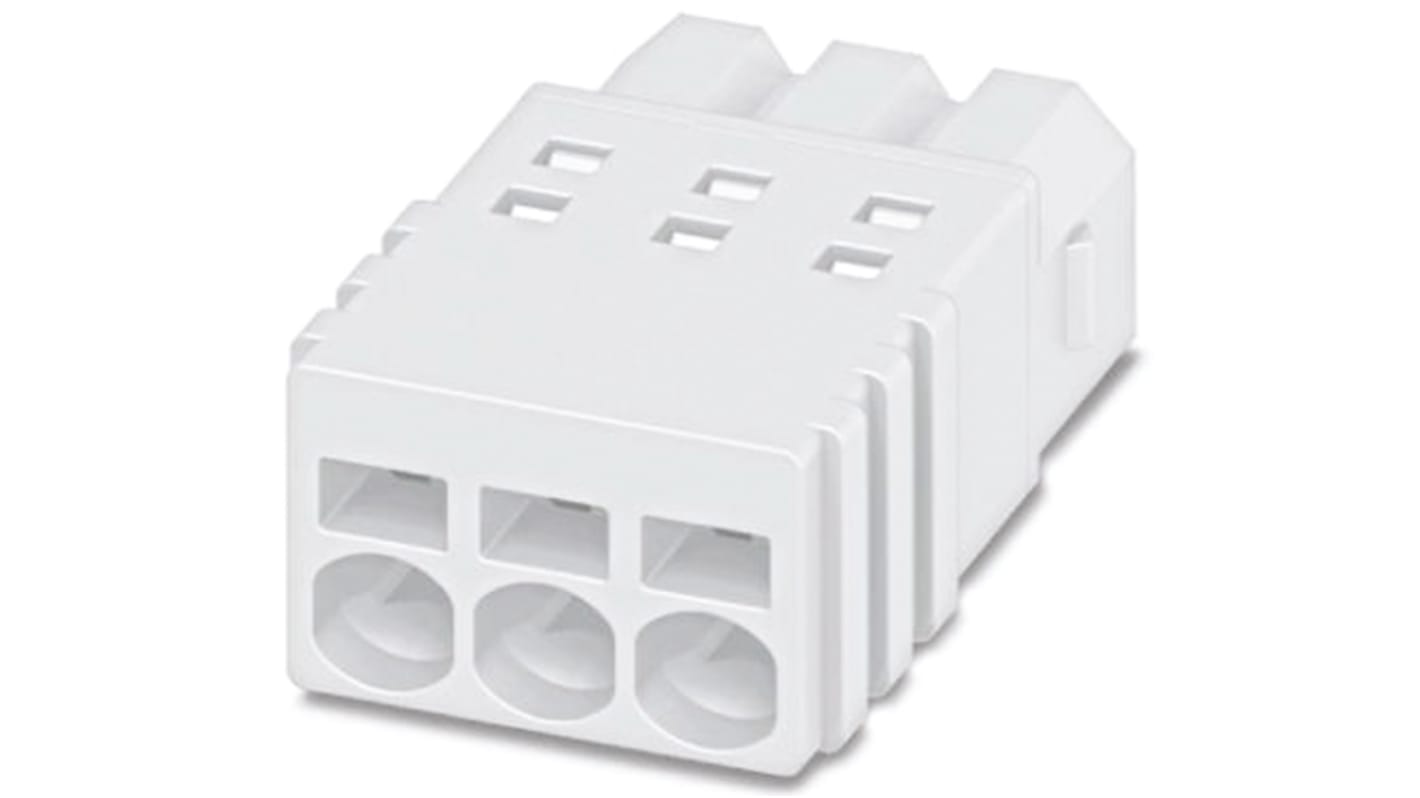

Image representative of range
Bulk discount available
Subtotal (1 unit)*
£0.67
(exc. VAT)
£0.80
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 250 unit(s) shipping from 09 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £0.67 |
| 25 - 49 | £0.65 |
| 50 - 99 | £0.64 |
| 100 - 249 | £0.62 |
| 250 + | £0.60 |
*price indicative
- RS Stock No.:
- 801-9822
- Mfr. Part No.:
- 1704853
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 2 | |
| Product Type | Pluggable Terminal Block | |
| Pitch | 2.5mm | |
| Current | 6A | |
| Number of Rows | 1 | |
| Housing Material | Polyamide | |
| Minimum Wire Size mm² | 0.14mm² | |
| Connector Gender | Female | |
| Maximum Wire Size mm² | 0.5mm² | |
| Minimum Wire Size AWG | 26 AWG | |
| Maximum Wire Size AWG | 20 AWG | |
| Orientation | Straight | |
| Colour | White | |
| Wire Connection Method | Push-in Spring | |
| Voltage | 160 V | |
| Length | 15mm | |
| Depth | 5mm | |
| Width | 6.1 mm | |
| Series | PTSM 0.5/2-P-2.5 WH | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 2 | ||
Product Type Pluggable Terminal Block | ||
Pitch 2.5mm | ||
Current 6A | ||
Number of Rows 1 | ||
Housing Material Polyamide | ||
Minimum Wire Size mm² 0.14mm² | ||
Connector Gender Female | ||
Maximum Wire Size mm² 0.5mm² | ||
Minimum Wire Size AWG 26 AWG | ||
Maximum Wire Size AWG 20 AWG | ||
Orientation Straight | ||
Colour White | ||
Wire Connection Method Push-in Spring | ||
Voltage 160 V | ||
Length 15mm | ||
Depth 5mm | ||
Width 6.1 mm | ||
Series PTSM 0.5/2-P-2.5 WH | ||
Standards/Approvals No | ||
Phoenix Contact COMBICON PTSM 2.5mm Terminal Block Plug Connectors
This range of the PTSM family Phoenix Contact PCB Terminal Blocks with 2.5 mm Pitch are compact low-profile single piece Wire to Board connectors.
2.5 mm pitch
Wire to Board
Spring cage connection
White
