- RS Stock No.:
- 468-0953
- Mfr. Part No.:
- 1933325
- Brand:
- Phoenix Contact
45 In stock - FREE next working day delivery available
10 available from Europe for delivery within 2 working day(s).
Price Each (In a Pack of 5)
£1.612
(exc. VAT)
£1.934
(inc. VAT)
Units | Per unit | Per Pack* |
---|---|---|
5 - 70 | £1.612 | £8.06 |
75 - 245 | £1.452 | £7.26 |
250 - 495 | £1.354 | £6.77 |
500 + | £1.318 | £6.59 |
*price indicative
- RS Stock No.:
- 468-0953
- Mfr. Part No.:
- 1933325
- Brand:
- Phoenix Contact
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

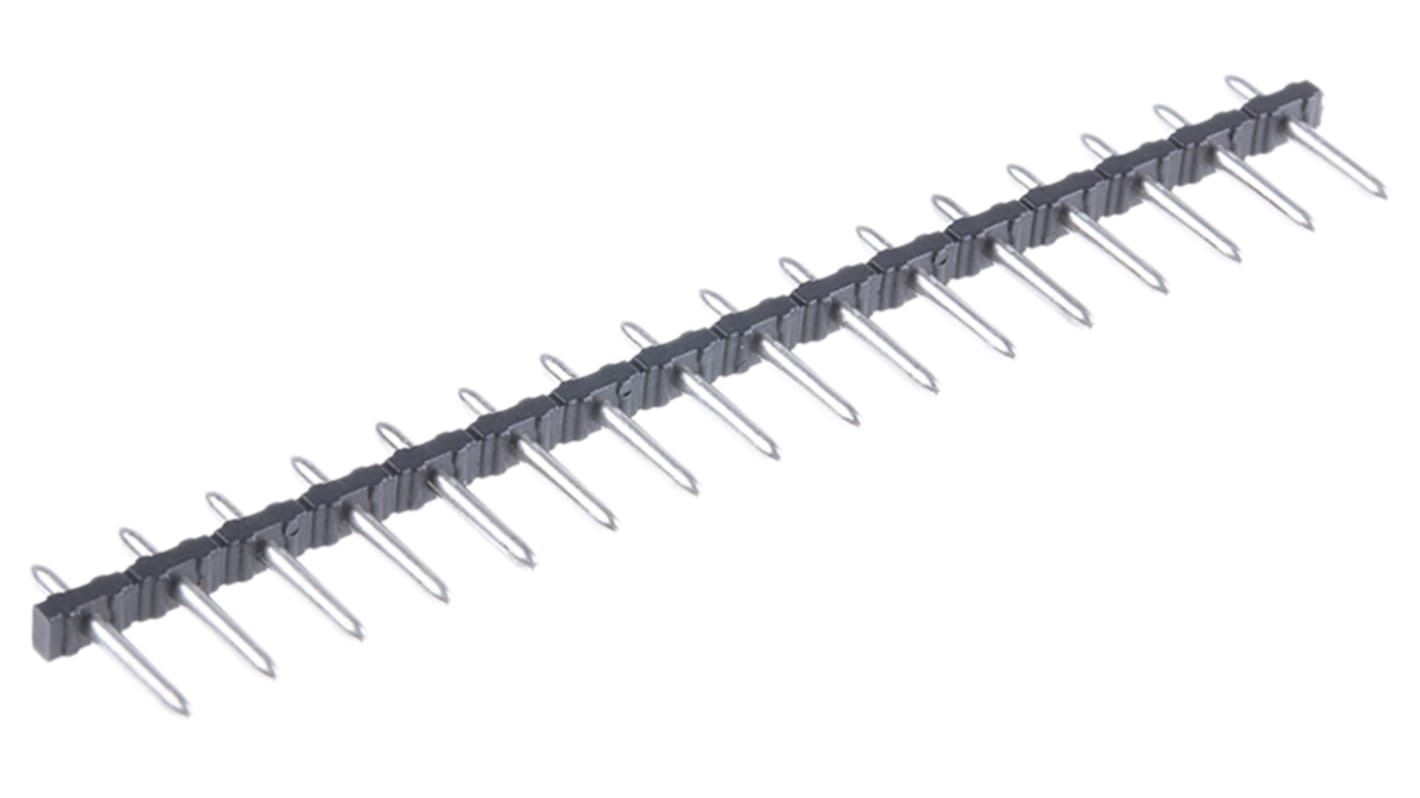

Phoenix Contact COMBICON Compact PST 5.0mm Terminal Block Pin Headers
2-part 5.0mm pitch screw terminal blocks that may be fitted in a horizontal or vertical plane to a PCB
Rated at 12A/250V for solid and flexible wires of 0.2 to 2.5mm² csa (26-14awg)
Flammability rating UL94V-0
Available in 2, 3, and 4-ways
The 16-way pin strip may be snapped to the number of ways required
Rated at 12A/250V for solid and flexible wires of 0.2 to 2.5mm² csa (26-14awg)
Flammability rating UL94V-0
Available in 2, 3, and 4-ways
The 16-way pin strip may be snapped to the number of ways required
Phoenix Contact COMBICON 5.0mm Two Part Terminal Blocks
Specifications
Attribute | Value |
---|---|
Pluggable Terminal Block Type | Pin Header |
Number of Contacts | 16 |
Pitch | 5.0mm |
Series | COMBICON |
Number of Rows | 1 |
Body Orientation | Straight |
Termination Method | Solder |
Current Rating | 16.0A |
Voltage Rating | 400.0 V |
