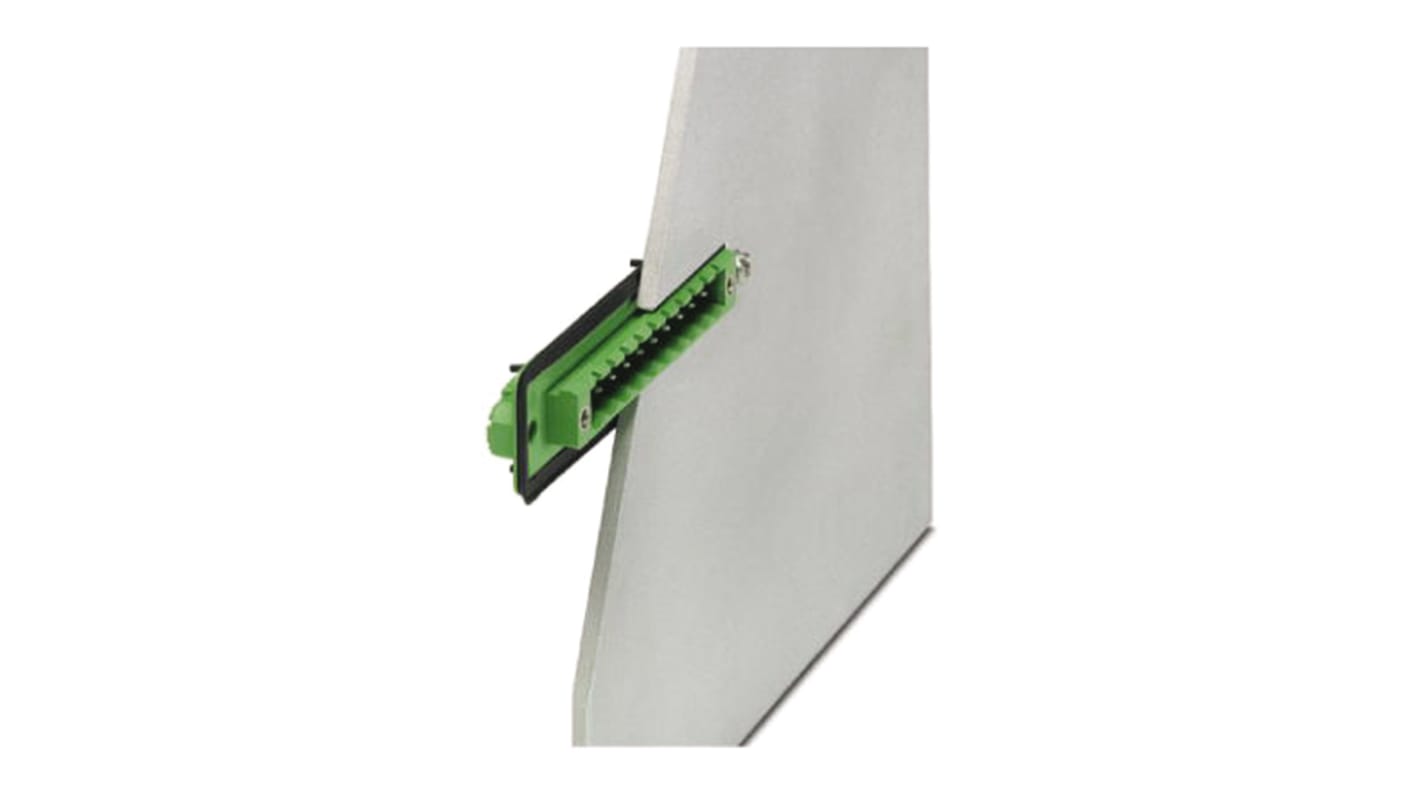

Phoenix Contact, 5.08mm Pitch, COMBICON, 2 Way, , Pluggable Terminal Block, Feed Through Header, Panel Mount, Through
- RS Stock No.:
- 858-2676
- Mfr. Part No.:
- 1899281
- Brand:
- Phoenix Contact
Subtotal (1 box of 50 units)*
£168.15
(exc. VAT)
£201.80
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
---|---|---|
50 + | £3.363 | £168.15 |
*price indicative
- RS Stock No.:
- 858-2676
- Mfr. Part No.:
- 1899281
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Pluggable Terminal Block Type | Feed Through Header | |
Number of Contacts | 2 | |
Pitch | 5.08mm | |
Series | COMBICON | |
Number of Rows | 1 | |
Body Orientation | Straight | |
Mounting Type | Panel Mount, Through Hole | |
Termination Method | Solder | |
Current Rating | 12.0A | |
Voltage Rating | 400.0 V | |
Contact Material | Tin | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Pluggable Terminal Block Type Feed Through Header | ||
Number of Contacts 2 | ||
Pitch 5.08mm | ||
Series COMBICON | ||
Number of Rows 1 | ||
Body Orientation Straight | ||
Mounting Type Panel Mount, Through Hole | ||
Termination Method Solder | ||
Current Rating 12.0A | ||
Voltage Rating 400.0 V | ||
Contact Material Tin | ||
- COO (Country of Origin):
- PL
Feed-through header, nominal cross section: 2.5 mm², color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Male connector, Number of potentials: 2, Number of rows: 1, Number of positions per row: 2, number of connections: 2, product range: DFK-MSTBVA 2,5/..-GF, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.9 mm, Stecksystem: CLASSIC COMBICON, Locking: Screw locking, type of packaging: packed in cardboard
