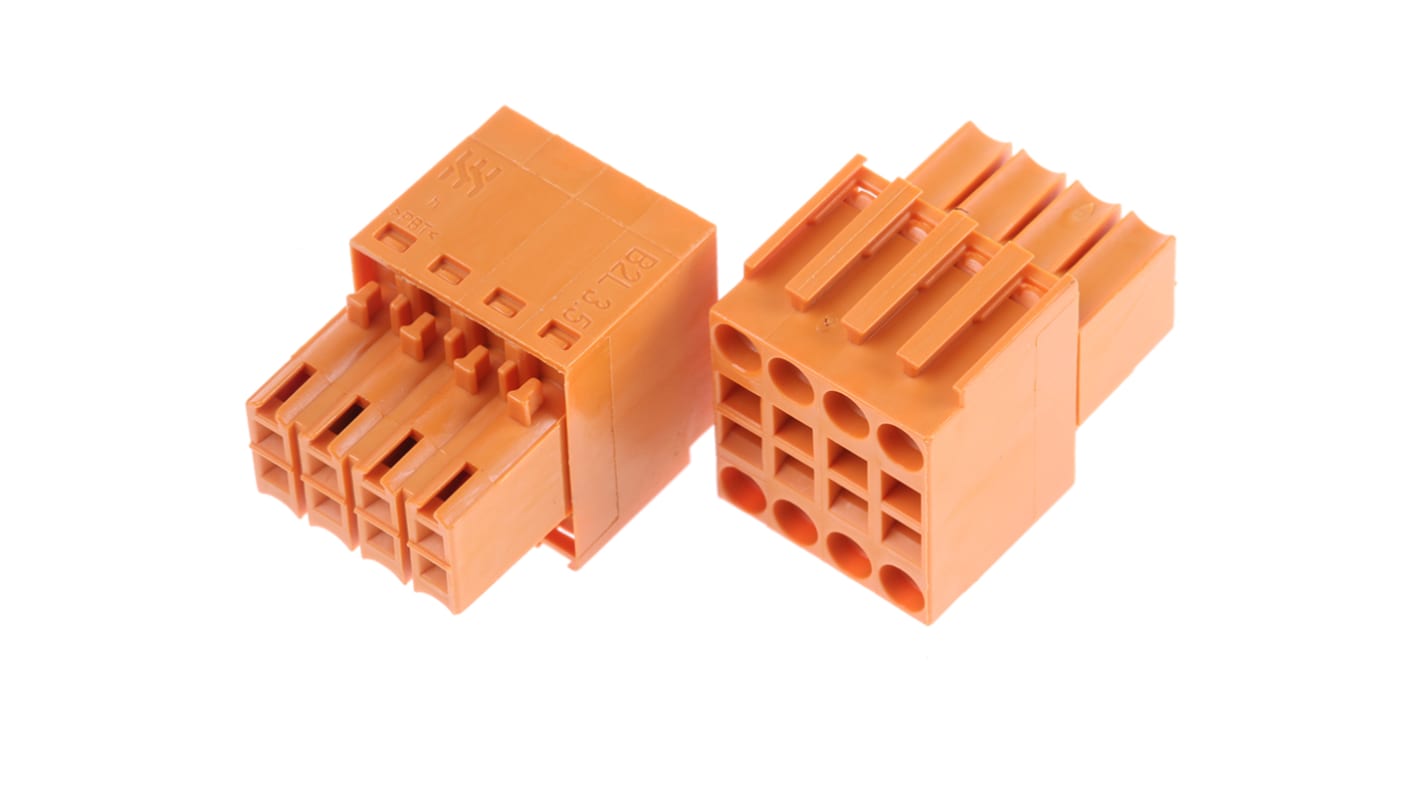

Weidmüller B2L 3.50 Series Pluggable Terminal Block, 8-Contact, 3.5 mm Pitch, 2 Row, 1727570000

View all Pluggable Terminal Blocks
Bulk discount available

Subtotal (1 pack of 5 units)*

£27.31

(exc. VAT)

£32.77

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later
Units
Per unit
Per Pack*
5 - 120£5.462£27.31
125 - 370£4.916£24.58
375 - 995£4.37£21.85
1000 - 1995£3.828£19.14
2000 +£3.73£18.65

*price indicative

RS Stock No.:
382-9602
Mfr. Part No.:
1727570000
Brand:
Weidmüller
Find similar products by selecting one or more attributes.
Select all

Brand

Weidmüller

Number of Contacts

8

Product Type

Pluggable Terminal Block

Pitch

3.5mm

Current

10.3A

Number of Rows

2

Minimum Wire Size mm²

2mm²

Housing Material

Polybutylene Terephthalate

Connector Gender

Male

Maximum Wire Size mm²

1mm²

Minimum Wire Size AWG

28 AWG

Maximum Wire Size AWG

16 AWG

Orientation

Straight

Colour

Orange

Wire Connection Method

Screw

Voltage

200V

Length

14mm

Standards/Approvals

No

Series

B2L 3.50

Width

15.7 mm

Depth

20.6mm

COO (Country of Origin):
DE

Double Density 2-Part PCB Connector, screwless


The Weidmüller B2L/S2L is a two part PCB connector, offering double density in standard 3.5mm pitch. Saves 30% space compared to connectors using 2.5mm or 2.54mm pitch

No special tooling required

Easy handling compared to 2.5 & 2.54 pitches

Highest available wiring density for single wires

3.5mm Pitch - Weidmüller Omnimate Range


The Weidmuller 3.50 mm pitch Omnimate Range is a cost effective, space saving solution for PCB applications with vertical or horizontal headers which solder directly onto the board.

Mating harness connectors in either tension clamp or rising clamp screw terminals

Headers with fully enclosed sides

Polarising pins available to prevent mismatch connections

Flammability Class UL94 V-0
