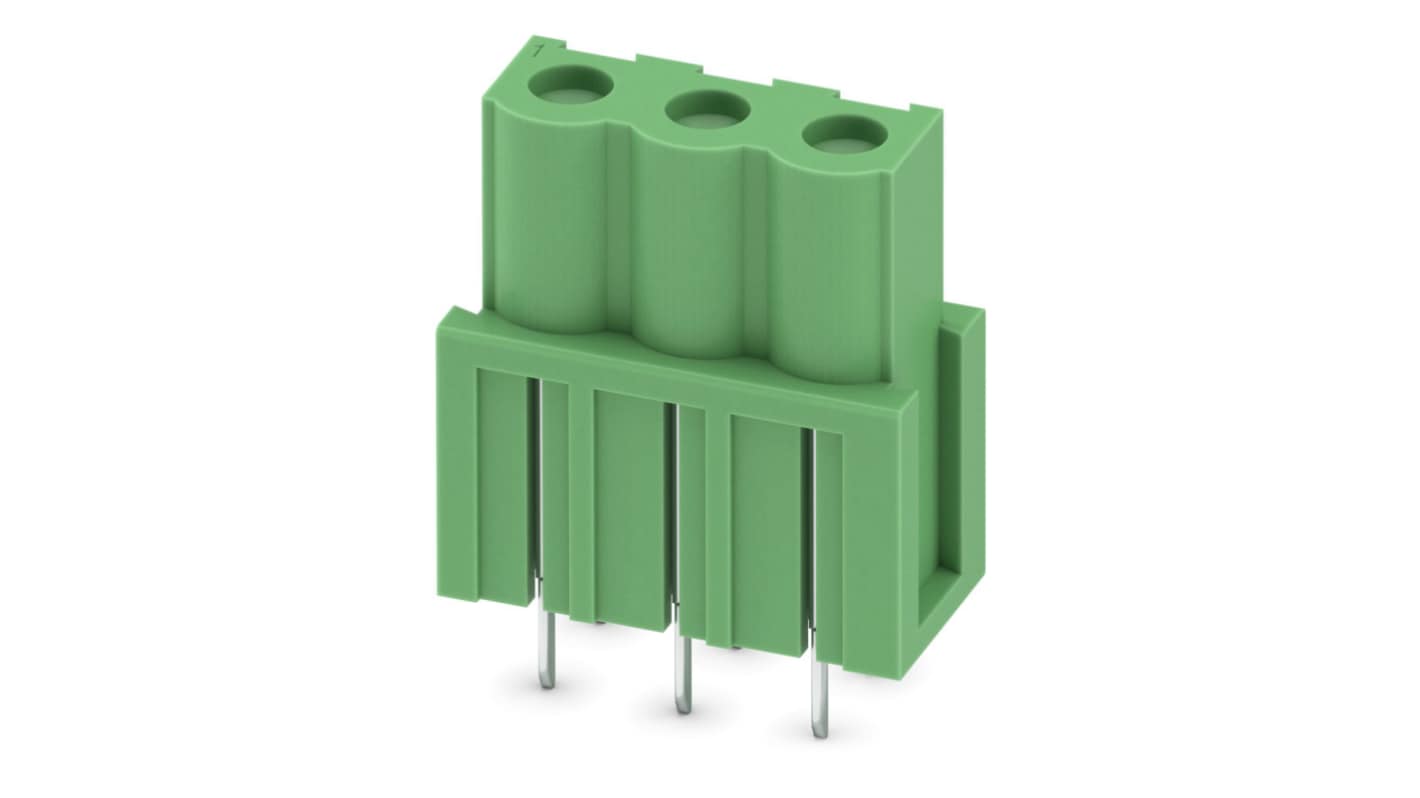

Phoenix Contact COMBICON ICV Series Pluggable Terminal Block, 3-Contact, 5.08 mm Pitch, 1 Row, 1785955
- RS Stock No.:
- 292-9307
- Mfr. Part No.:
- 1785955
- Brand:
- Phoenix Contact
Bulk discount available
Subtotal (1 pack of 5 units)*
£11.17
(exc. VAT)
£13.405
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 70 | £2.234 | £11.17 |
| 75 - 245 | £2.03 | £10.15 |
| 250 - 495 | £1.73 | £8.65 |
| 500 - 995 | £1.644 | £8.22 |
| 1000 + | £1.548 | £7.74 |
*price indicative
- RS Stock No.:
- 292-9307
- Mfr. Part No.:
- 1785955
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Pluggable Terminal Block | |
| Number of Contacts | 3 | |
| Pitch | 5.08mm | |
| Number of Rows | 1 | |
| Current | 12A | |
| Housing Material | Polyamide | |
| Connector Gender | Female | |
| Orientation | Straight | |
| Wire Connection Method | Solder | |
| Colour | Green | |
| Voltage | 320V | |
| Width | 17.24mm | |
| Series | COMBICON ICV | |
| Length | 10.2mm | |
| Standards/Approvals | CSA, CHINA RoHS, EU REACH SVHC, EU RoHS, cULus | |
| Depth | 22.4mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Pluggable Terminal Block | ||
Number of Contacts 3 | ||
Pitch 5.08mm | ||
Number of Rows 1 | ||
Current 12A | ||
Housing Material Polyamide | ||
Connector Gender Female | ||
Orientation Straight | ||
Wire Connection Method Solder | ||
Colour Green | ||
Voltage 320V | ||
Width 17.24mm | ||
Series COMBICON ICV | ||
Length 10.2mm | ||
Standards/Approvals CSA, CHINA RoHS, EU REACH SVHC, EU RoHS, cULus | ||
Depth 22.4mm | ||
- COO (Country of Origin):
- DE
Phoenix Contact CLASSIC COMBICON IC & ICV 5.08mm Inverted Headers
CLASSIC COMBICON IC & ICV 5.08mm pitch inverted PCB though hole mount terminal block headers rated at 12A / 250V (Class III), 630V (Class II). These CLASSIC COMBICON IC inverted pluggable terminal block headers provide a clear separation of PCB inputs/outputs and can be used with the MSTB 2,5 headers for a primary/secondary PCB connection.
Part numbers prefixed with 17864 (IC) and 17865 (IC) are right angle mount
Part numbers prefixed with 17859 (ICV) and 17860 (ICV) are vertical mount
Part numbers prefixed with 18251 (IC) are right angle mount with a threaded flange
For marker cards see stock numbers 437-3598, 804-0961 and 437-3605
